Antitheft and Alarm Systems: Testing and Inspection
Diagnosis Of Immobilizer Faults -
Communication between the ECM and the SMARTRA.
-
Function of the SMARTRA and the transponder.
-
Data (stored in the ECM related to the immobilizer function.

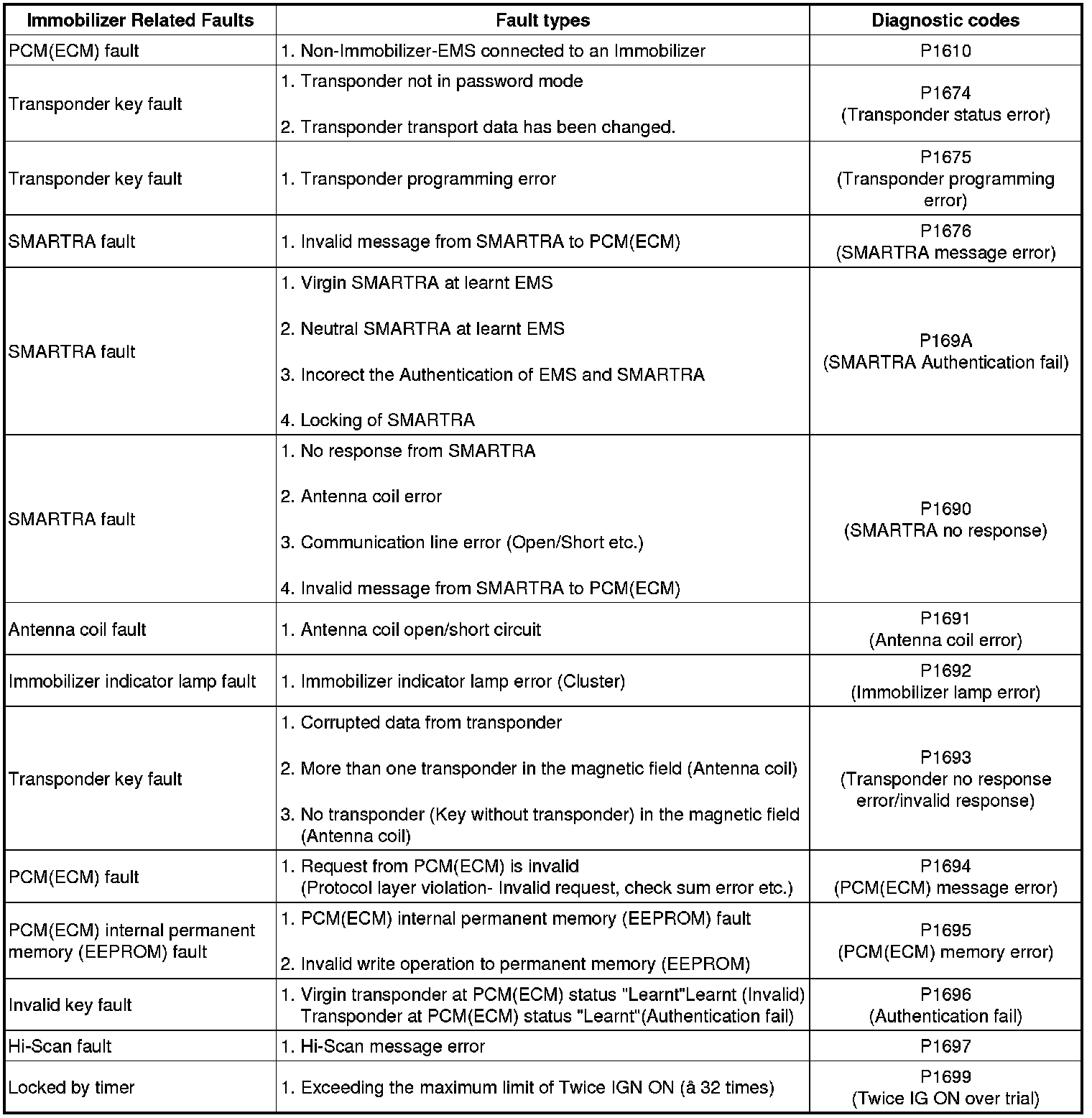

The following table shows the assignment of immobilizer related faults to each type:
