Electronic Throttle Actuator: Testing and Inspection

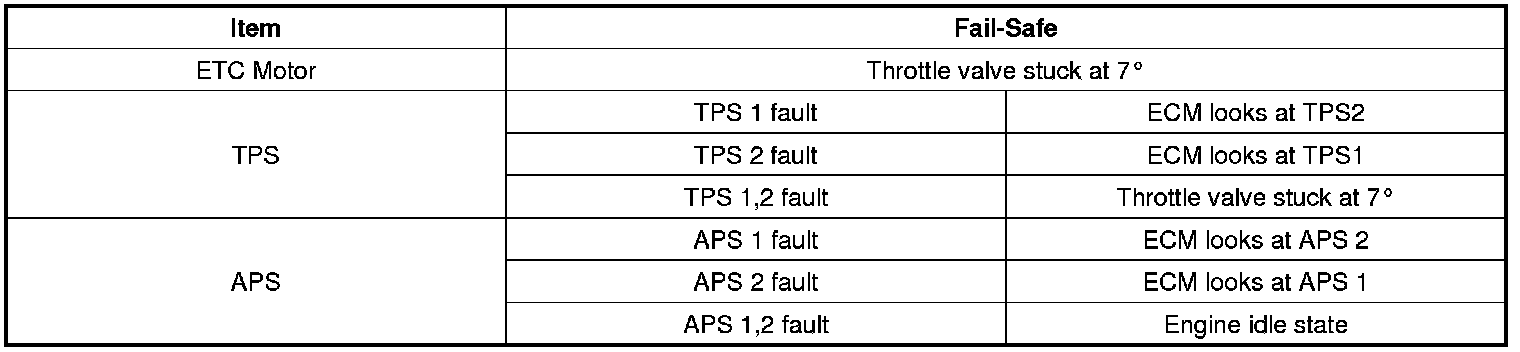

Fail-Safe Mode





NOTE:
When throttle value is stuck at 7°, engine speed is limited at below 1,500rpm and vehicle speed at maximum 40 - 50 km/h (25 - 31 mph)
