Cylinder Head

Cylinder Head

Install cylinder head bolts.
1. Do not apply engine oil on the threads and under the heads of the cylinder head bolts.

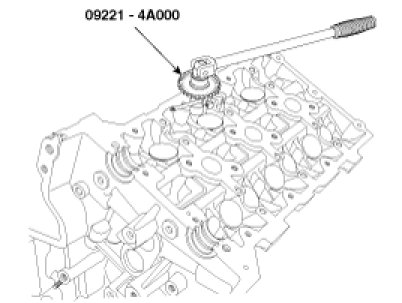

2. Using SST(09221-4A000), install and tighten the cylinder head bolts and plate washers, in several passes, in the sequence shown.

Tightening torque
Head bolt 37.3 - 41.2Nm (3.8 - 4.2kgf.m, 27.5 - 30.4lb-ft) + 118 - 122° + 88 - 92°
Bolts (A) 18.6 - 23.5Nm (1.9 - 2.4kgf.m, 13.7 - 17.4lb-ft)

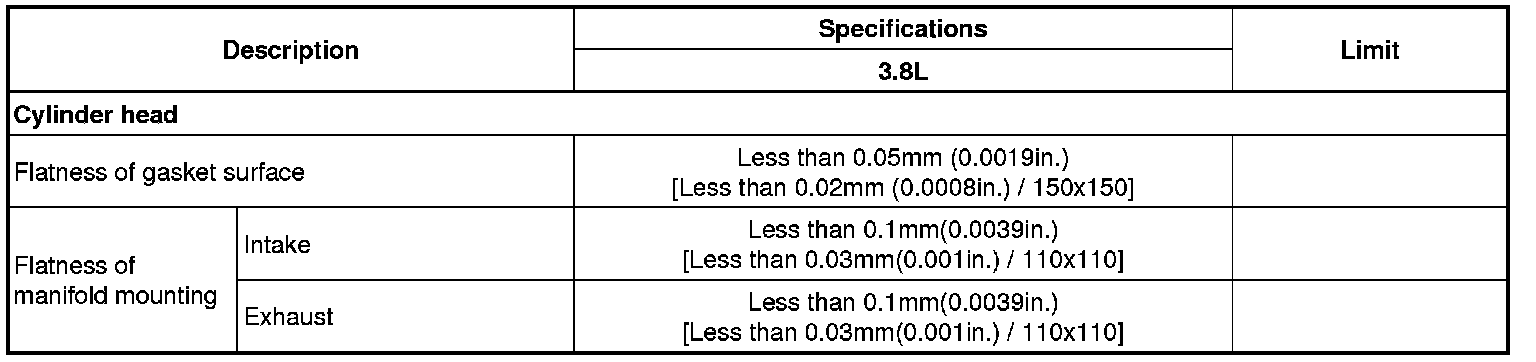

SURFACE VARIATION - WARPAGE
