A/T - Oil Pressure Data Transfer

NUMBER
12-AT-010

GROUP
AUTOMATIC TRANSAXLE

MODEL
GENESIS SEDAN (BH)
EQUUS SEDAN (VI)
GENESIS COUPE (BK)

DATE
MARCH 2012

SUBJECT:
AUTOMATIC TRANSMISSION OIL PRESSURE DATA TRANSFER

This TSB supersedes TSB 11-AT-013 to add 2012 Genesis Coupe.

Description:

This bulletin provides two procedures to transfer data to the TCM for 8-speed transmissions. The purpose of the data transfer is to enable quicker adaptive learning.

1. After replacing an 8-speed transmission: Download the oil pressure data of the new transmission from the GSW server and then input the data into the TCM using the GDS.

2. After replacing a TCM: Back up the oil pressure data from the old TCM into the GDS and then transfer the data into the new TCM.

Applicable Vehicles:
2012 Genesis Sedan, Genesis Coupe and Equus

Warranty Information: Normal warranty applies.

Labor operation for automatic transmission or TCM replacement includes the time for data transfer.

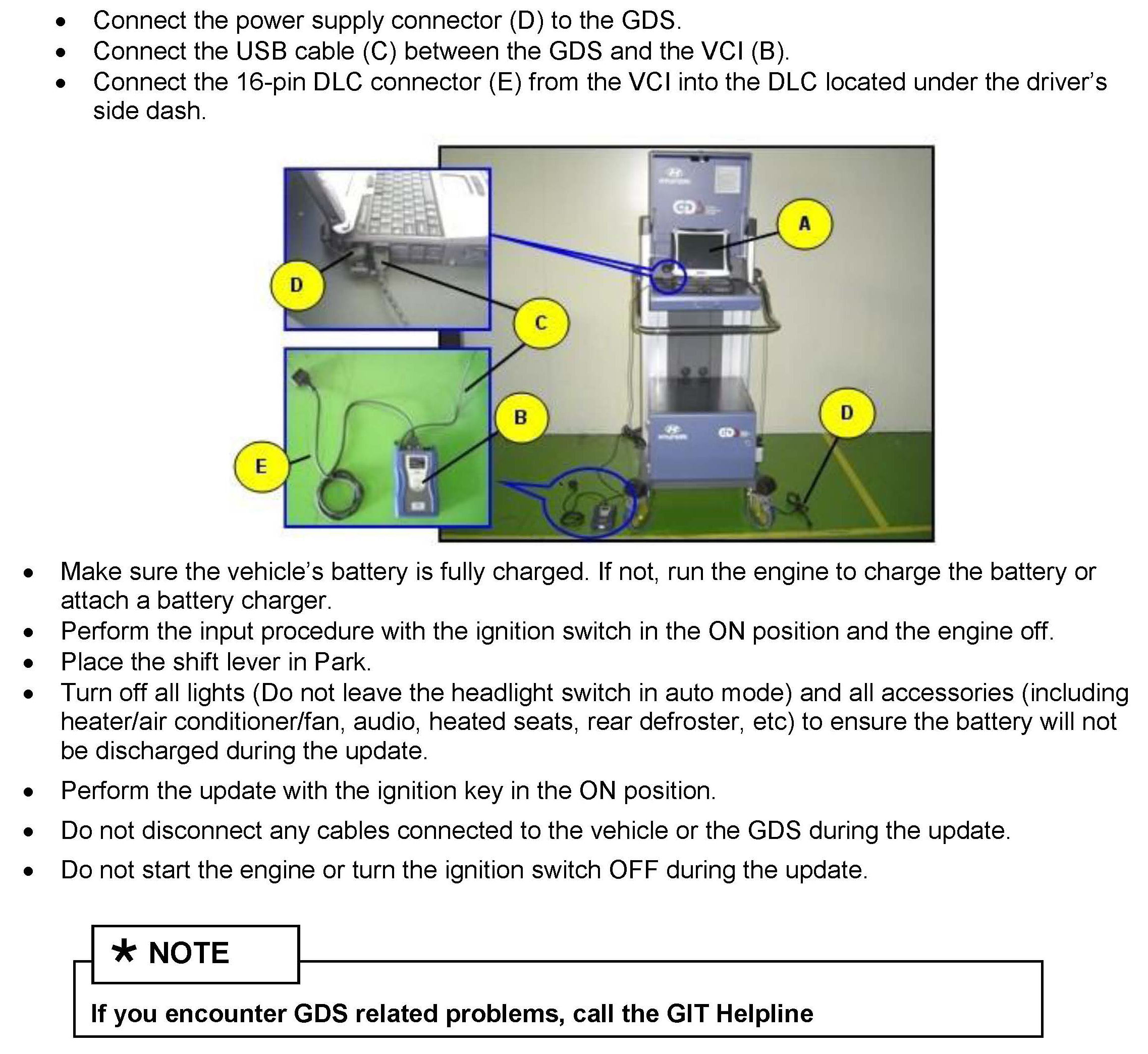

GDS SYSTEM AND TCM UPDATE PRECAUTIONS:

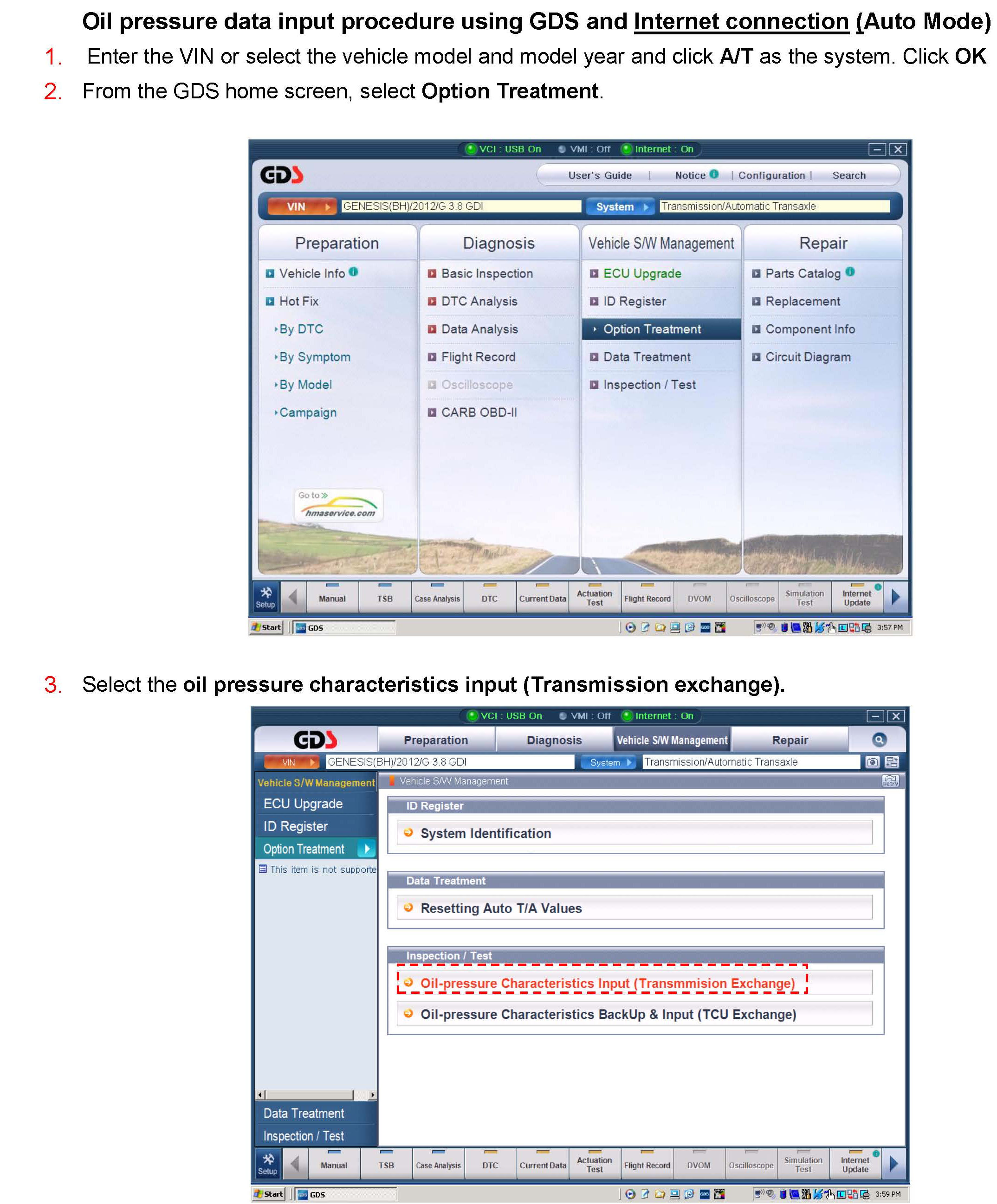

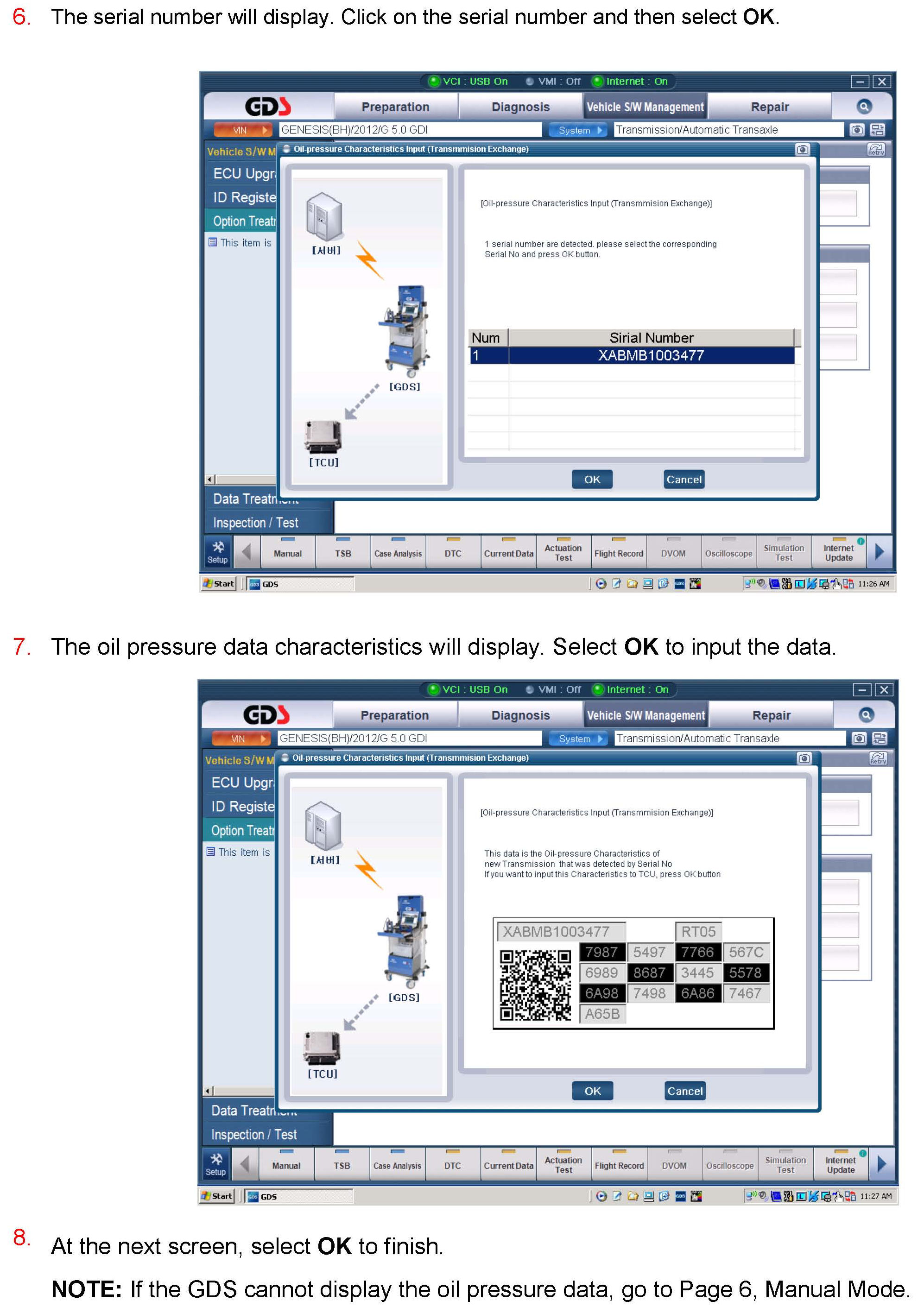

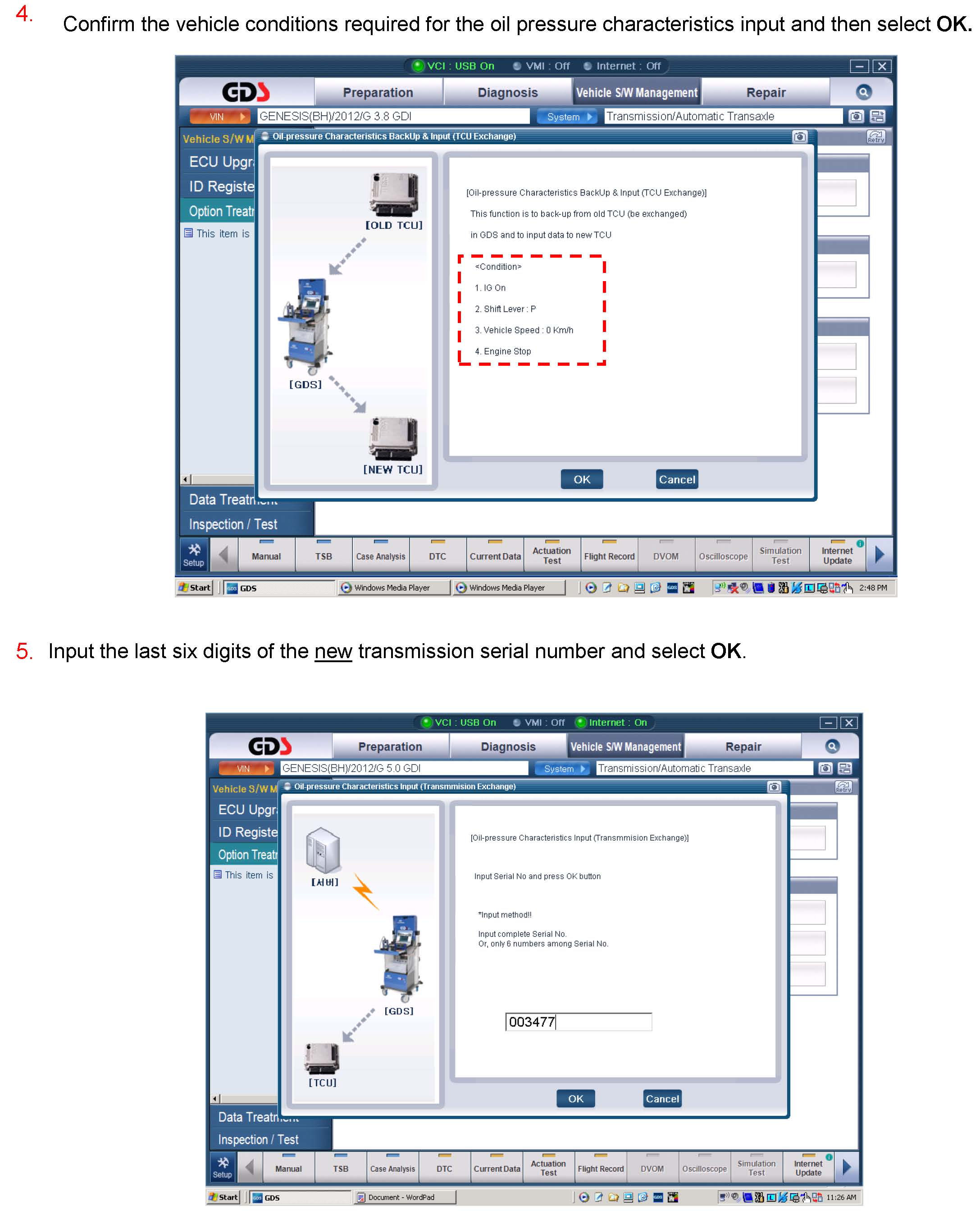

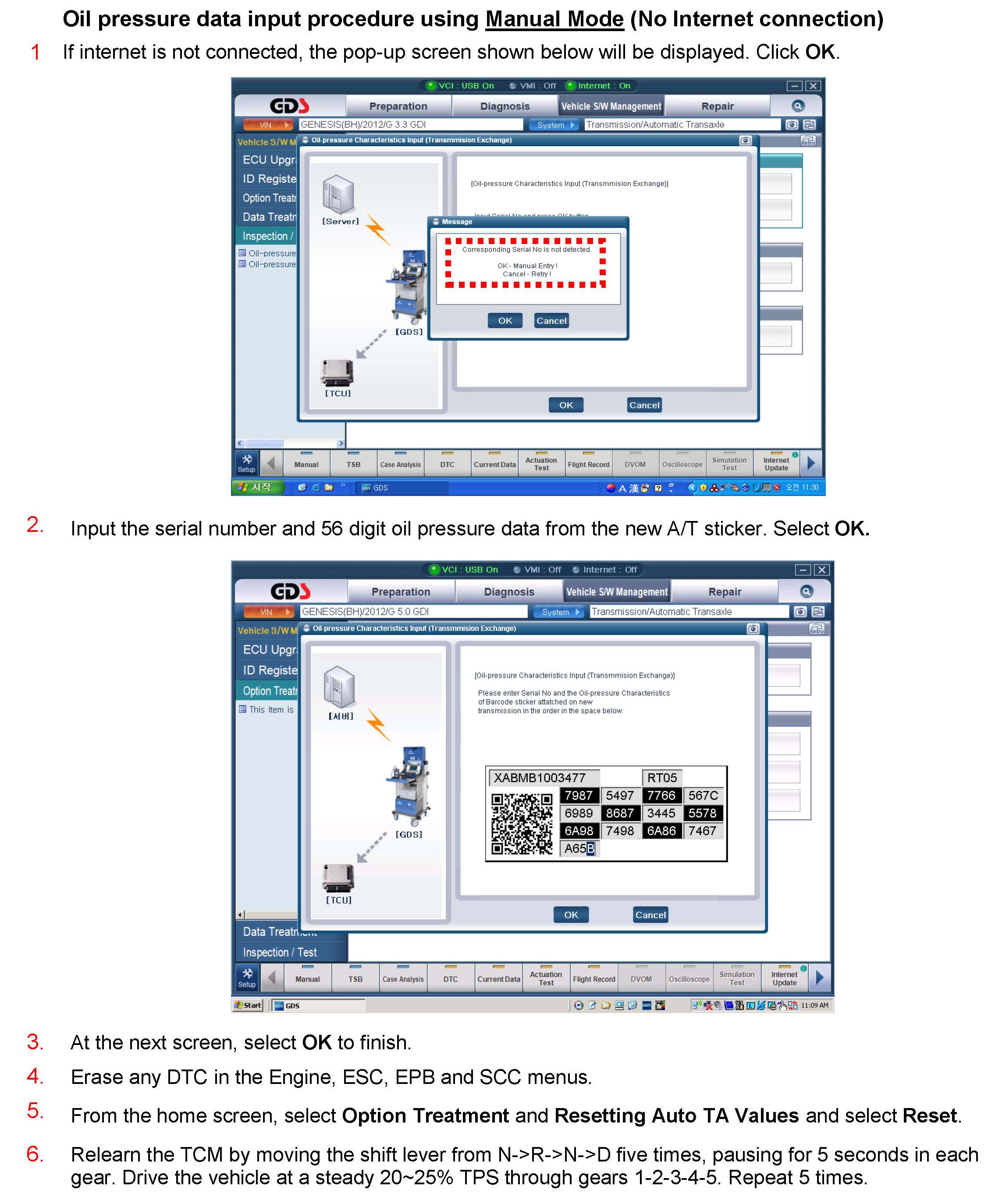

1. AUTOMATIC TRANSMISSION REPLACEMENT

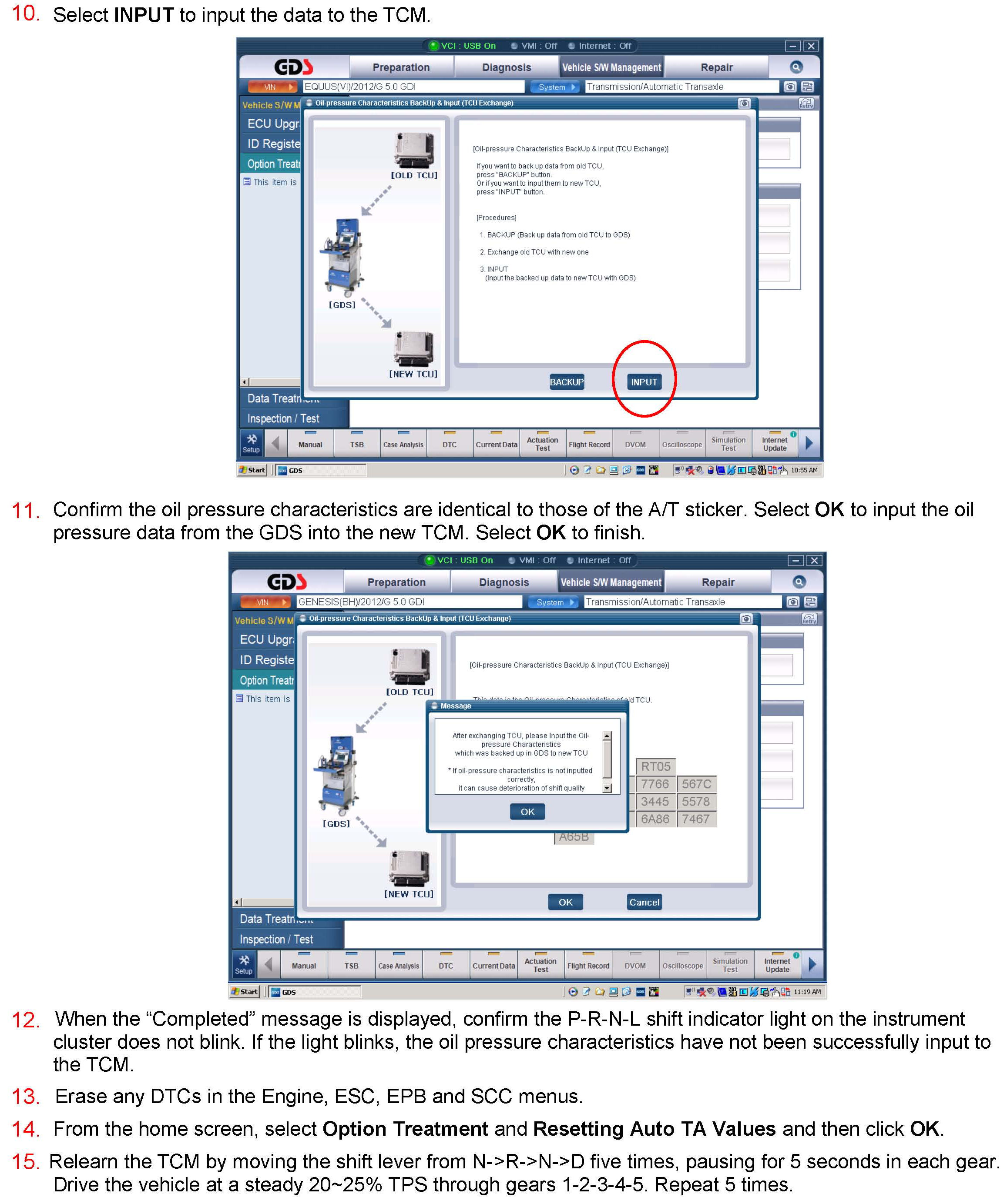

2. TCM REPLACEMENT
