Fogging Sensor: Service and Repair

Inspection

1. Press the OFF switch more then 4 times within 2 seconds while pressing the MODE switch.

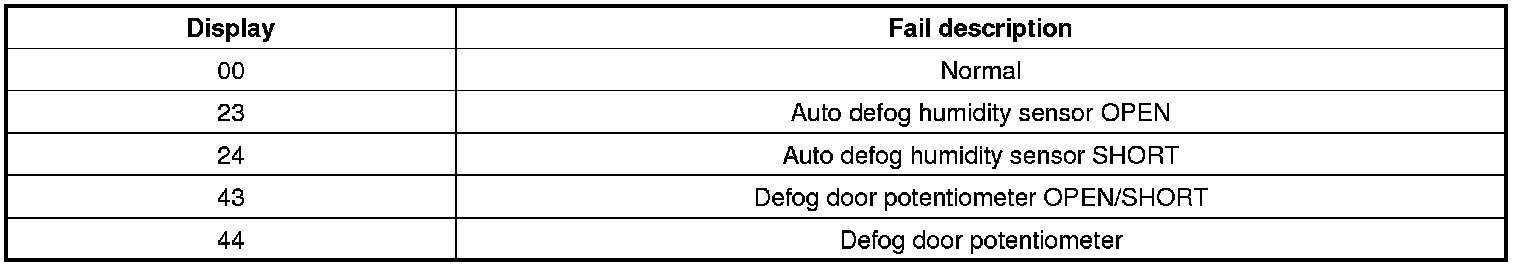

Diagnostic procedure refer to DTC code.

Replacement

1. Remove the auto defogging sensor cover(A).

2. Disconnect the connector and then remove the auto defogging sensor(A).

3. Installation is the reverse order of removal.
