Repair Procedures

Removal

1. Disconnect the negative(-) battery terminal.
2. Remove the crash pad lower panel(A).

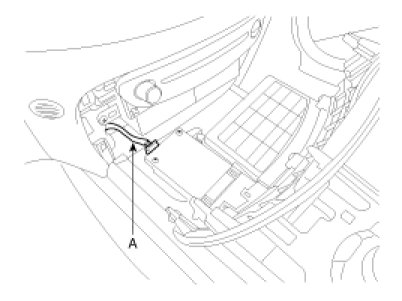

3. Remove the connector (A).

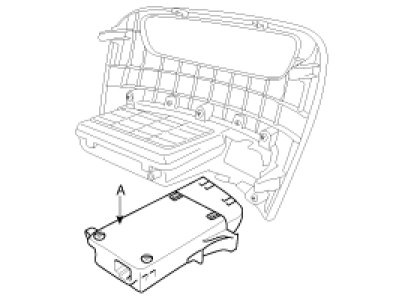

4. Remove the Fob holder assembly(A) after loosening the mounting screw.






Installation

1. Install the fob holder assembly.
2. Install the crash pad lower panel.
