Power Outside Mirror System

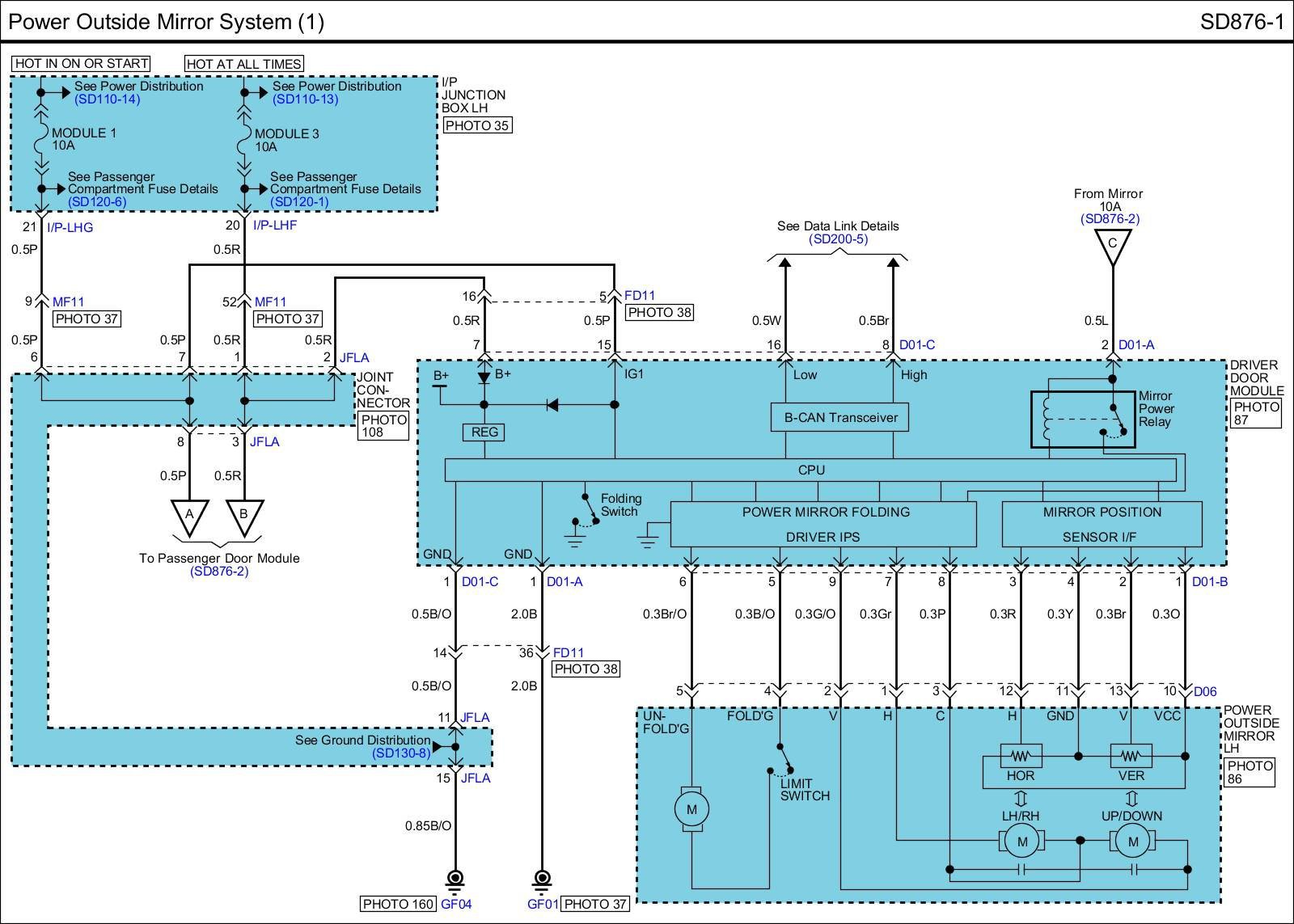

SD876-1 Power Outside Mirror System (1):

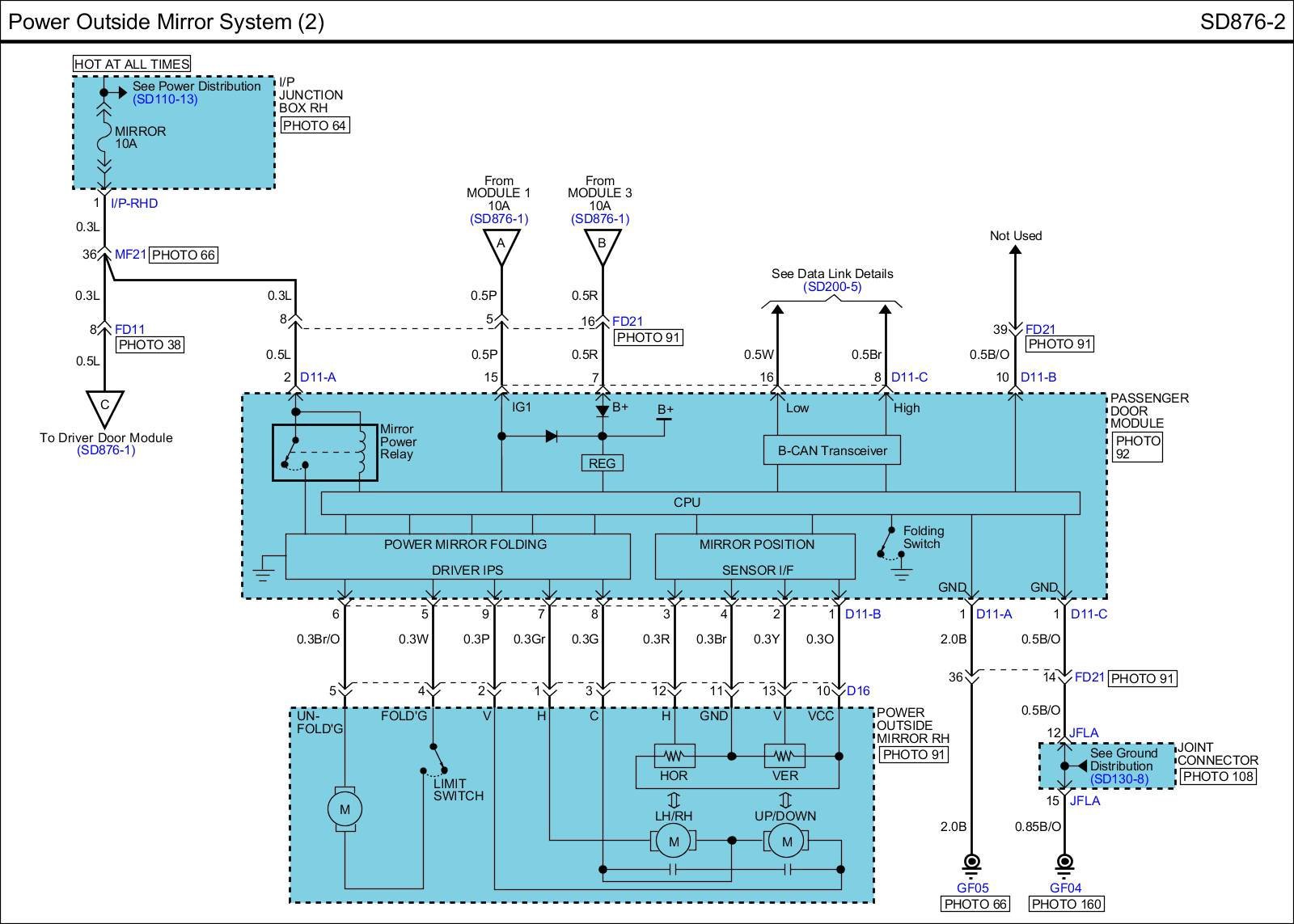

SD876-2 Power Outside Mirror System (2):

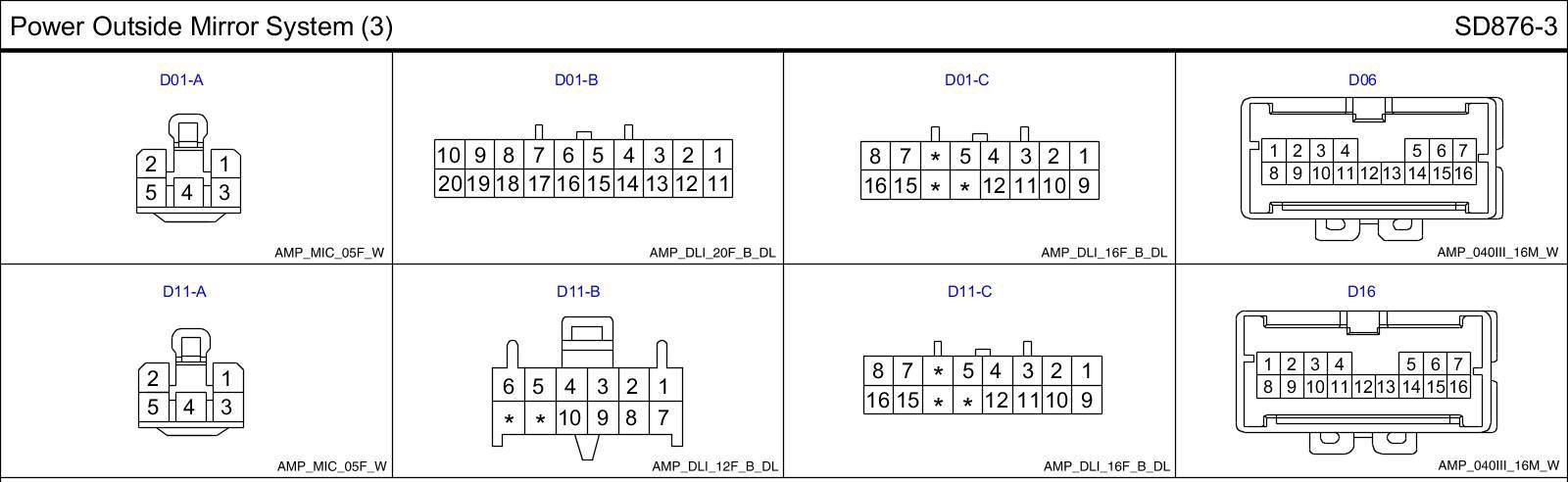

Power Outside Mirror System (3) Connector Pin Outs:

Diagrams: Other diagrams referred to by SD number (i.e. SD130-4, etc.) within these diagrams can be found at Diagrams by Number. Diagrams By Number

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Locations By Photo Number
