Head lamps

Inspection

Head Lamp Relay Inspection

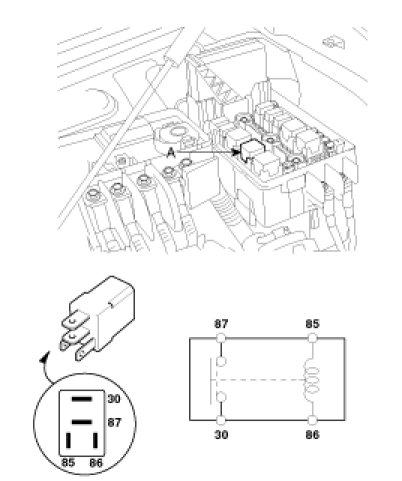

1. Pull out the head lamp relay (Low) (A) from the engine compartment relay box.
A : Head lamp(Low) relay

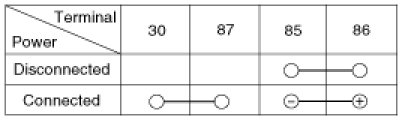

2. Check for continuity between terminals. There should be continuity between the No.87 and No.30 terminals when power and ground are connected to the No.86 and No.85 terminals.
3. There should be no continuity between the No.87 and No.30 terminals when power is disconnected.






Removal

1. Disconnect the negative (-) battery terminal.

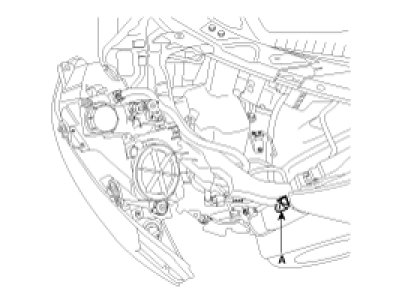

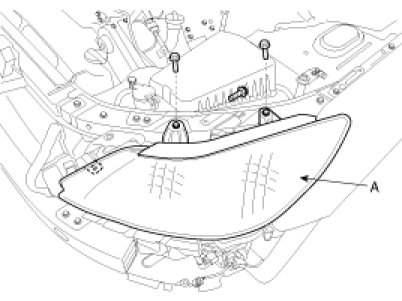

2. Loosen the mounting bolts(3EA) of head lamp. Remove the head lamp assembly(A) after disconnecting the lamp connectors.





NOTE:
Take care that retaining clip (A) is not to be damaged.

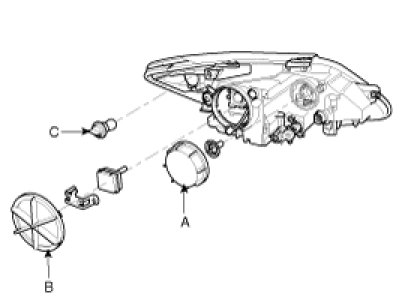

3. Remove the bulb caps from the head lamp assembly.
A : Head lamp high bulb cab
B : Head lamp low bulb cab
C : Turn signal bulb






Installation

1. Install the head lamp bulbs.
2. Install the head lamp bulb caps.
3. Install the head assembly after connecting the lamp connector.

Adjustment

Head Lamp Aiming Instructions


The head lamps should be aimed with the proper beam-setting equipment, and in accordance with the equipment manufacturer's instructions.

NOTE:
If there are any regulations pertinent to the aiming of head lamps in the area where the vehicle is to be used, adjust so as to meet those requirements.

Alternately turn the adjusting gear to adjust the head lamp aiming. If beam-setting equipment is not available, proceed as follows :
1. Inflate the tires to the specified pressure and remove any loads from the vehicle except the driver, spare tire, and tools.
2. The vehicle should be placed on a flat floor.
3. Draw vertical lines (Vertical lines passing through respective head lamp centers) and a horizontal line (Horizontal line passing through center of head lamps) on the screen.
4. With the head lamp and battery in normal condition, aim the head lamps so the brightest portion falls on the vertical lines.

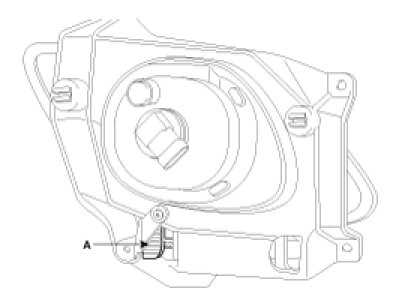

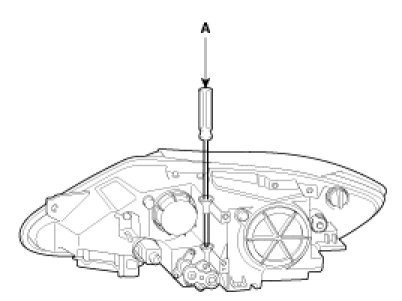

Make vertical adjustments to the lower beam using the adjusting wheel.
A : Vertical adjustment(High/Low)






1. Using the scanner, do the following procedures.
(1) Download Parameter
(2) Erase the error code
(3) System Calibration
(4) Erase the error code
(5) Actuator Test
(6) Check the error code
2. Turn on the headlamp low & Hi beam after engine is running.
3. Adjust the "mechanical aiming".

Front Fog Lamp Aiming
The front fog lamps should be aimed as the same manner of the head lamps aiming.
With the front fog lamps and battery normal condition, aim the front fog lamps by turning the adjusting gear (A).

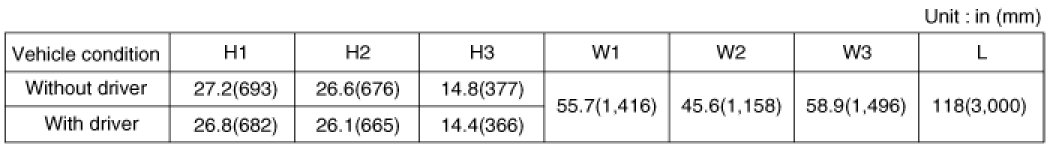

Head Lamp And Fog Lamp Aiming Point

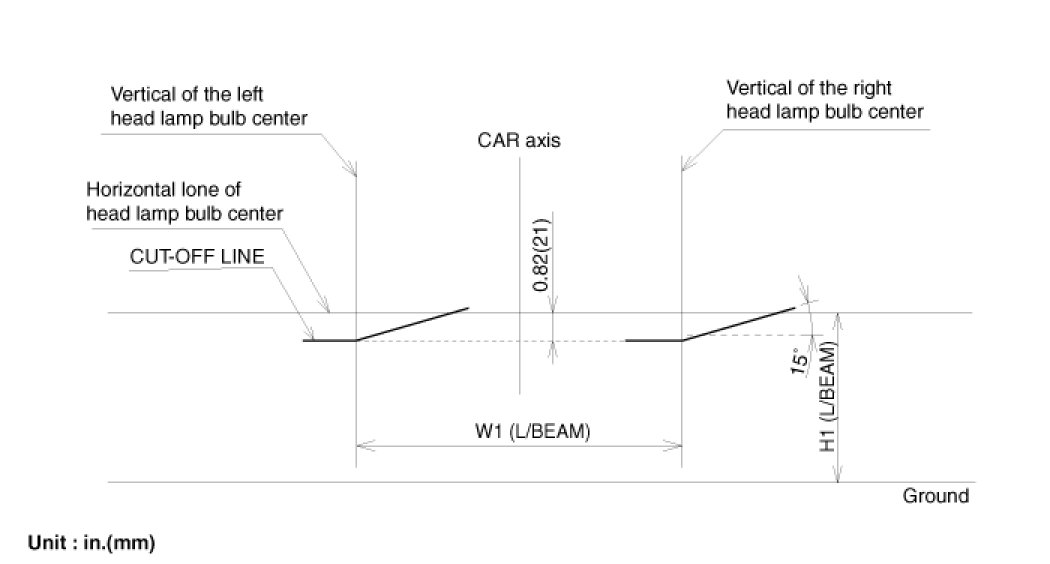

1. Turn the low beam on with driver.
In case of bulb option, the Cut-off line should be projected in the allowable range (shaded region).




* In case of high beam, head lamp do not need aiming with proper beam-setting equipment.
2. Turn the low beam on with driver.
In case of HID option, the Cut-off line should be projected in the allowable range shown in the picture.
In case of equipping with the auto leveling device, set the initialization by using the diagnostic tool before aiming.

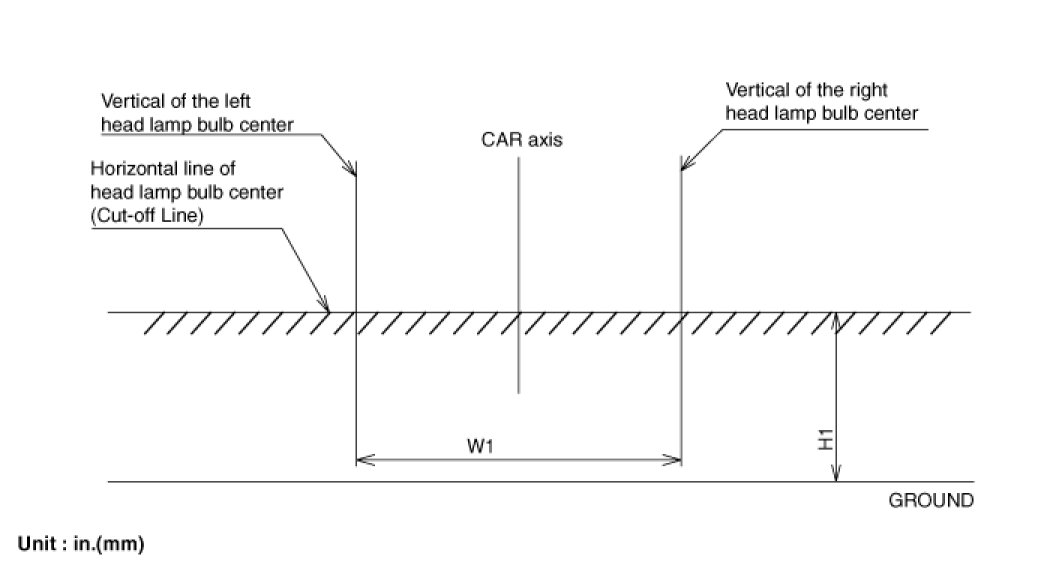

3. Turn the front fog lamp on with driver.
The cut-off line should be projected in the allowable range (shaded region)
