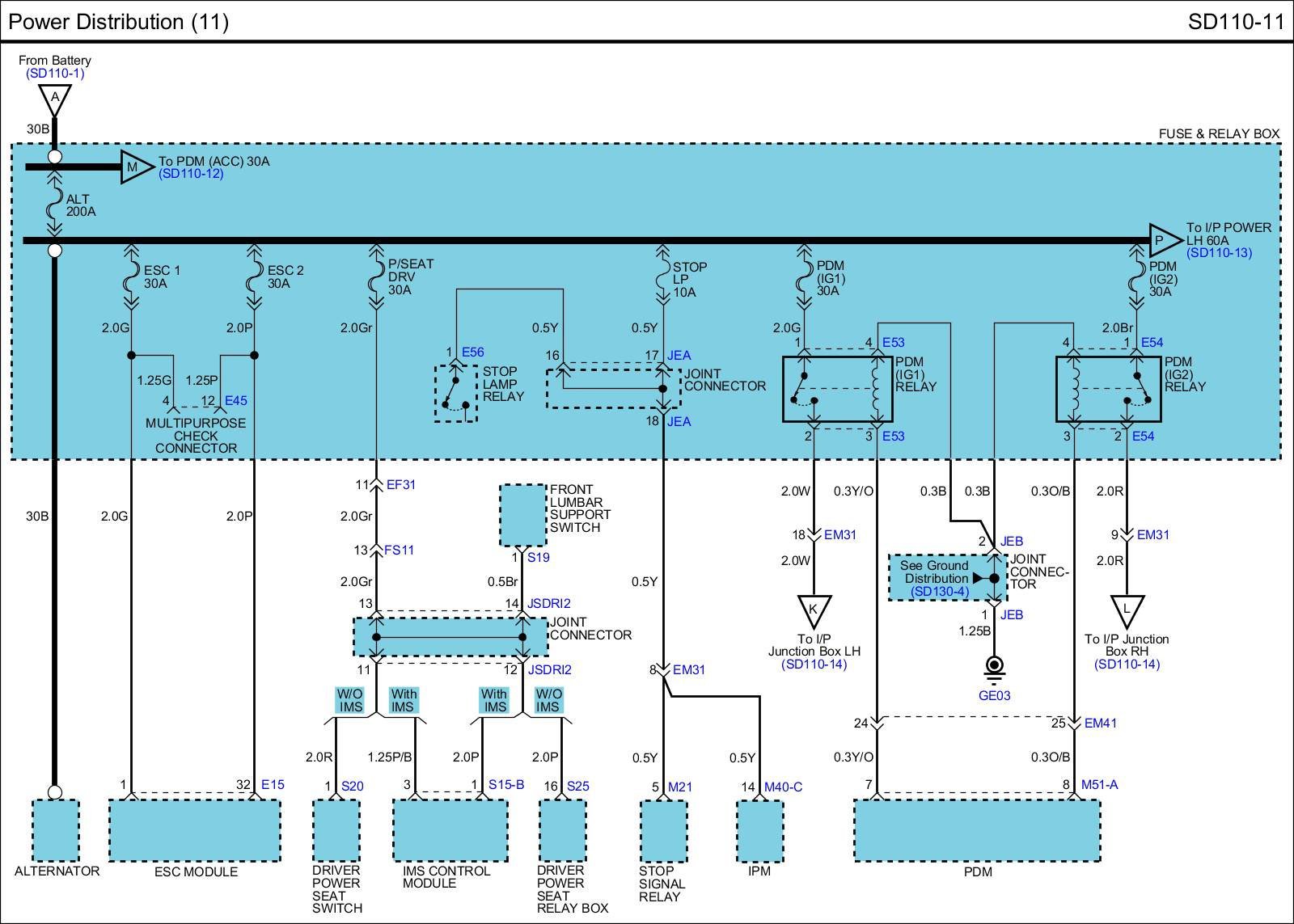

Power Distribution (11)

SD110-11 Power Distribution (11):

Next Diagram Power Distribution (12)

Previous Diagram Power Distribution (10)

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Locations By Photo Number
