Monitor Scantool Data





Air Conditioner
B1202 Heater Water Temperature Sensor Open(High) - Scantool Diagnostics:_:Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC).
2. Engine "ON".
3. Monitor the "WATER TEMP SENSOR" Parameter on the Scantool.

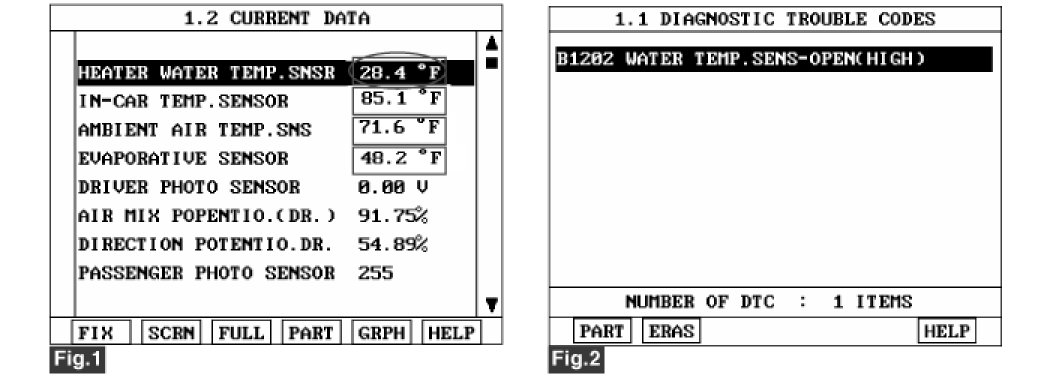

Fig1) The current data in abnormal state
Fig2) DTC B1202

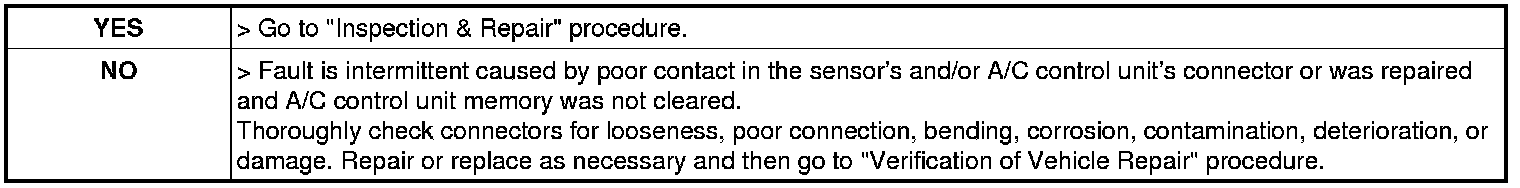

4. Are the DTC B1202 present and is parameter of "WATER TEMP SENSOR" fixed?

NOTE:
** Parameter of "WATER TEMP SENSOR" will be fixed at 28.4°F, if there is any fault in WATER TEMP SENSOR
