Monitor Scantool Data

Air Conditioner
B1205 Air Mix Potentiometer Short (High)-Passenger - Scantool Diagnostics:_:Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC).
2. Engine "ON".
3. Monitor the "PASSENGER AIR MID" Parameter on the Scantool. While operating passenger temp switch.

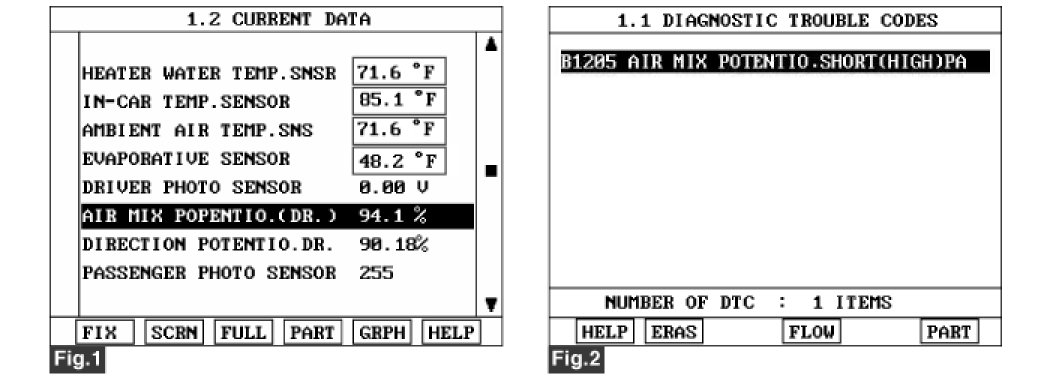

Fig1) The current data in abnormal state
Fig2) DTC B1205

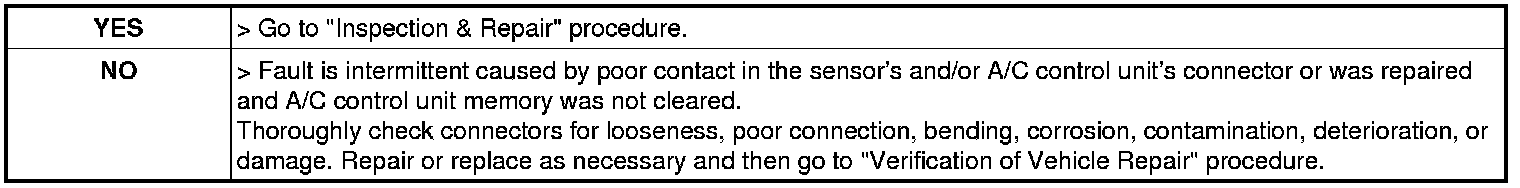

4. Are the DTC B1205 present and is parameter of "PASSENGER AIR MID" fixed ?

NOTE:
** Parameter of "PASSENGER AIR MID" will be fixed at d at 100%(or any value above 90%), or 0% (or any value below 10%), if there is any fault in passenger air mix actuator.
