System Inspection

Tire Pressure Monitoring System
C1127 TPMS ECU Battery Voltage High - Inspection/Repair:_:System Inspection

Charging System Inspection

1. Engine "ON"
2. headight and rear defroster "ON".
3. Measure voltage between terminal (+) and (-) of battery maintaining ENG. RPM at 2,500RPM(idle) over 2 minutes.

Specification :less than 16.5 V

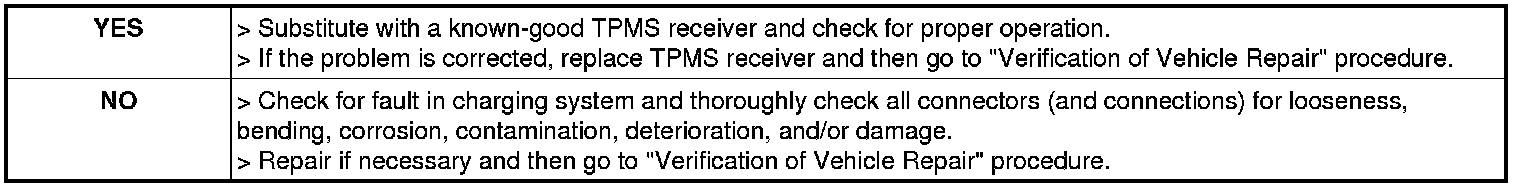

4. Is the measured voltage within specifications?
