TPMS





Tire Pressure Monitoring System
C1320 Sensor 4 Wrong Type Installed - Inspection/Repair:_:Component Inspection

Component Inspection

1. Turn ON 'TPMS exciter'.
2. Select "TIRE SNSR CONFIG (EXCITER)" mode.
3. Execute "SET SENSOR STATUS" of Rear Right WE sensor.
4. Monitor the parameter of Rear Right WE sensor on the 'TPMS exciter'.

Specification :'SENSOR OPTION' is 'LOW'.

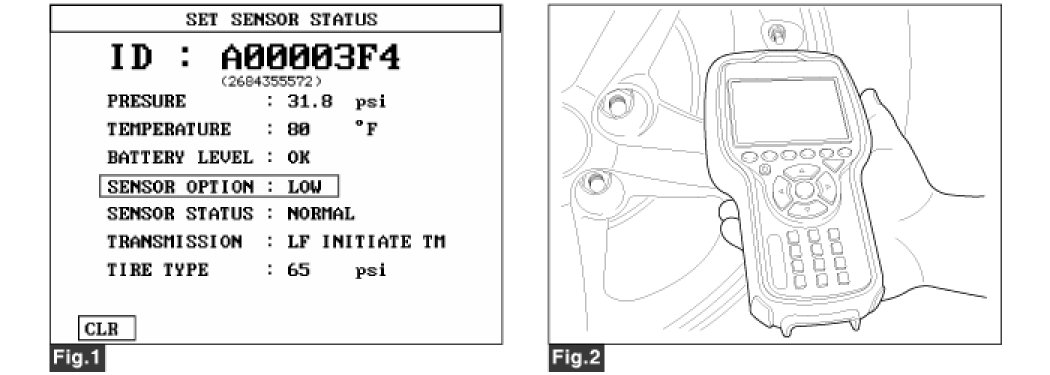

Fig 1) Sensor status (normal)
Fig 2) Executing "SET SENSOR STATUS"
5. Is parameter within specifications?
