Component Inspection





4WD Control
P1728 EMC-Open or Short to Battery - Inspection/Repair:_:Component Inspection

Component Inspection

1. IG key "OFF", ENGINE "OFF".
2. Disconnect EMC connector.

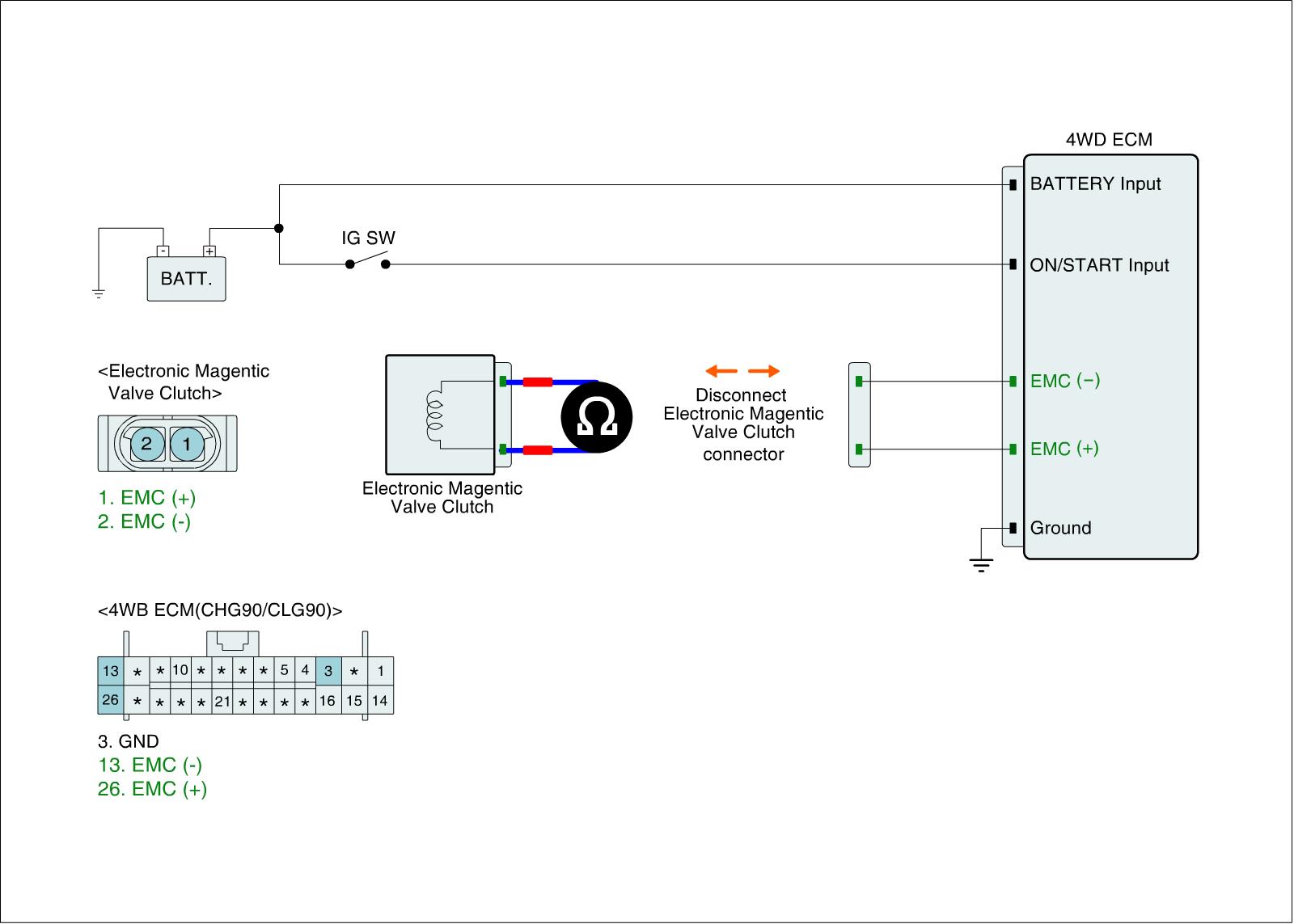

3. Measure the resistance(Component side) between EMC(+) and EMC(-) of the "Electric Magnet Valve Clutch" connector.

Specification :Approx. 1.8 - 2.2 Ohms





CAUTION:
he above value is just for reference.
he actual value may differ from it according to various engine condition.

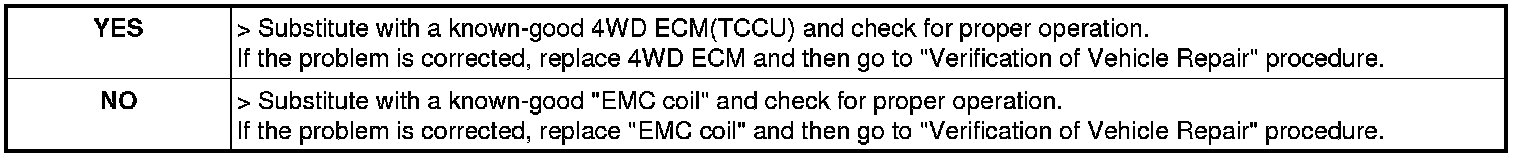

4. Is resistance display near the specified value?
