Door Lock Relay
>>
Locations
Door Lock Relay: Locations

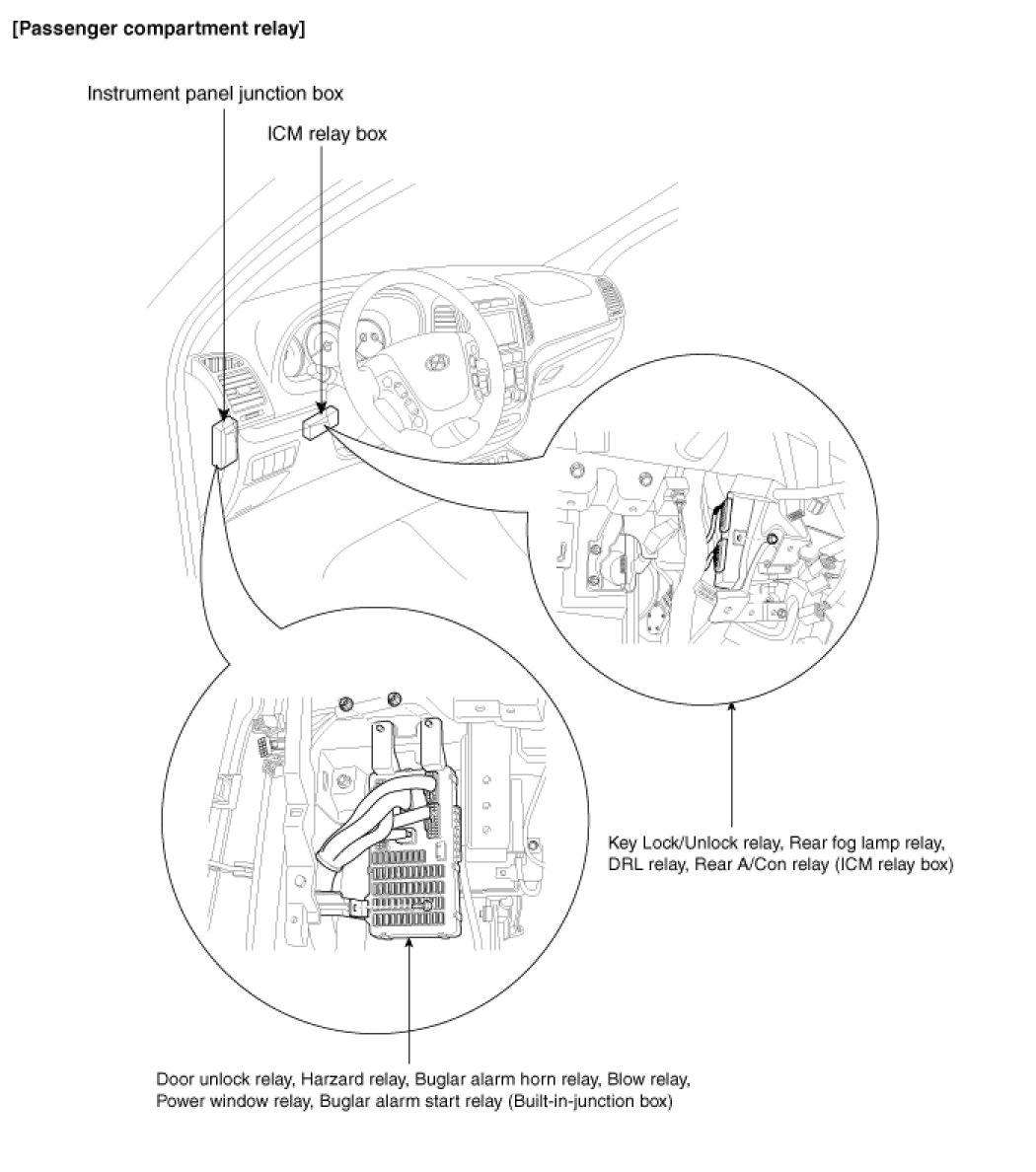

Component Location
Fuse & Relay Information

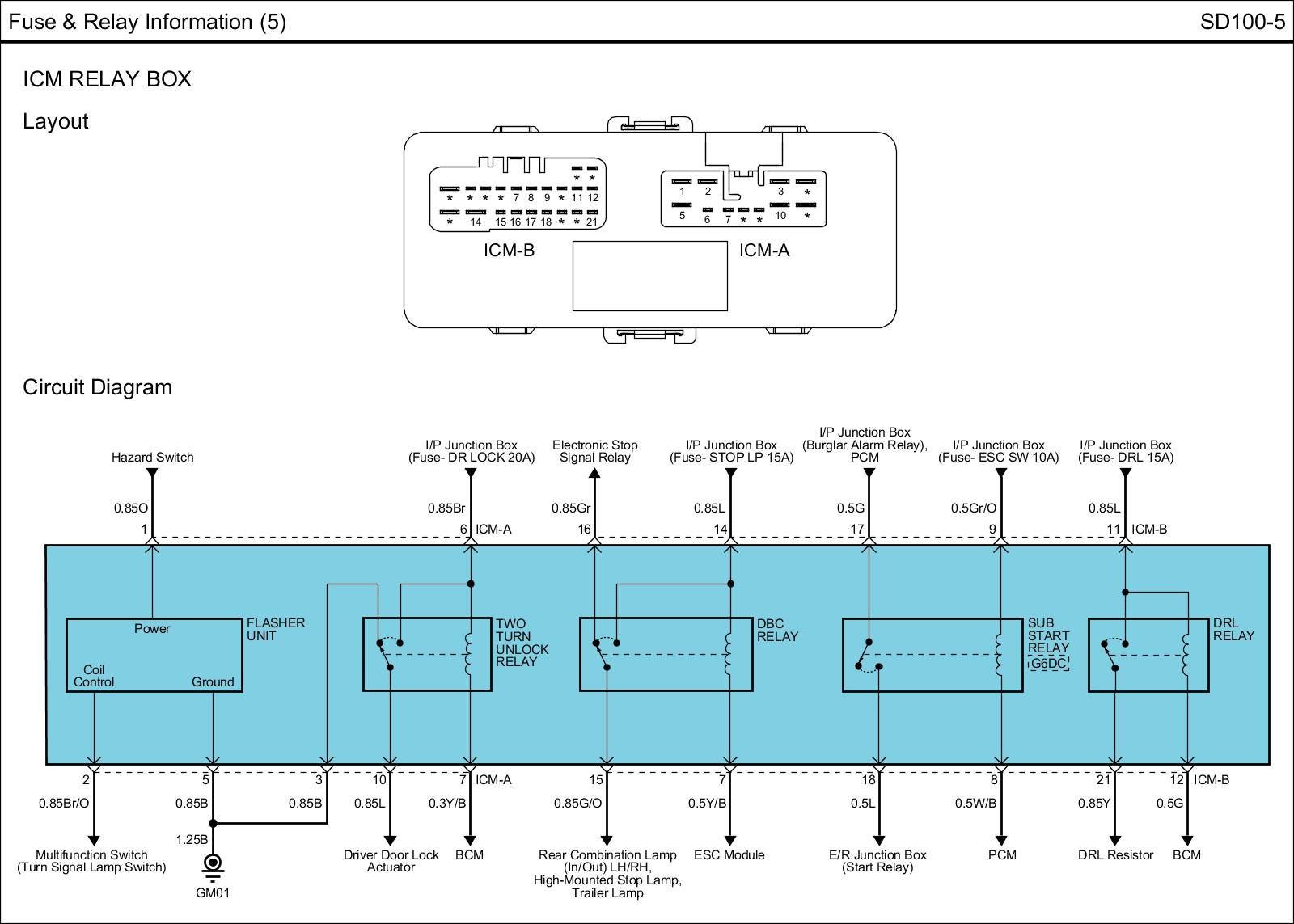

ICM Relay Box View:
