Drive Motor Power Relay: Description and Operation
DescriptionPre-Charge Relay is integrated into the Power Relay Assembly (PRA). It starts to charge the capacitor of the inverter soon after IG ON, then it is turned off after the capacitor has been fully charged.

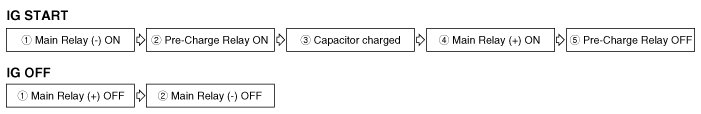

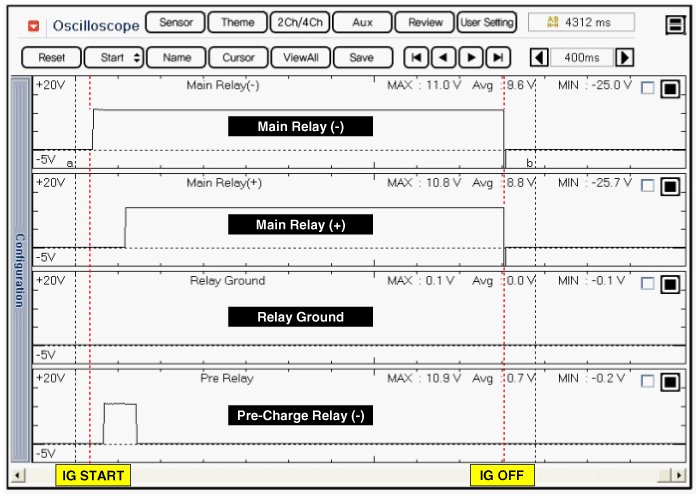

[PRA Operation Sequence]
