Sonata L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Component Connectors
>>
F01 Woofer Speaker
F01 Woofer Speaker

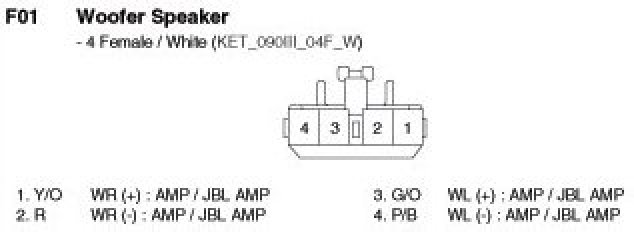

F01 Woofer Speaker:
