System Specifications

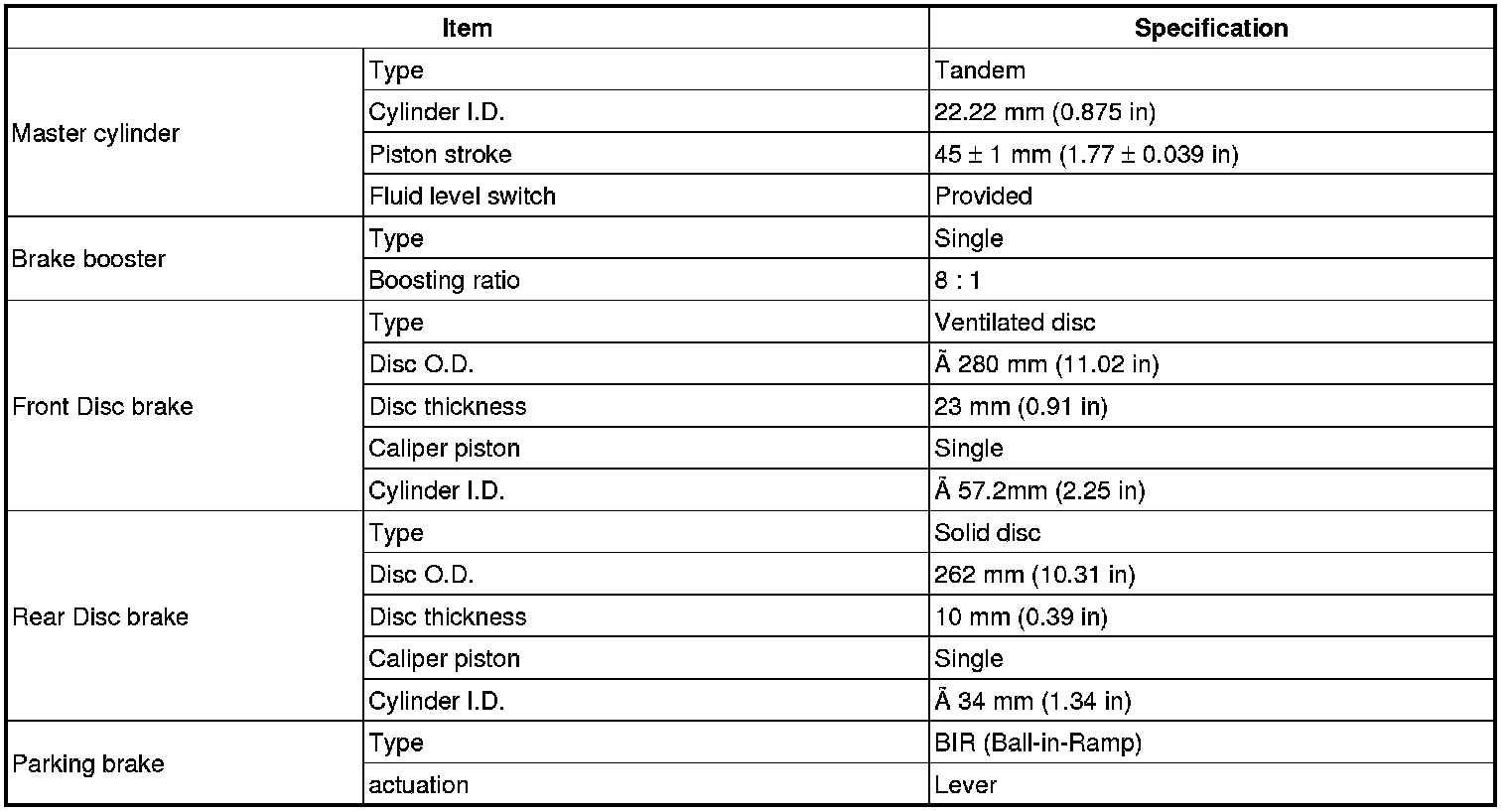

Specifications





NOTE:
O.D.: Outer Diameter
I.D: Inner Diameter

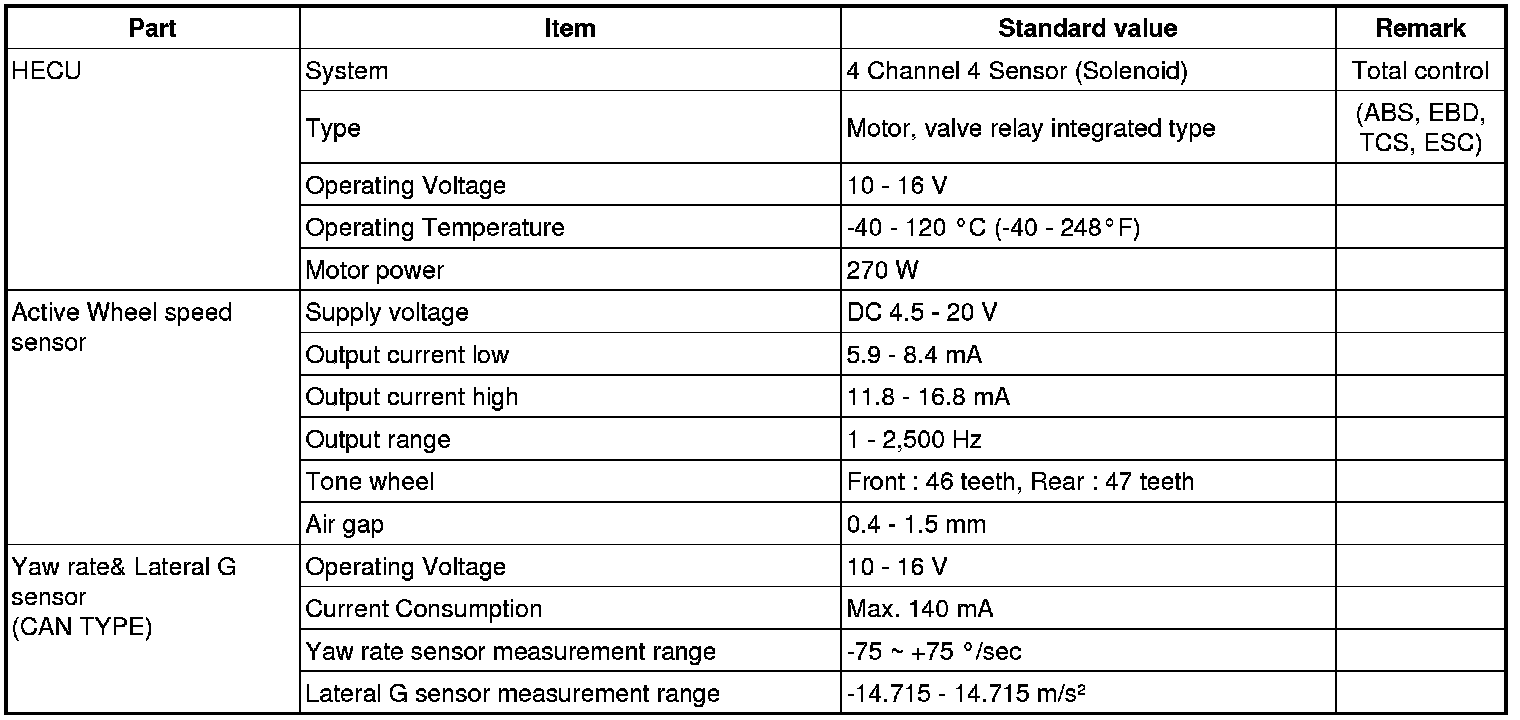

Specification (ESC)

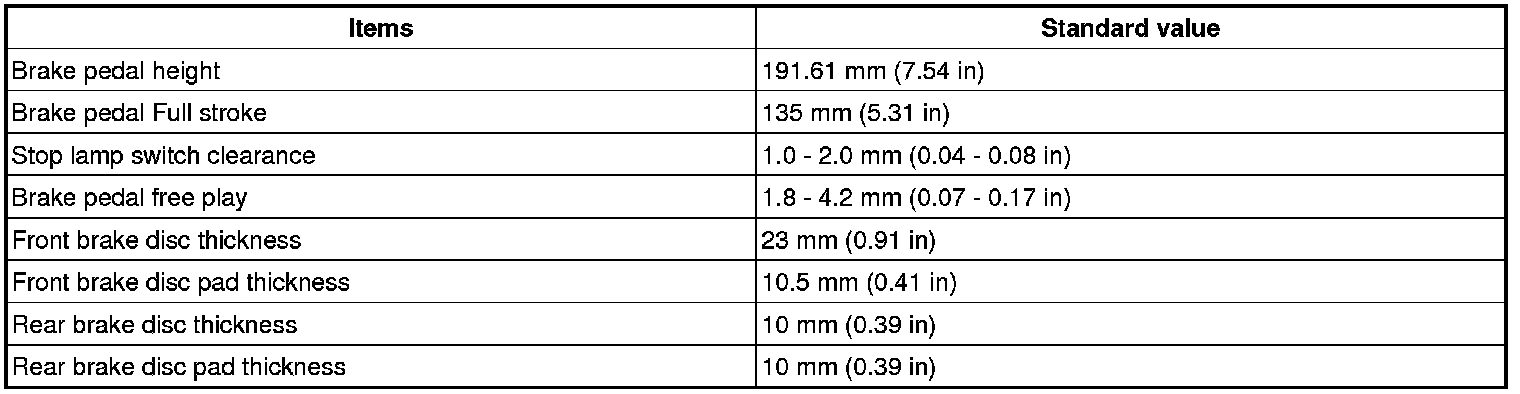

Service Standard

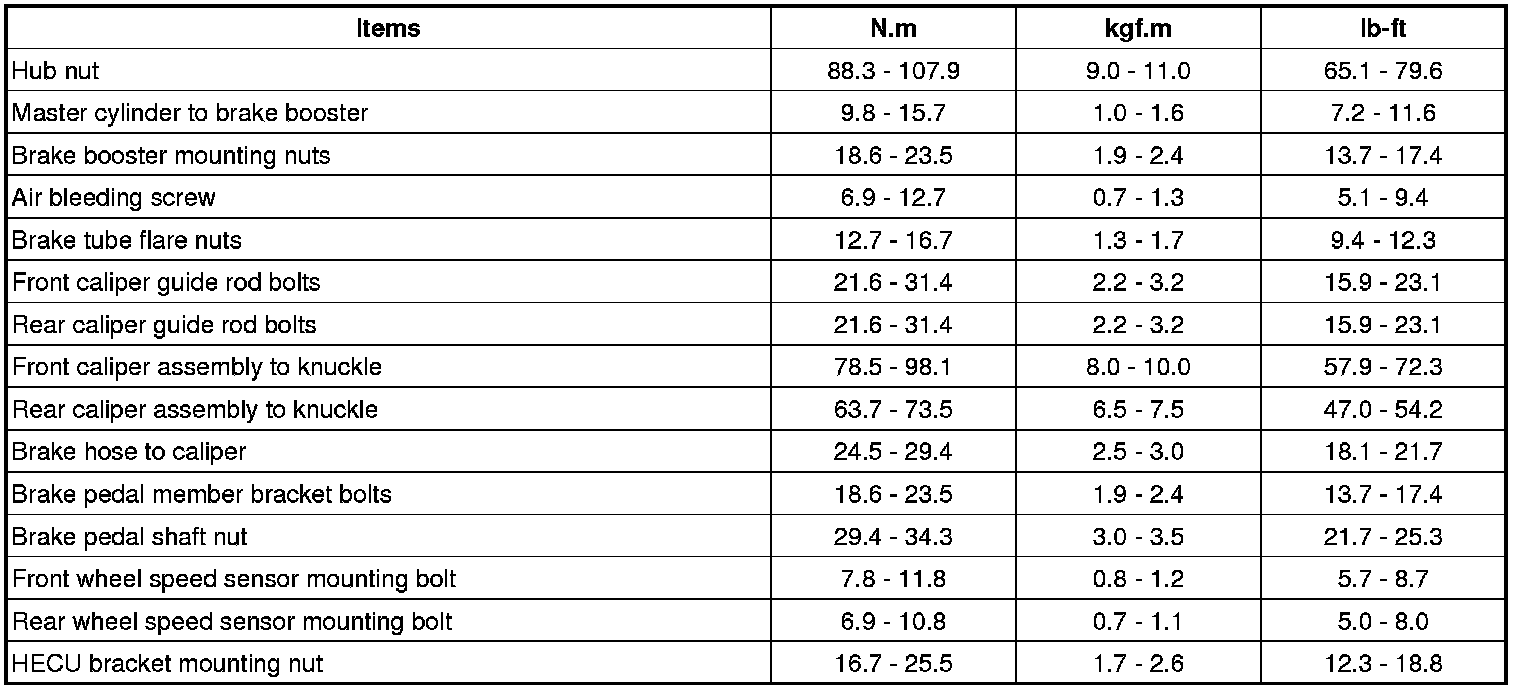

Tightening Torques

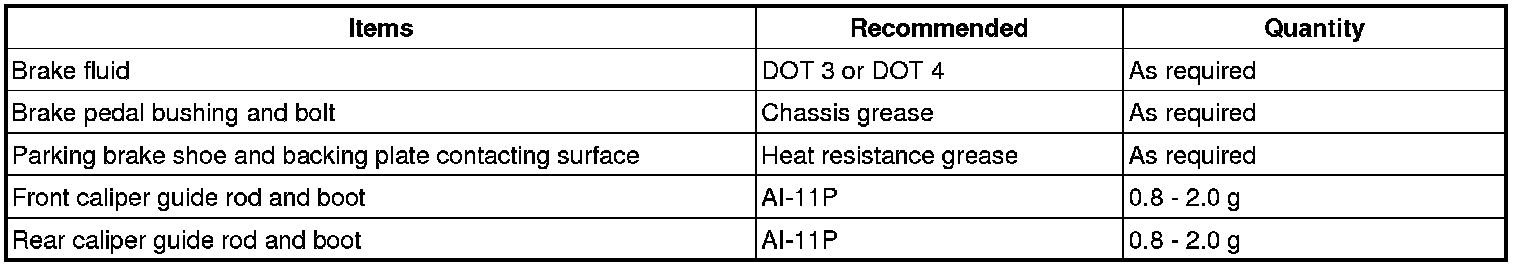

Lubricants
