Front Wiper Motor





Removal

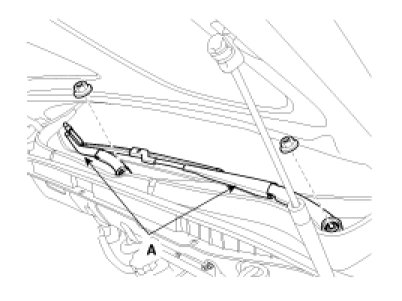

1. Remove the windshield wiper arm and blade (A) after removing a nut.

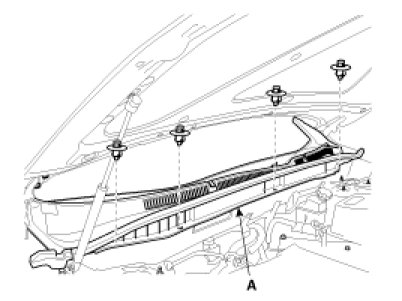

2. Remove the weather strip and the cowl top cover (A) after removing 4 retainers.

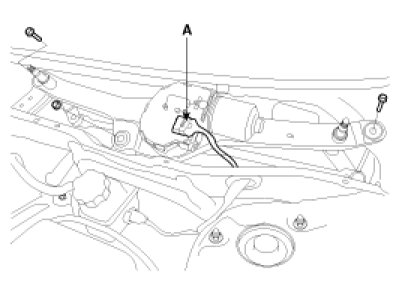

3. Remove the windshield wiper motor and linkage assembly after removing 2 bolts. Disconnect the wiper motor connector and windshield deicer connector from the wiper motor & linkage assembly.






Installation

1. Reassemble the wiper motor & linkage assembly and connect the connector.

Torque :7-11Nm (0.7-1.1, kgf.m, 5.0-7.9 lbf.ft)

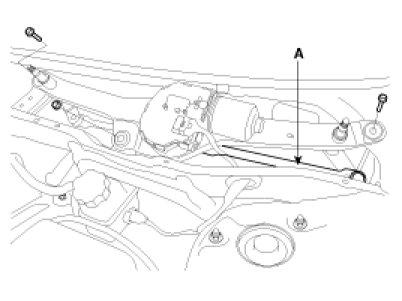

2. Push the linkage (A) into the stopper to set the wiper blade properly before connecting the connector.




3. Reassemble the cowl top cover.
4. Reassemble the windshield wiper arm and blade.

Torque :28 - 32 Nm (2.8 - 3.2 kgf.m, 20 - 23.1 lbf.ft)

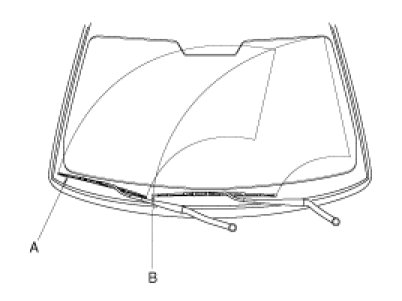

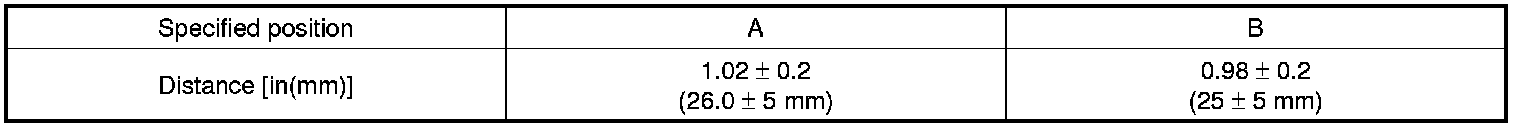

5. Install the wiper arm and blade to the specified position.

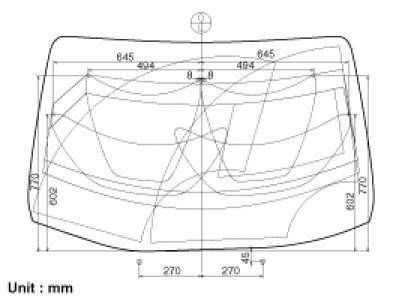

6. Set the washer nozzle on the specified spray position.
