Cylinder Head





Cylinder head bolts with washers.

Tighten the 10 cylinder head bolts, in several passes, in the sequence shown.

Tightening torque : 29.4Nm (3.0kgf.m, 21.7lb-ft) + 90° + 90°






CAUTION: Always use new cylinder head bolts.

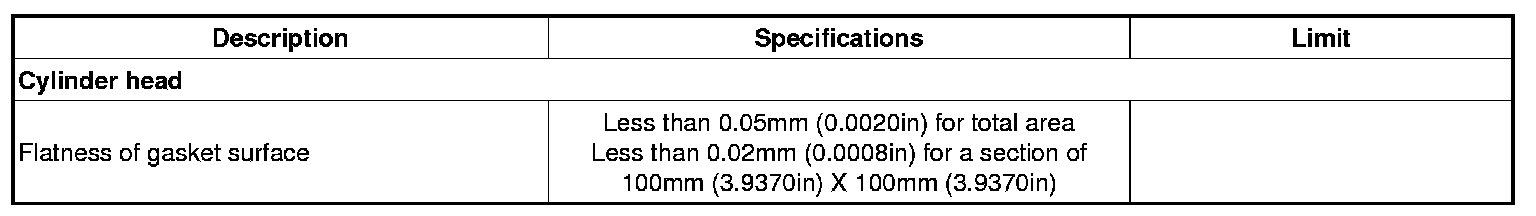

Surface Variation
