Home >> Hyundai >> 2013 >> Azera V6-3.3L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams

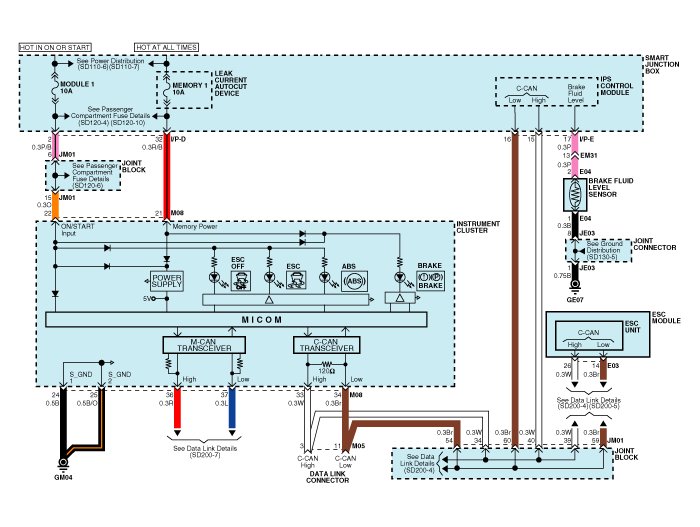

Circuit Diagram - ESC (1)





Circuit Diagram - ESC (2)





Circuit Diagram - ESC (3)





Circuit Diagram - ESC (4)





ESC connector input/output
