Engine Control Module: Diagrams





ECM Terminal And Input/Output signal (M/T)

Harness Connector




ECM Terminal Function
Connector [CNG-MA]









Connector [CNG-MK]

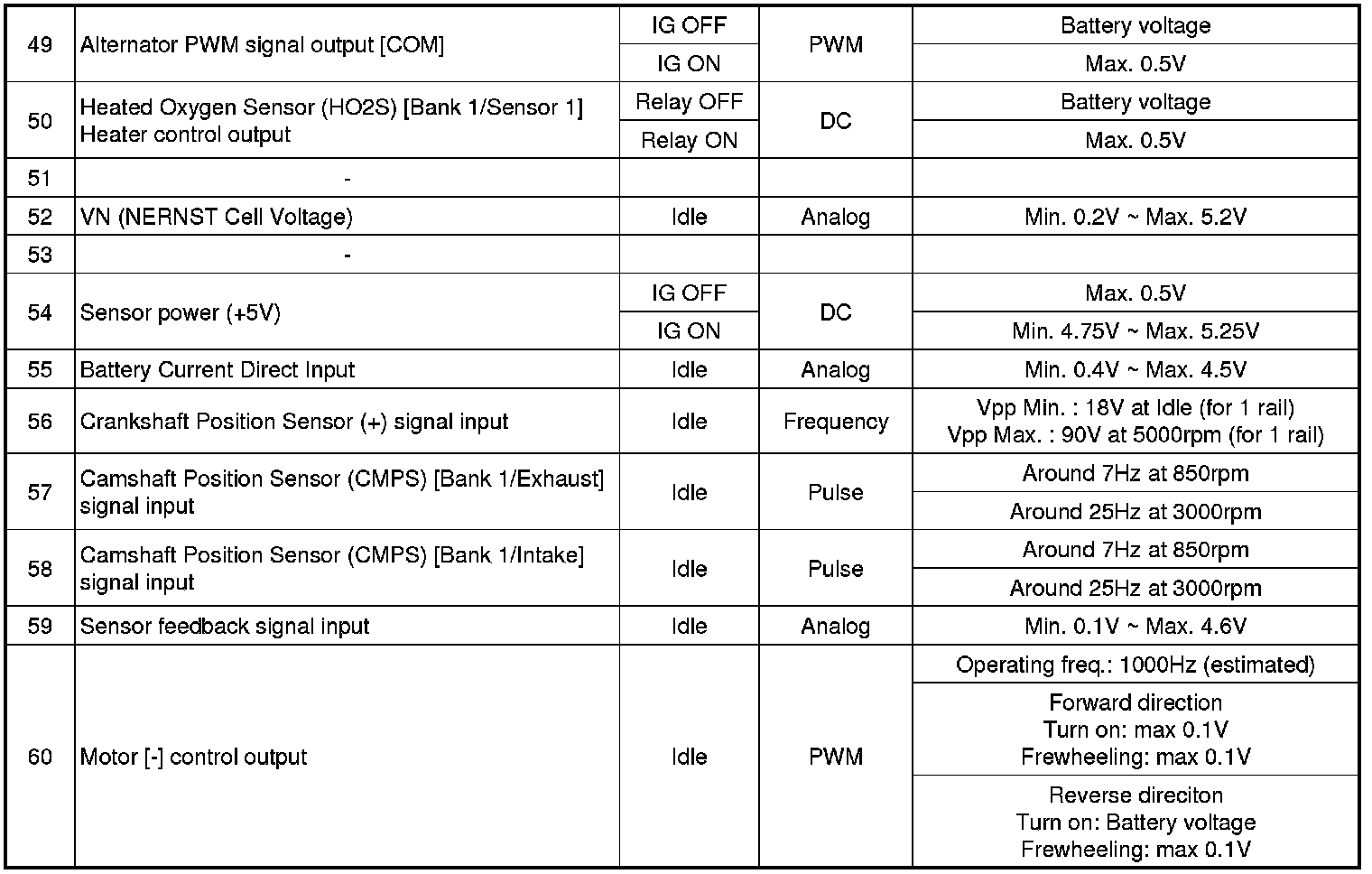

ECM Terminal Input/ Output signal
Connector [CNG-MA]













Connector [CNG-MK]














ECM Terminal And Input/Output signal (A/T)

Harness Connector




ECM Terminal Function
Connector [CNG-AA]













Connector [CNG-AB]













ECM Terminal Input/Output signal (AT)
Connector [CNG-AA]













Connector [CNG-AB]

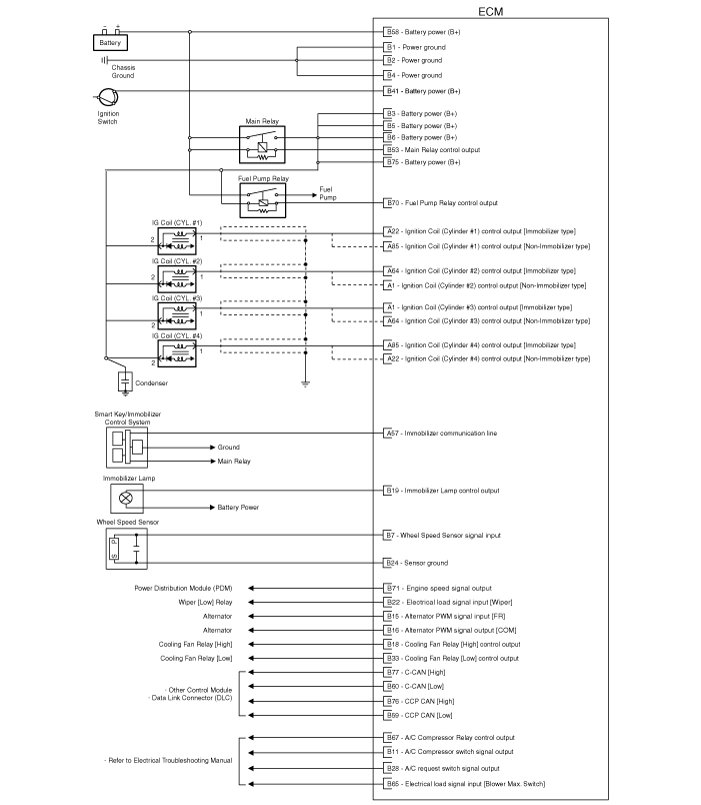

Circuit Diagram

(M/T)
















(A/T)
