Transaxle Control Module (TCM)





1. TCM Connector and Terminal Function





2. TCM Terminal Function

Connector [CHG-AA]










TCM Terminal Input/ Output Signal

Connector [CHG-AA]













Connector [CHG-BB]

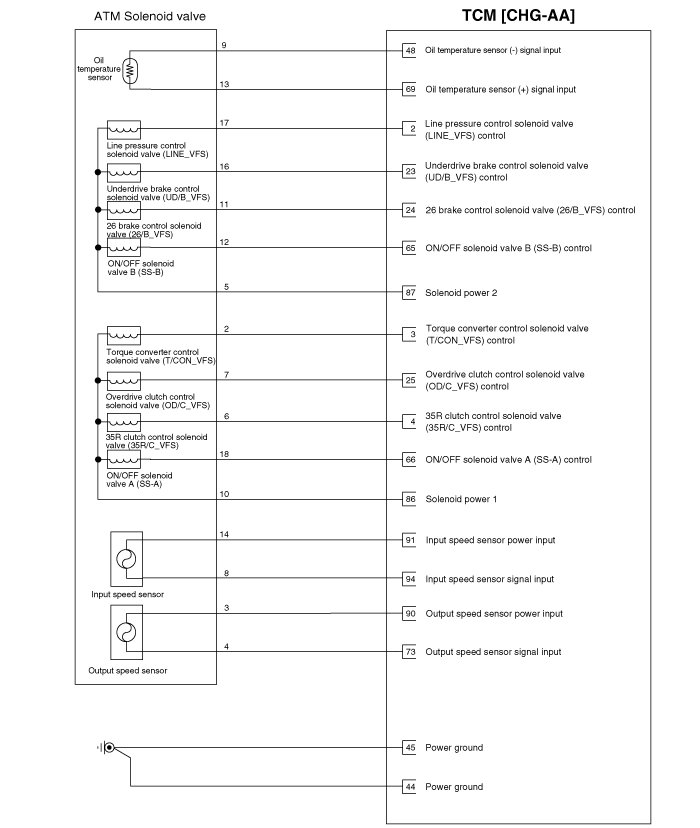

Circuit Diagram
