System Specifications

Specifications

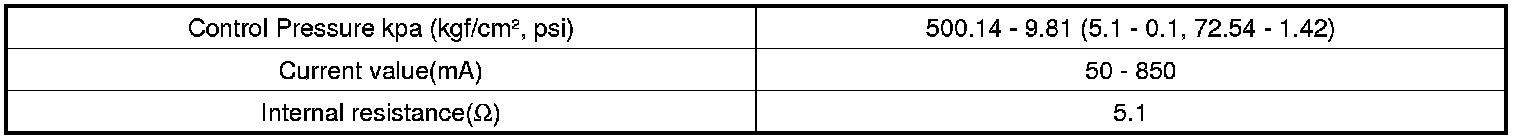

VFS: Variable Force Solenoid

Sensors
Input Speed Sensor
- Type: Hall effect sensor
- Specifications





Output Speed Sensor
- Type: Hall effect sensor
- Specifications






Oil Temperature Sensor
- Type: Negative thermal coefficient type
- Specifications






Inhibitor Switch
- Type: Combination of output signals from 4 terminals
- Specifications






Solenoid Valves
Direct control VFS[26/B, T/CON]
- Control type : Normal low type






Direct control VFS[UD/B, OD/C, 35R/C]
- Control Type : Normal high type






Line Pressure Control VFS
- Control type : Normal high type






ON/OFF Solenoid Valve(SS-A, SS-B)
- Control type : Normal low type





Solenoid Valve Operation Table





X : Connected status
x : Connected at vehicle speed above 8km/h

Tightening Torques

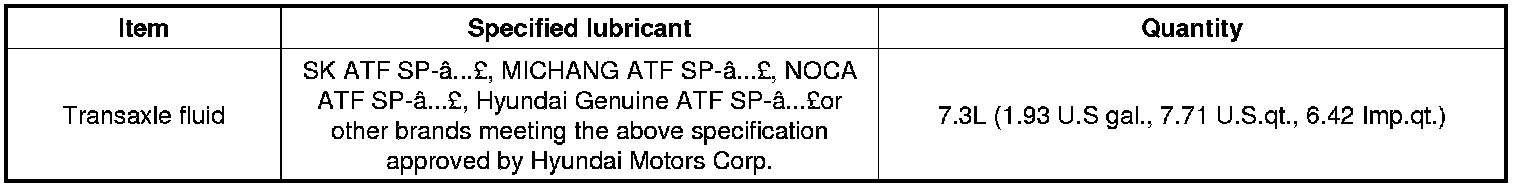

Lubricants





Sealant
