Antilock Brakes / Traction Control Systems

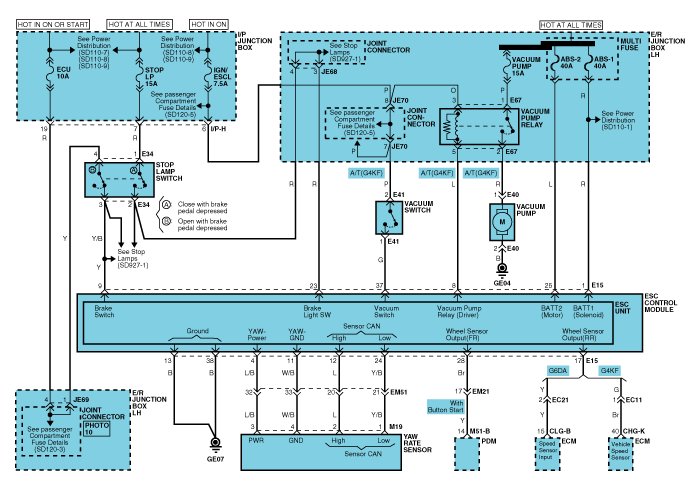

Circuit Diagram - ESC (1)

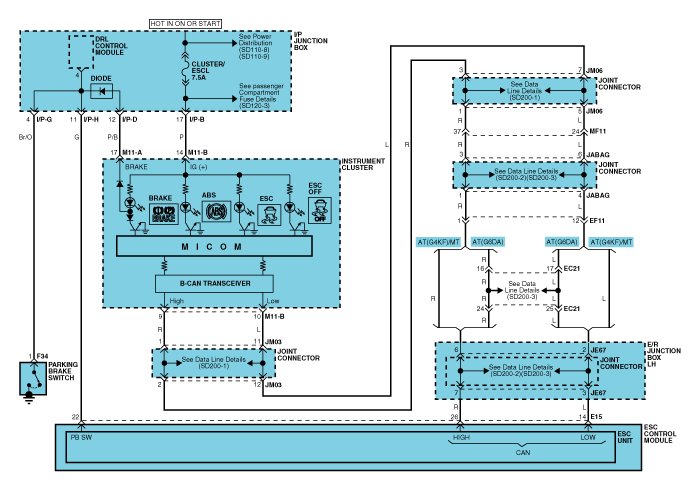

Circuit Diagram - ESC (2)





Circuit Diagram - ESC (3)

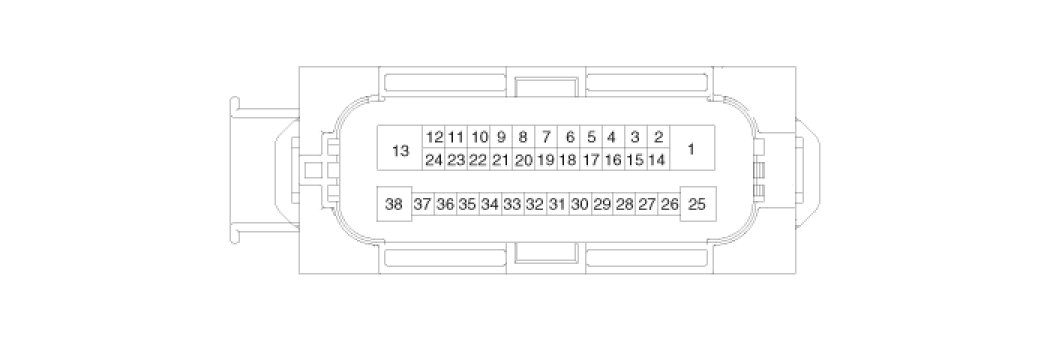

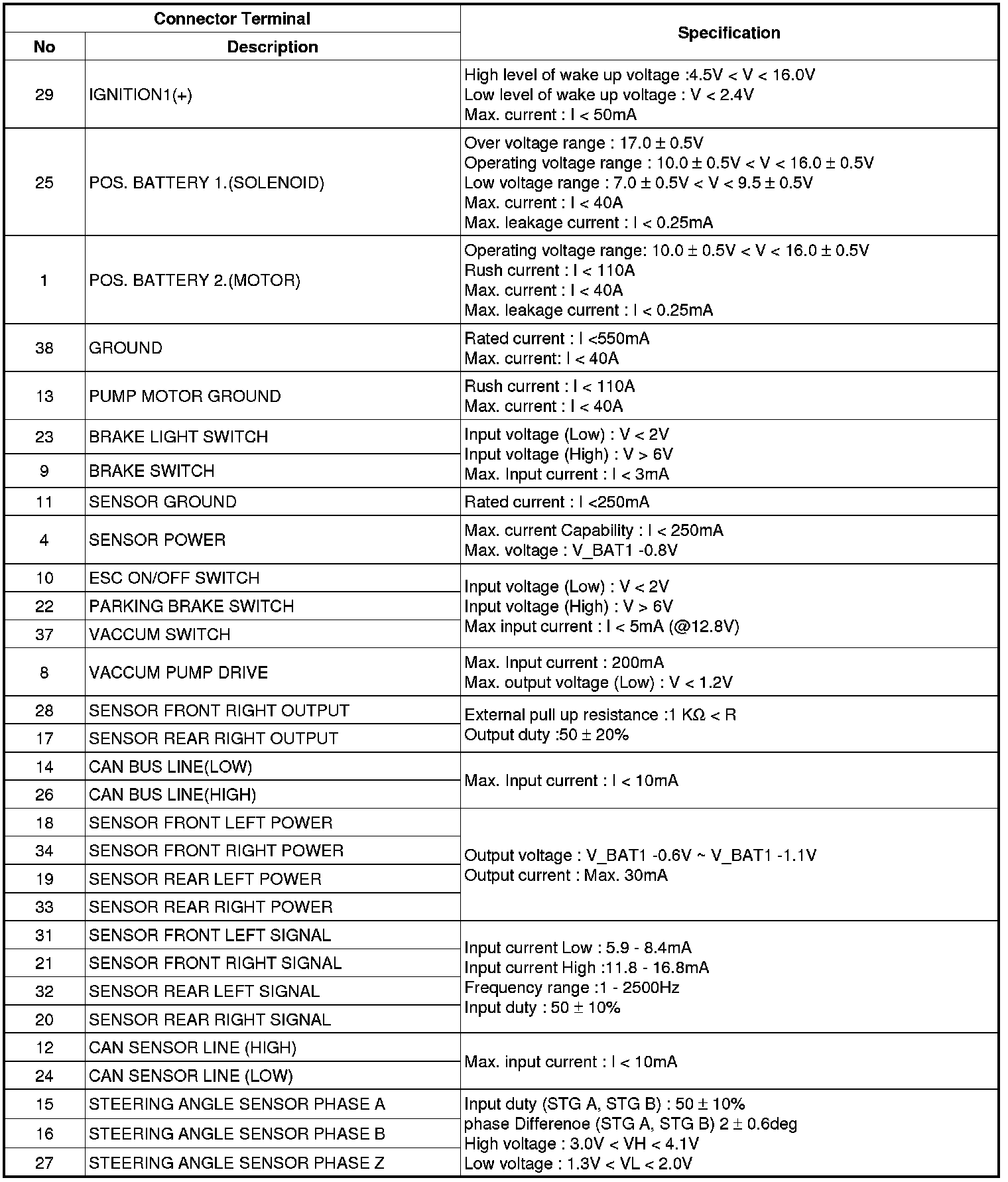

ESP Connector Input/Output
