System Specifications

Specifications

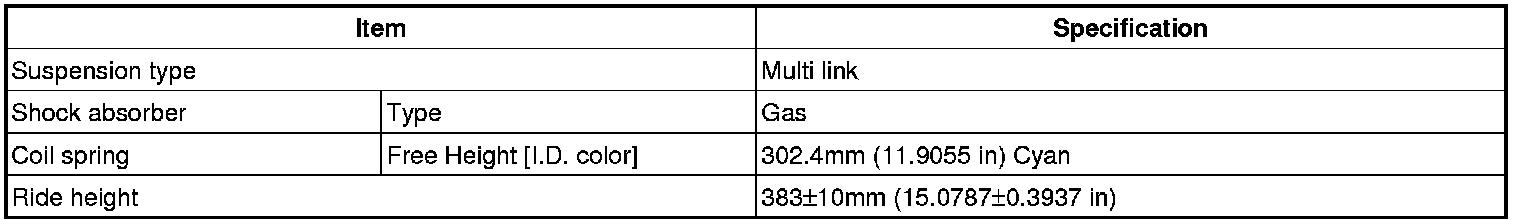

Front Suspension

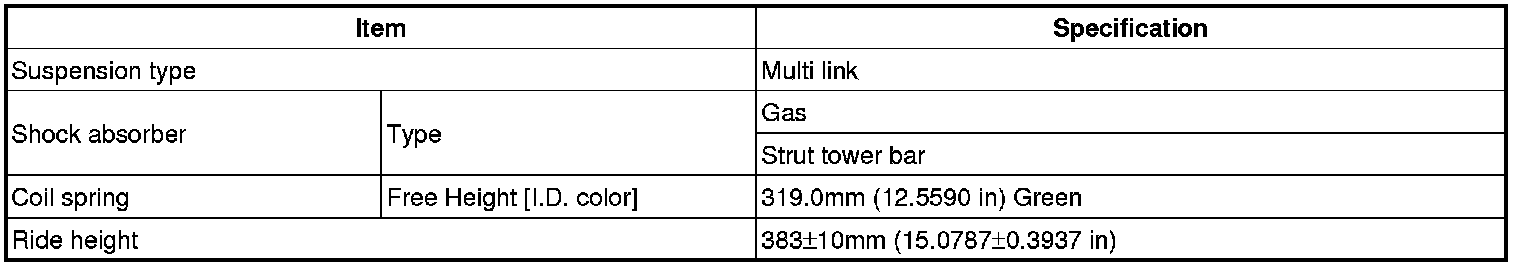

Rear Suspension

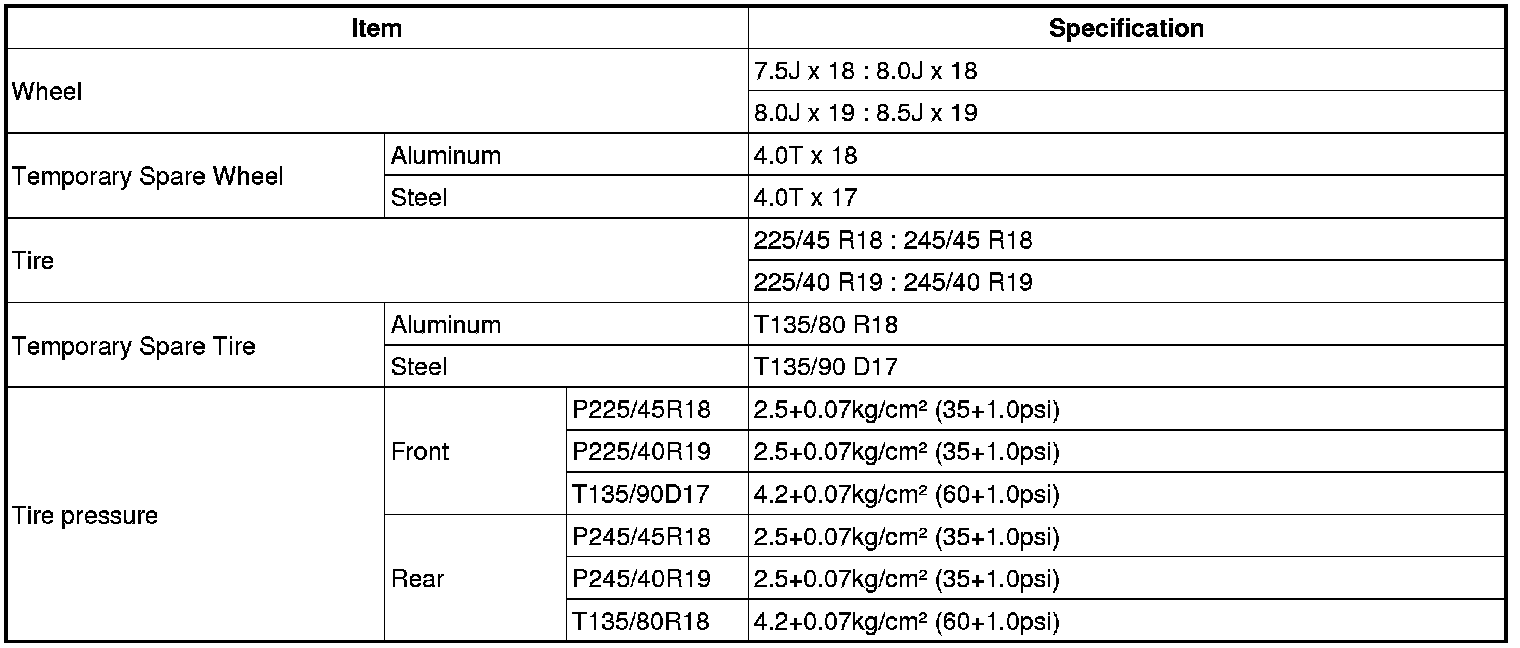

Wheel & Tire

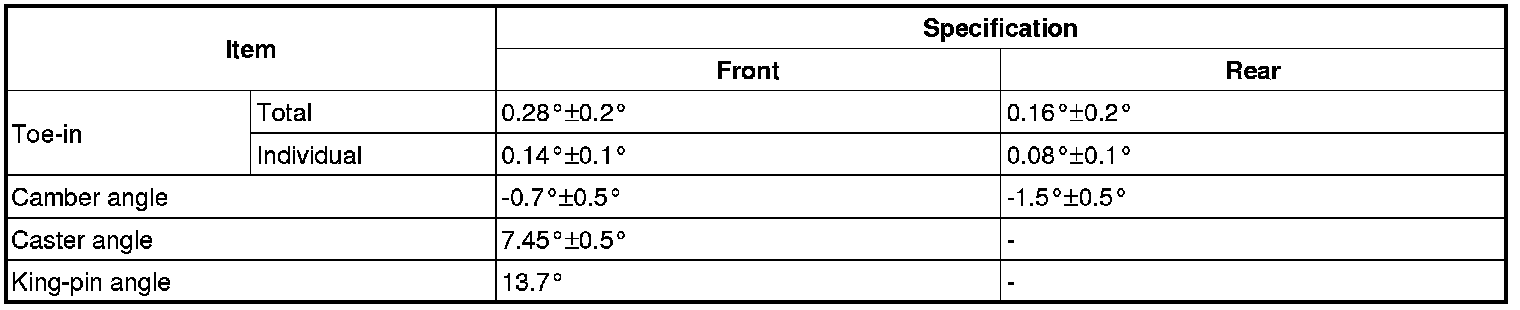

Wheel Alignment

Tightening Torques

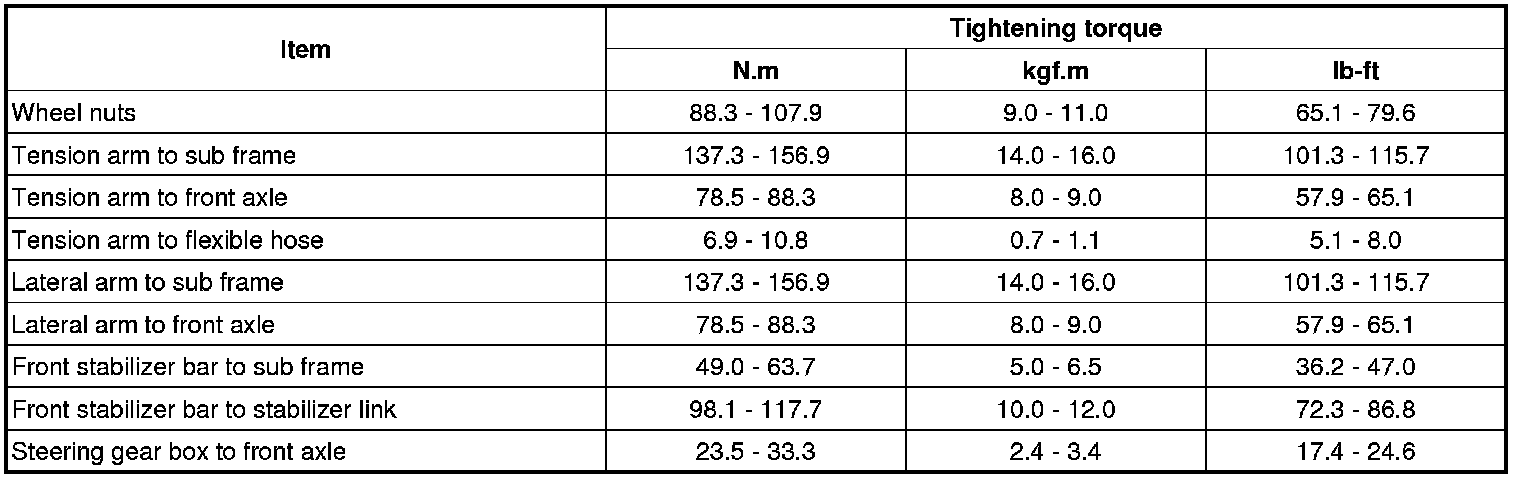

Front Suspension

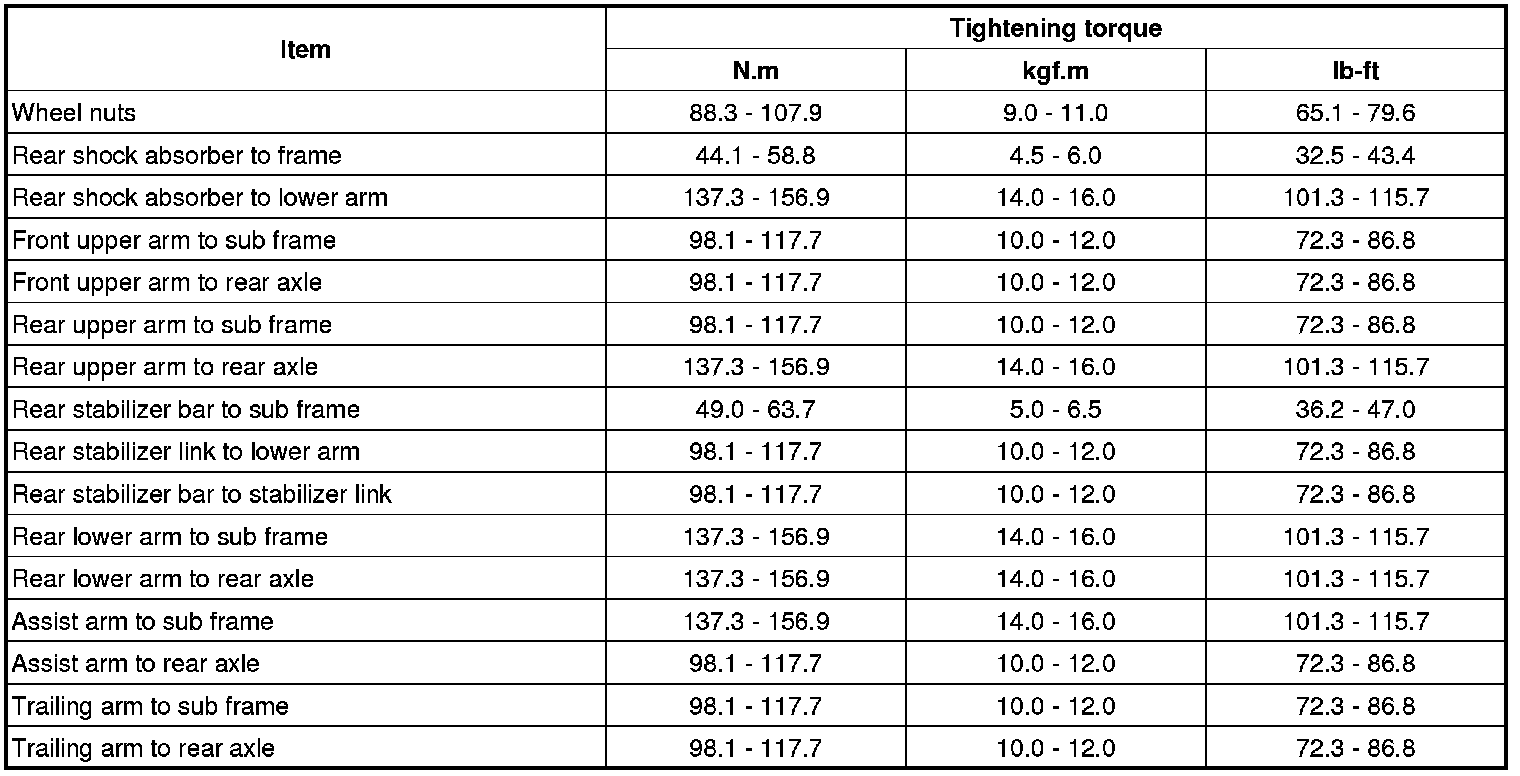

Rear Suspension
