Axle Nut





Axle Nut

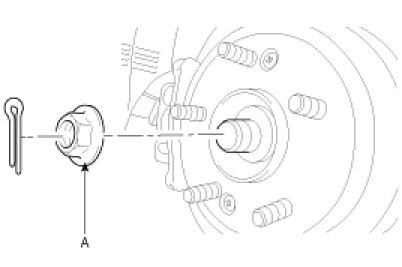

Remove the split pin(, then remove castle nut(A) and washer from the front hub under applying the break.

Tightening torque 200 - 280N.m (20.0 - 28.0kgf.m, 144.6 - 202.5lb-ft)
