Fluid - Transfer Case: Testing and Inspection

Inspection

CAUTION:
- Transfer oil should be inspected and refilled every 60000 km (40000 mile) / 4 year.

1. Remove the under cover (A).




2. Remove the oil filler plug (A).




3. Check the oil level.

CAUTION:

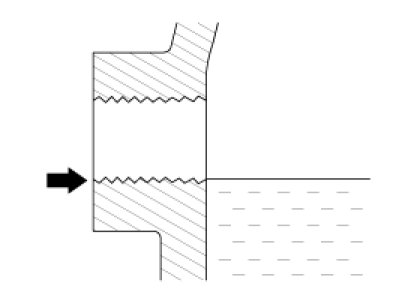

Oil level must be up to fill the hole, if not, add oil until it runs over.





4. Install the oil filler plug with new gasket.

Tightening torque :
39.2 - 58.8N.m (4.0 - 6.0kgf.m, 28.9 - 43.4lb-ft)

5. Install the under cover.

Tightening torque :
7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)
