Fuse: Locations




Fuse Locations

Interior Fuse Panel

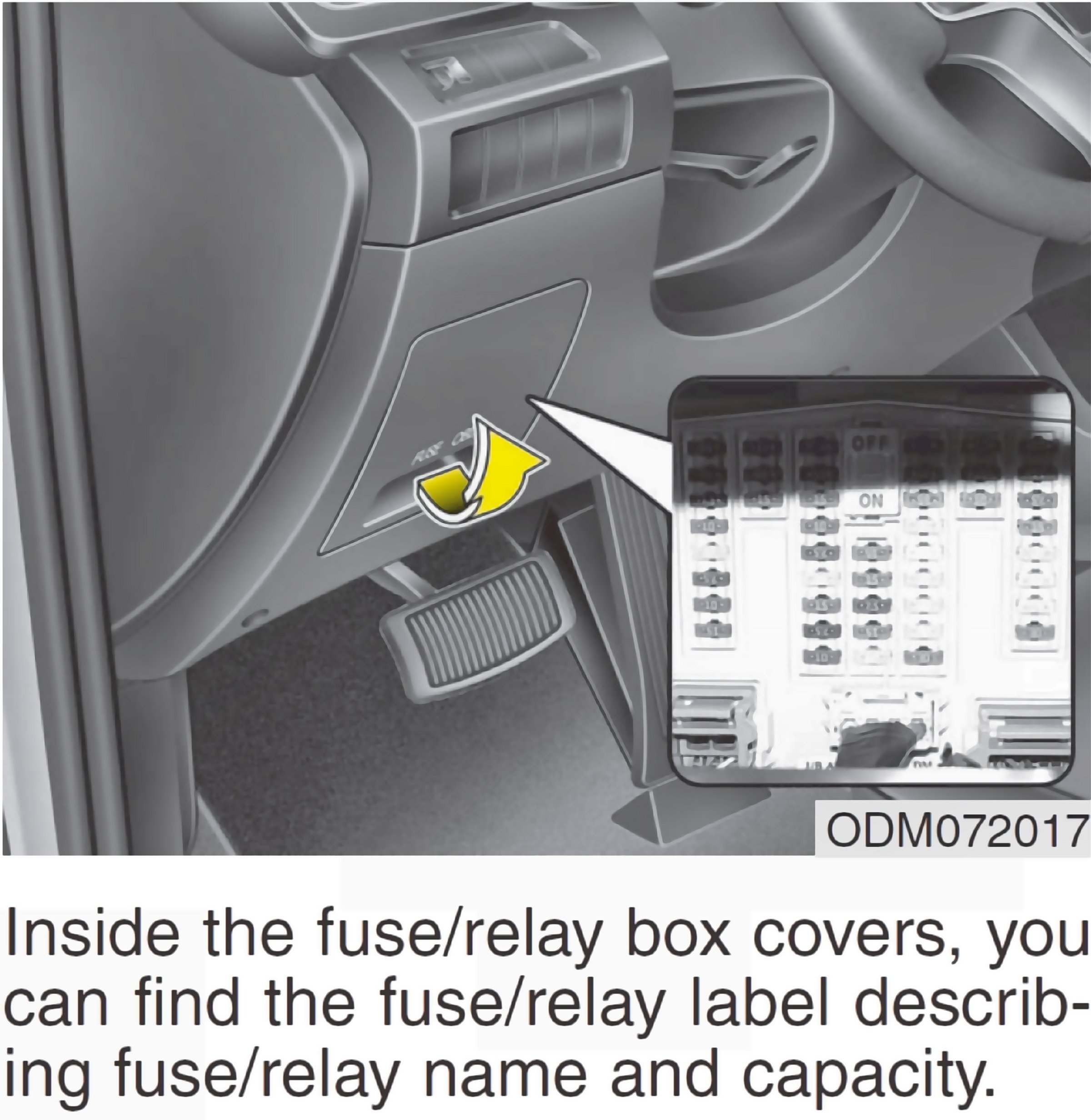

Fuse Panel Location:

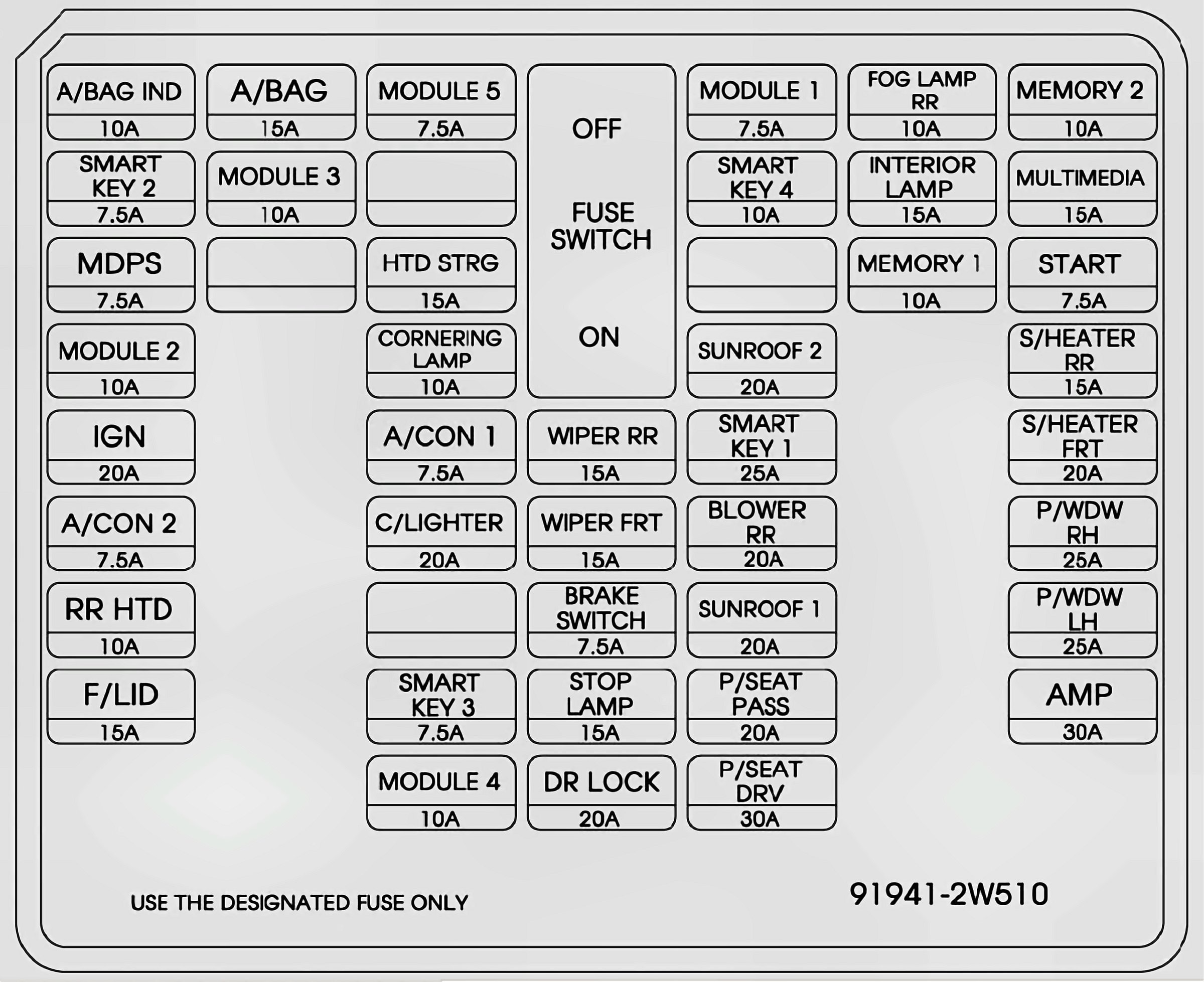

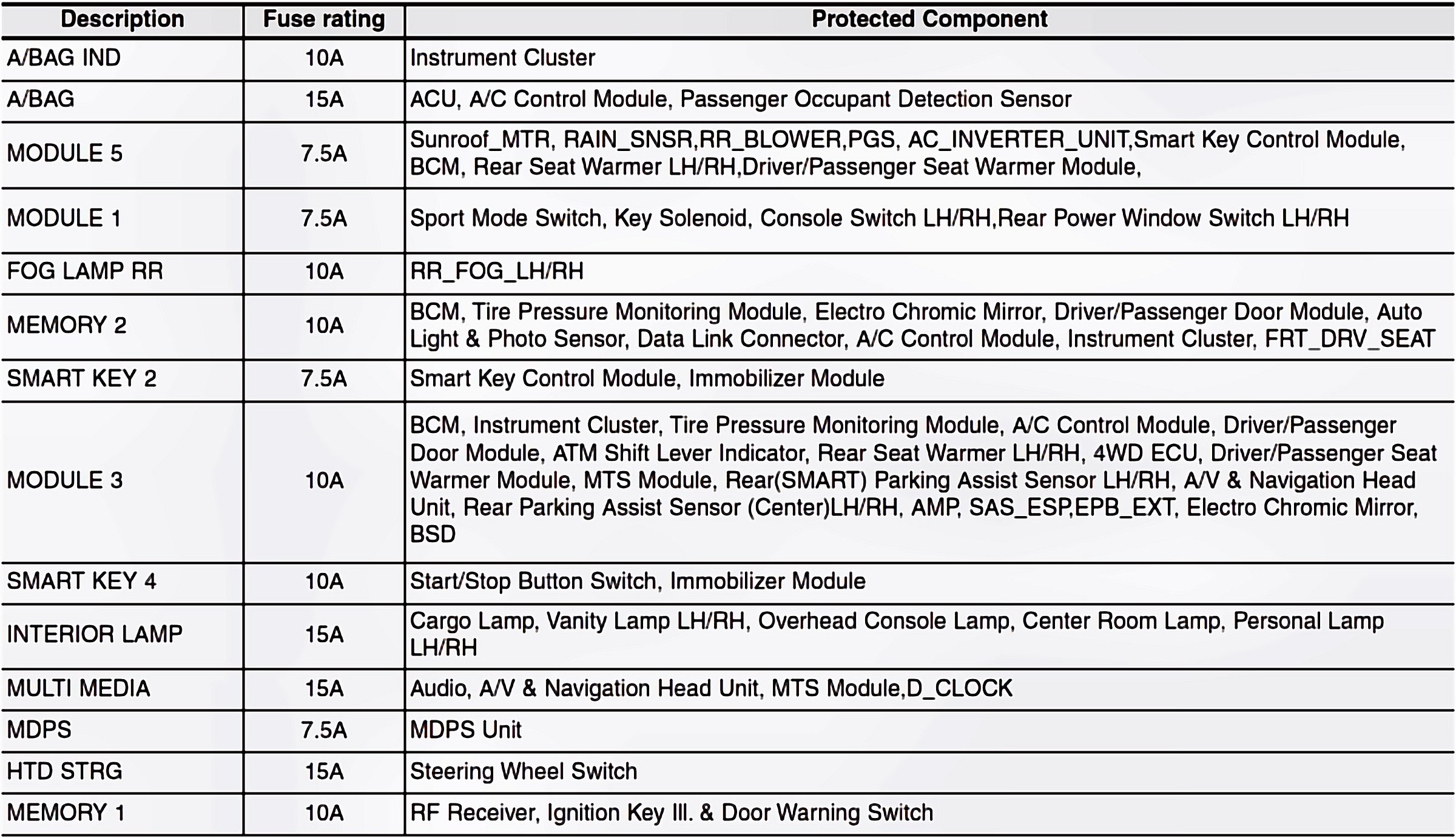

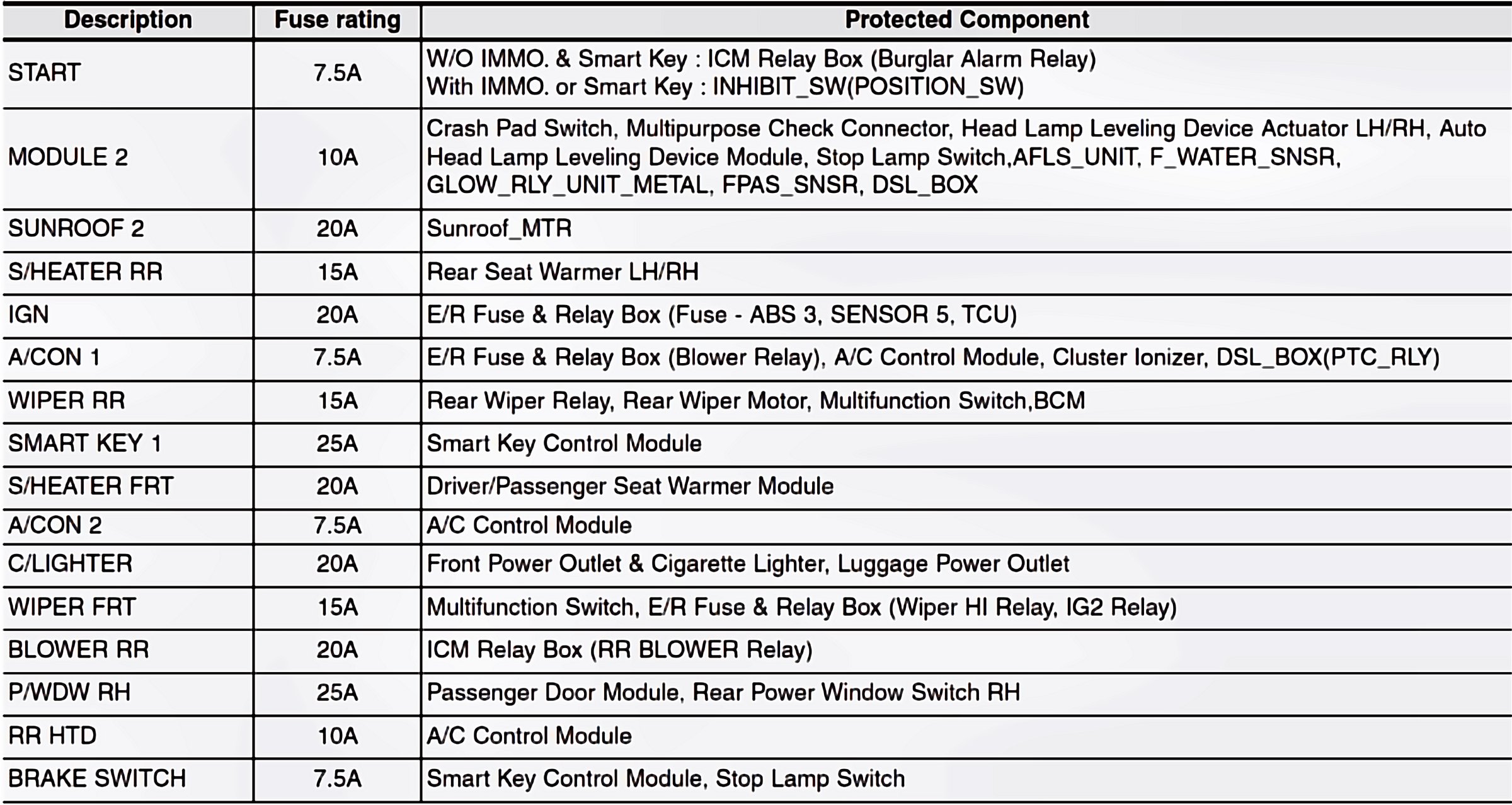

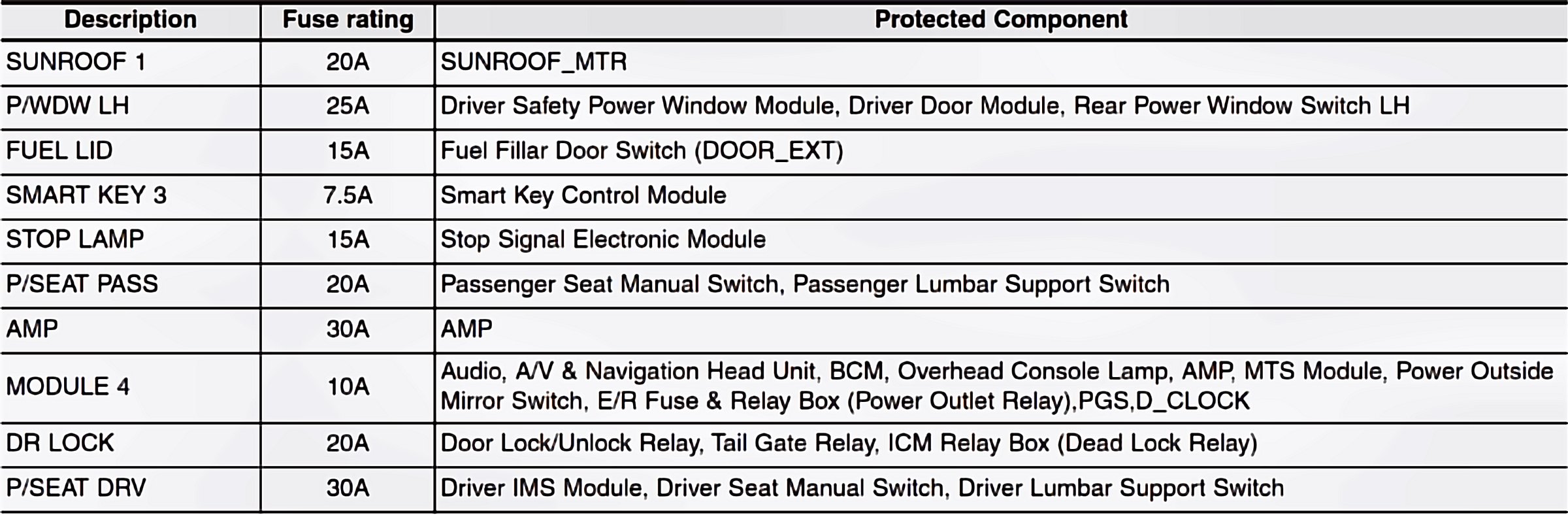

Fuse Locations:

















Engine Compartment Fuse Panel

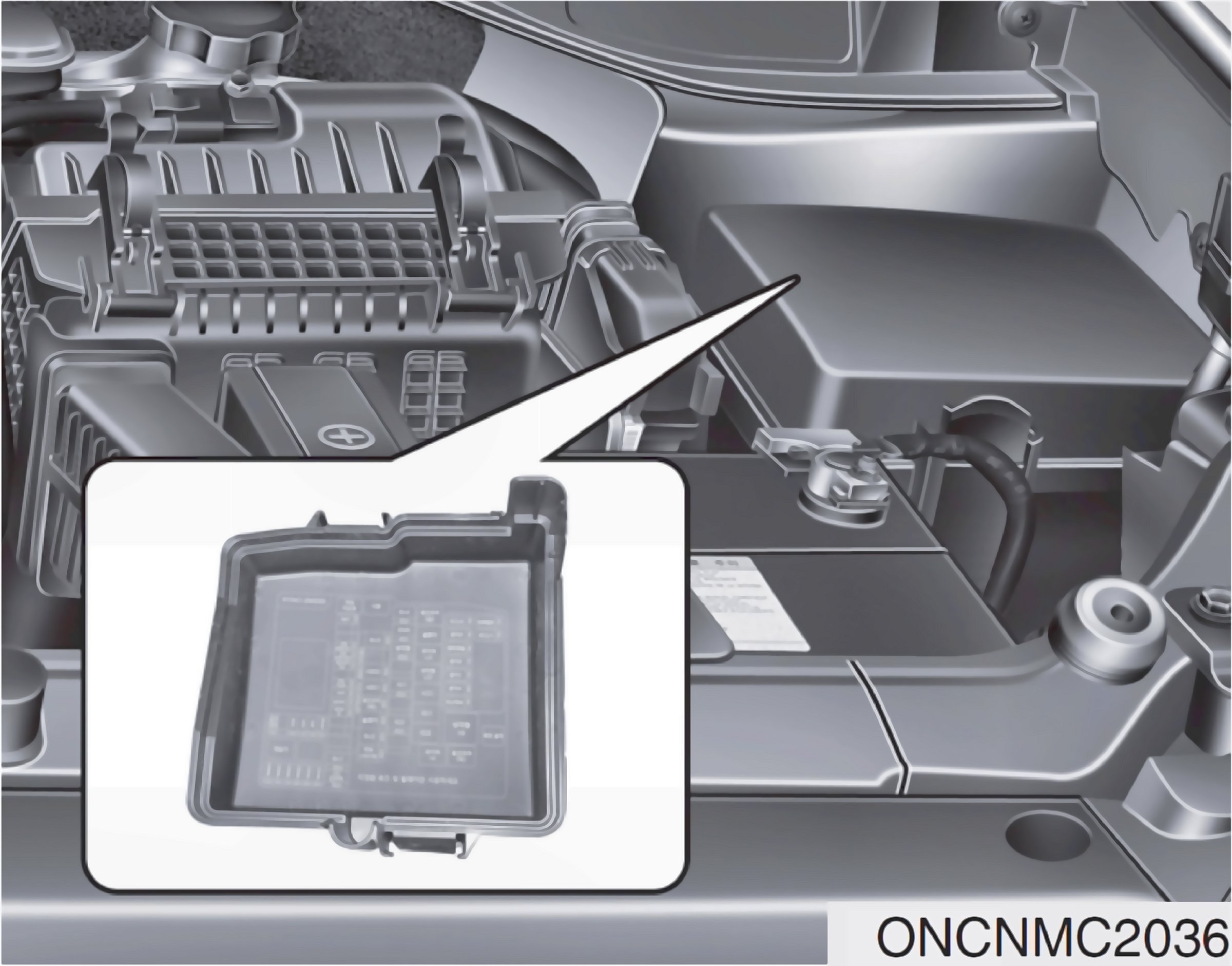

Fuse Panel Location:

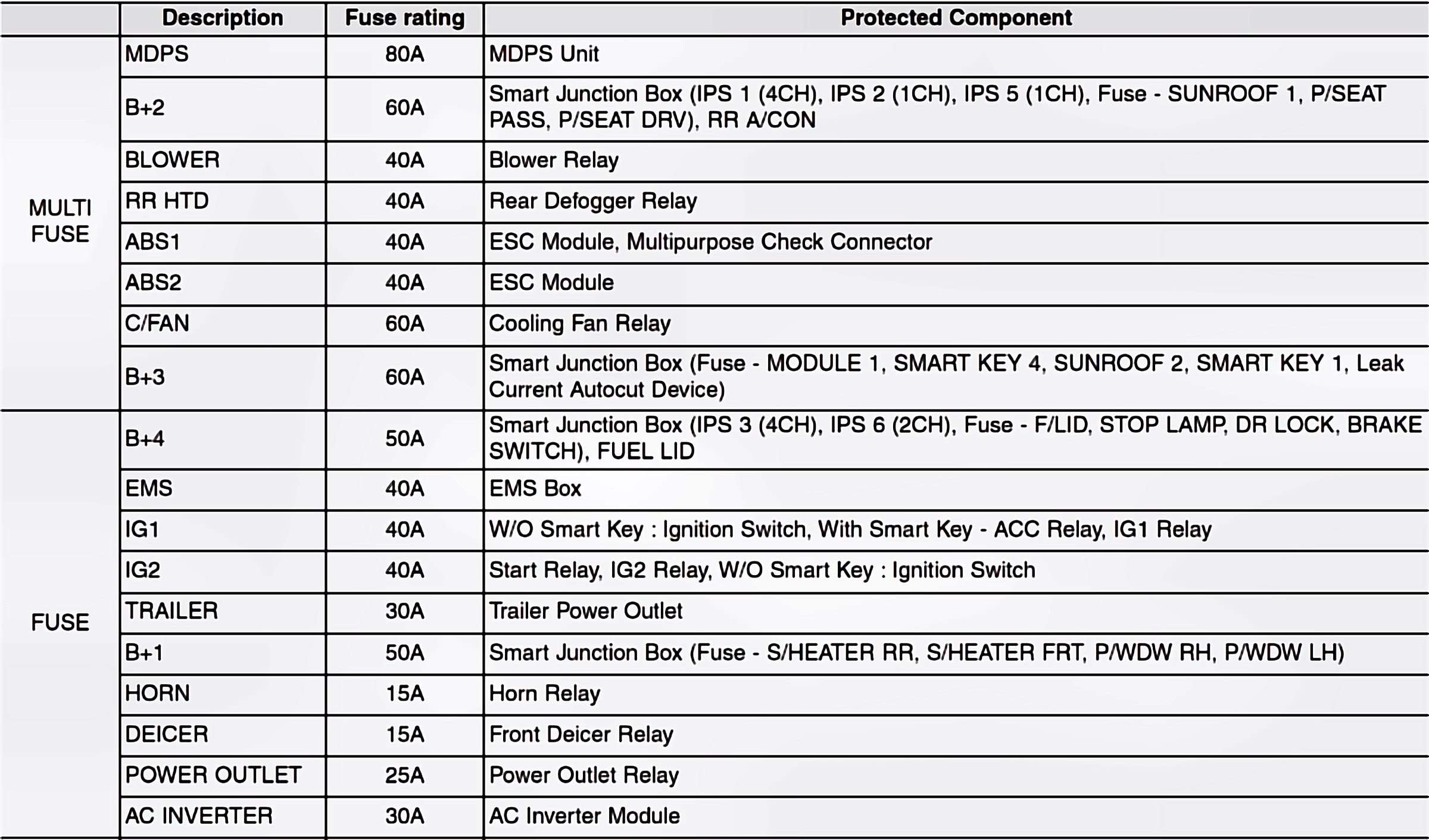

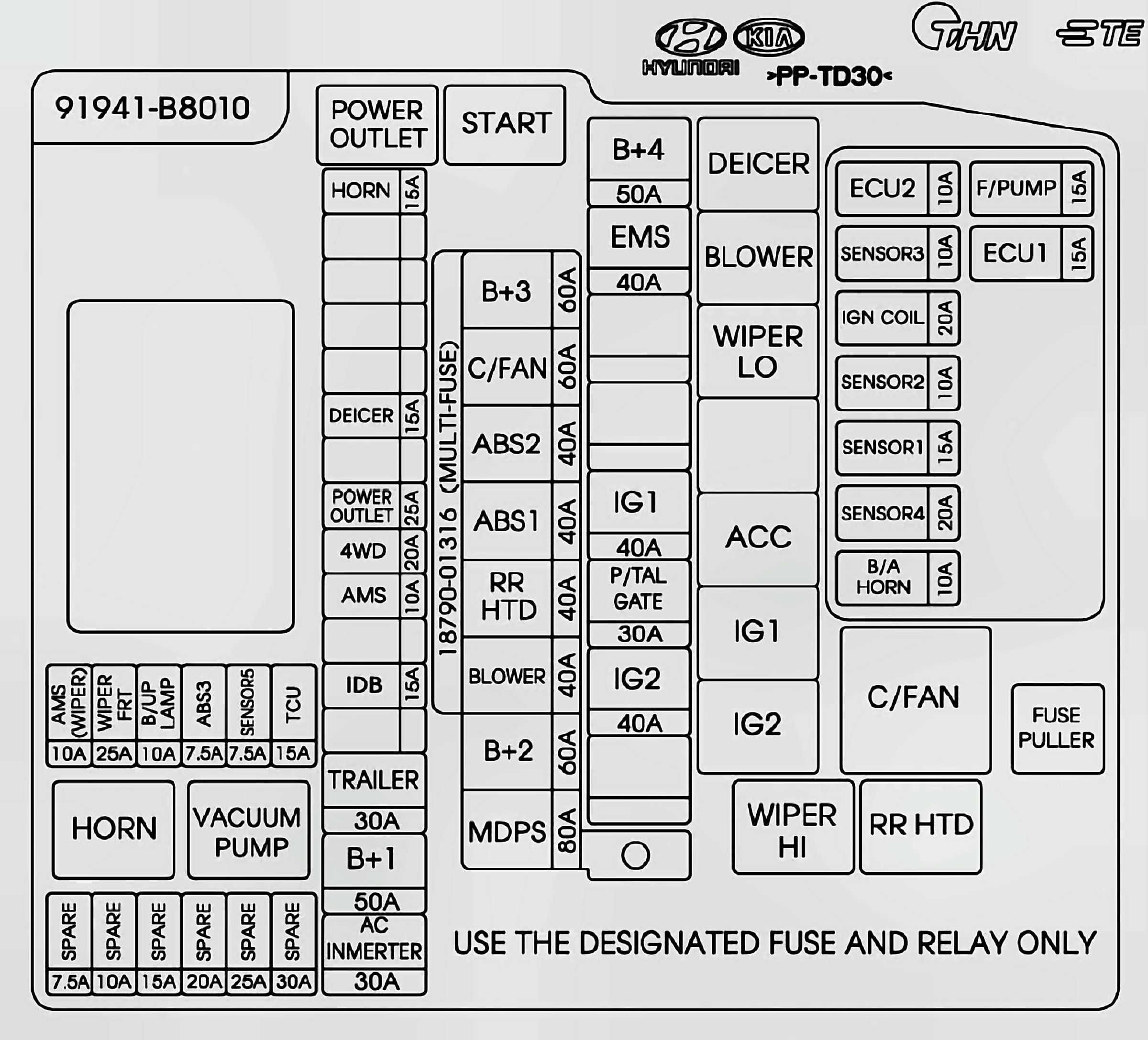

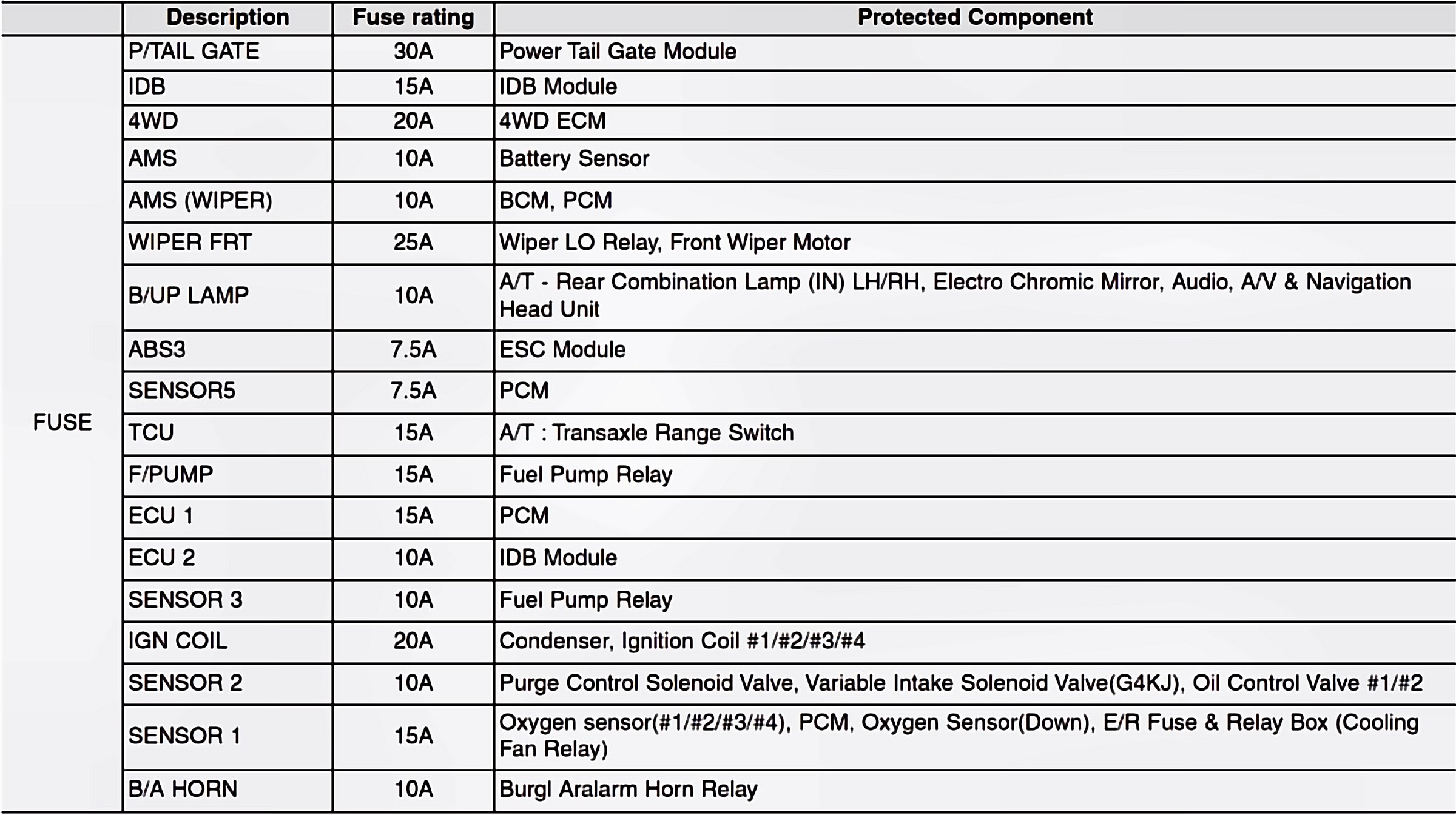

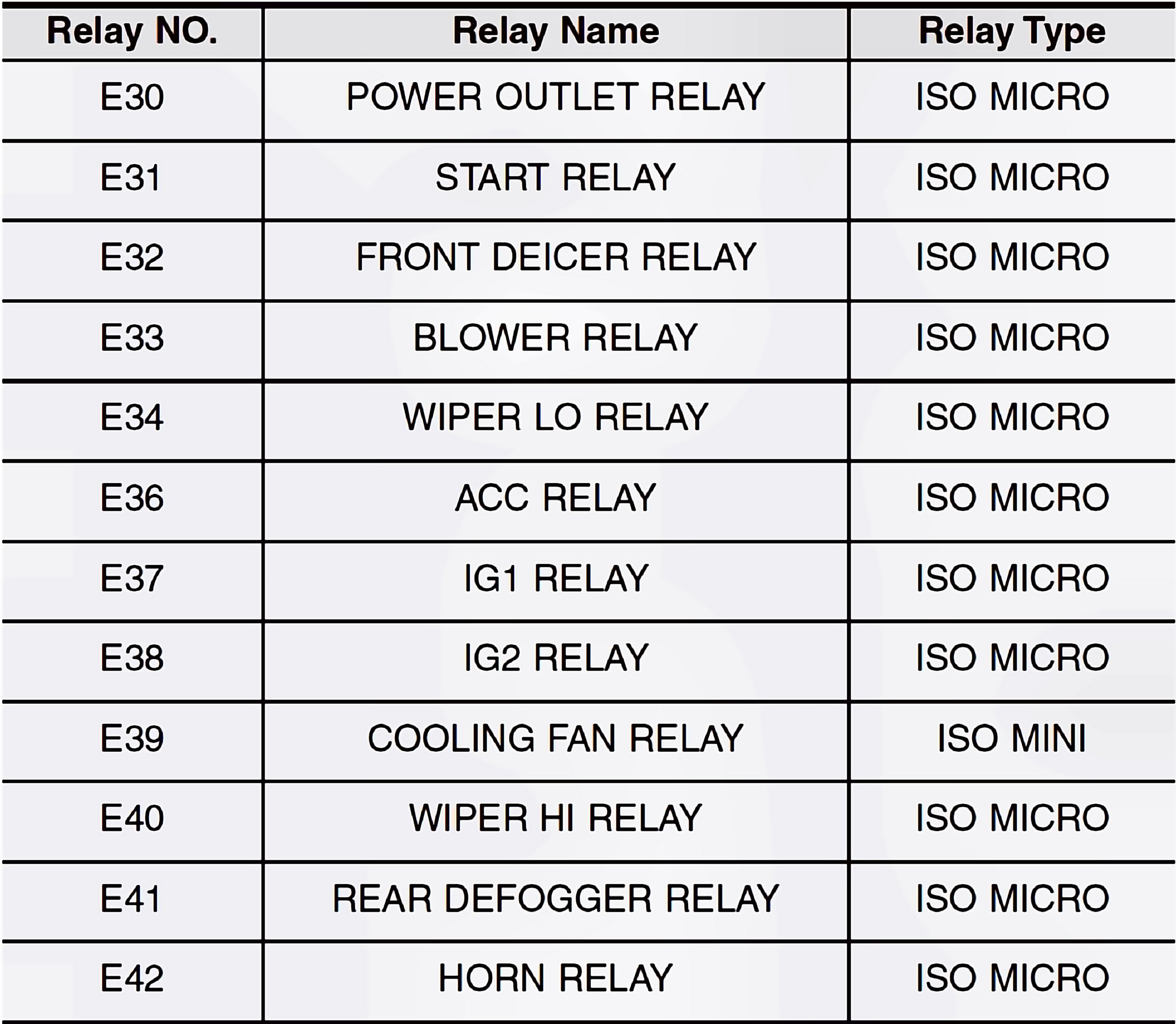

Fuse Locations:
