Hybrid Control System

Specifications

Hybrid Control System

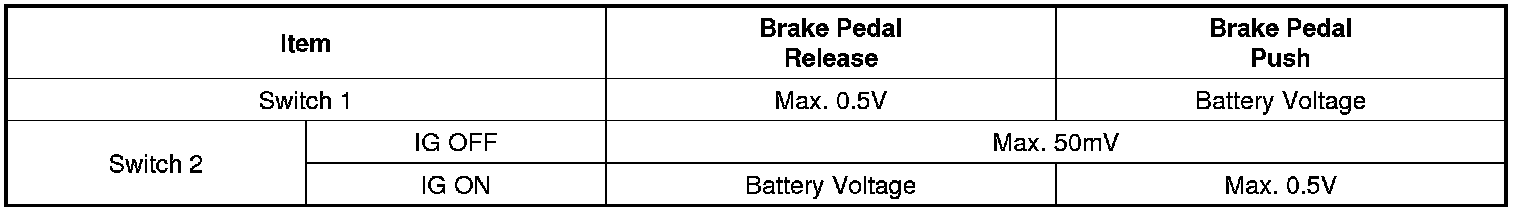

Brake Switch
- Type: ON/OFF Switch
- Specification

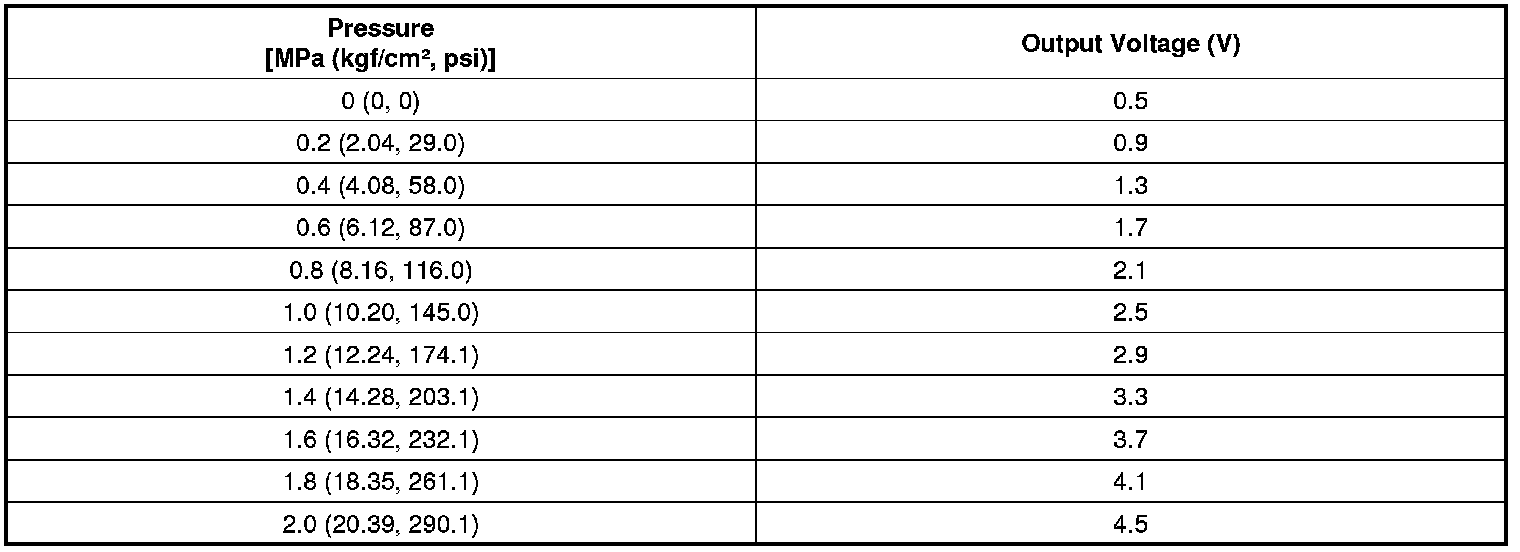

Clutch Pressure Sensor (CPS)
- Type: Piezo-Resistive Pressure Sensor
- Specification (Vref = 5.0V)

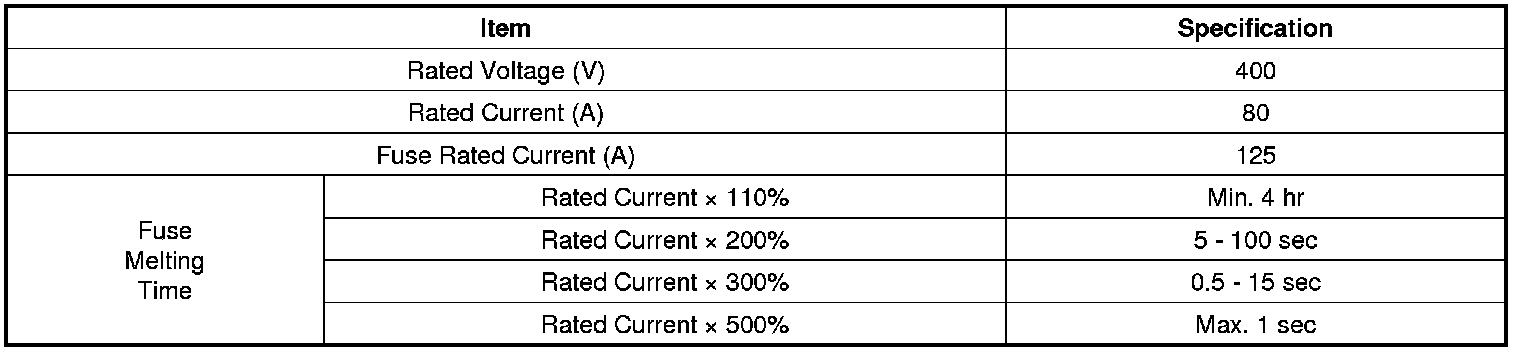

DC Fuse
- Specification










High Voltage Battery System

Battery Pack Assembly
- Type: LIPB (Lithium ion Polymer Battery), Pouch type
- Specification

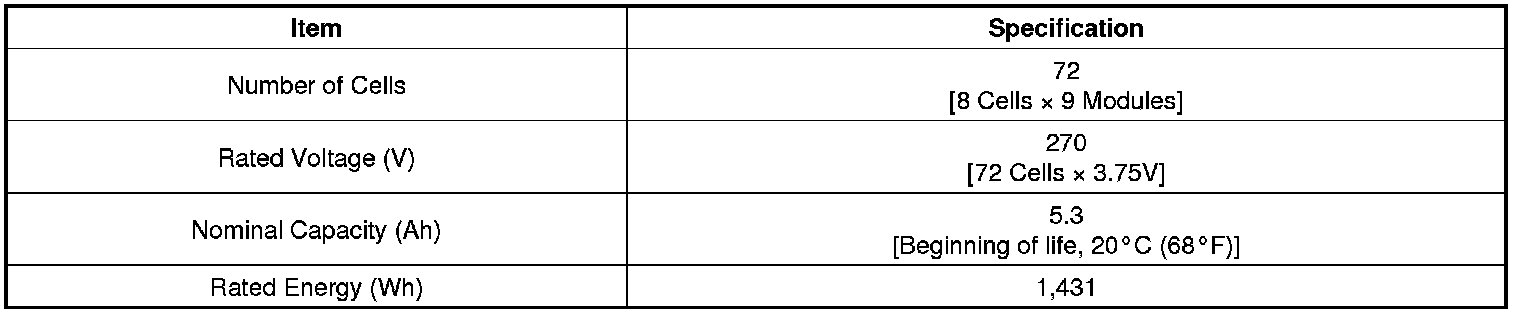

[General Specification]






NOTE:
1. Rated Voltage: Terminal voltage at Rated 1C discharge, SOC 55%, 20°C (68°F)
2. Rated Energy = Rated Voltage • Nominal Capacity

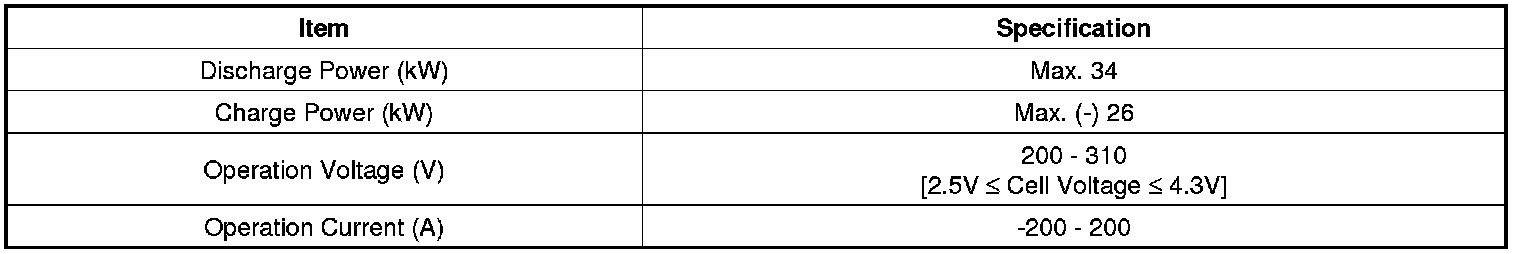

[Operational Specification]






Power Relay Assembly (PRA)
- Specification






High Voltage Battery Control System

Safety Plug
- Specification

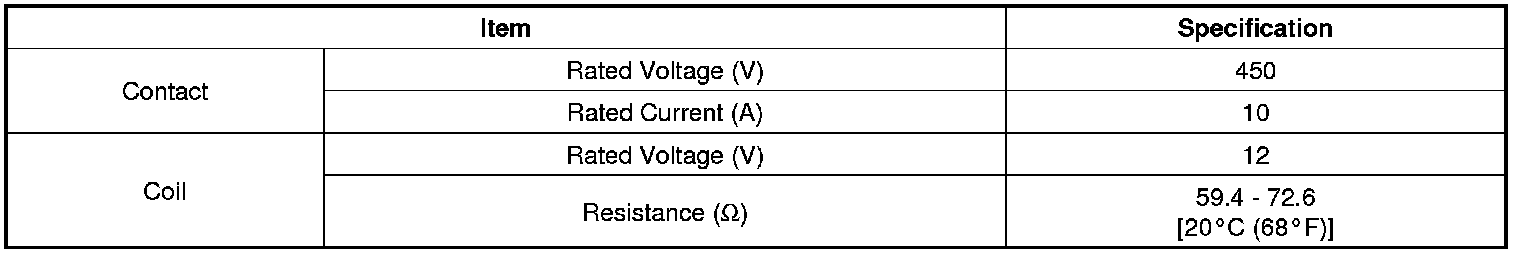

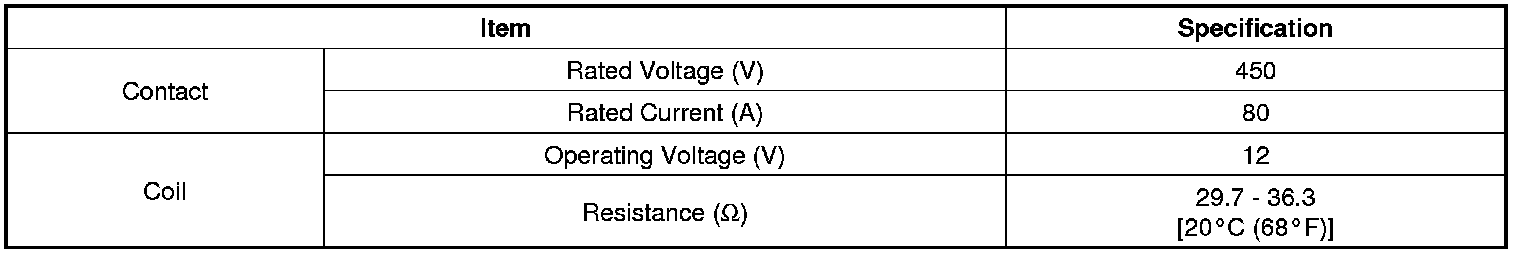

Main Relay
- Specification






Pre-Charge Relay
- Specification

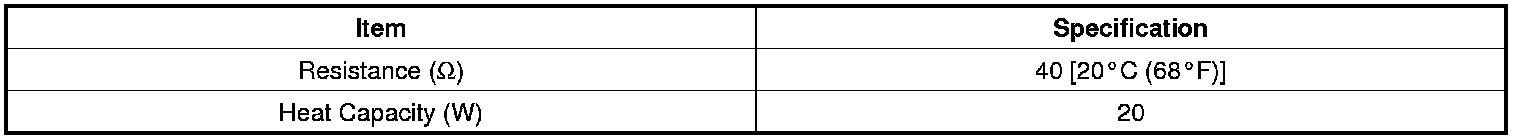

Pre-Charge Resistor
- Specification

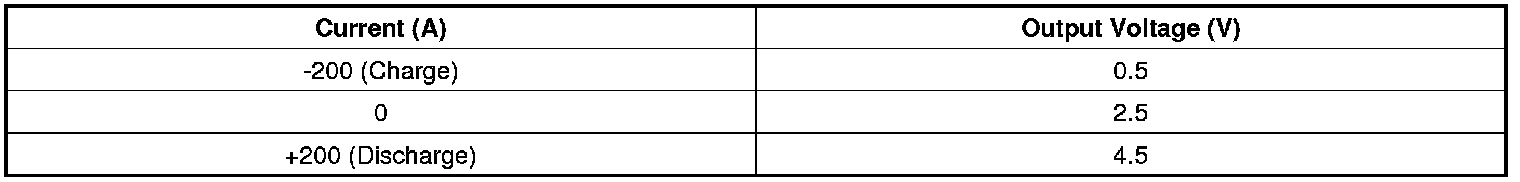

Battery Current Sensor
- Specification

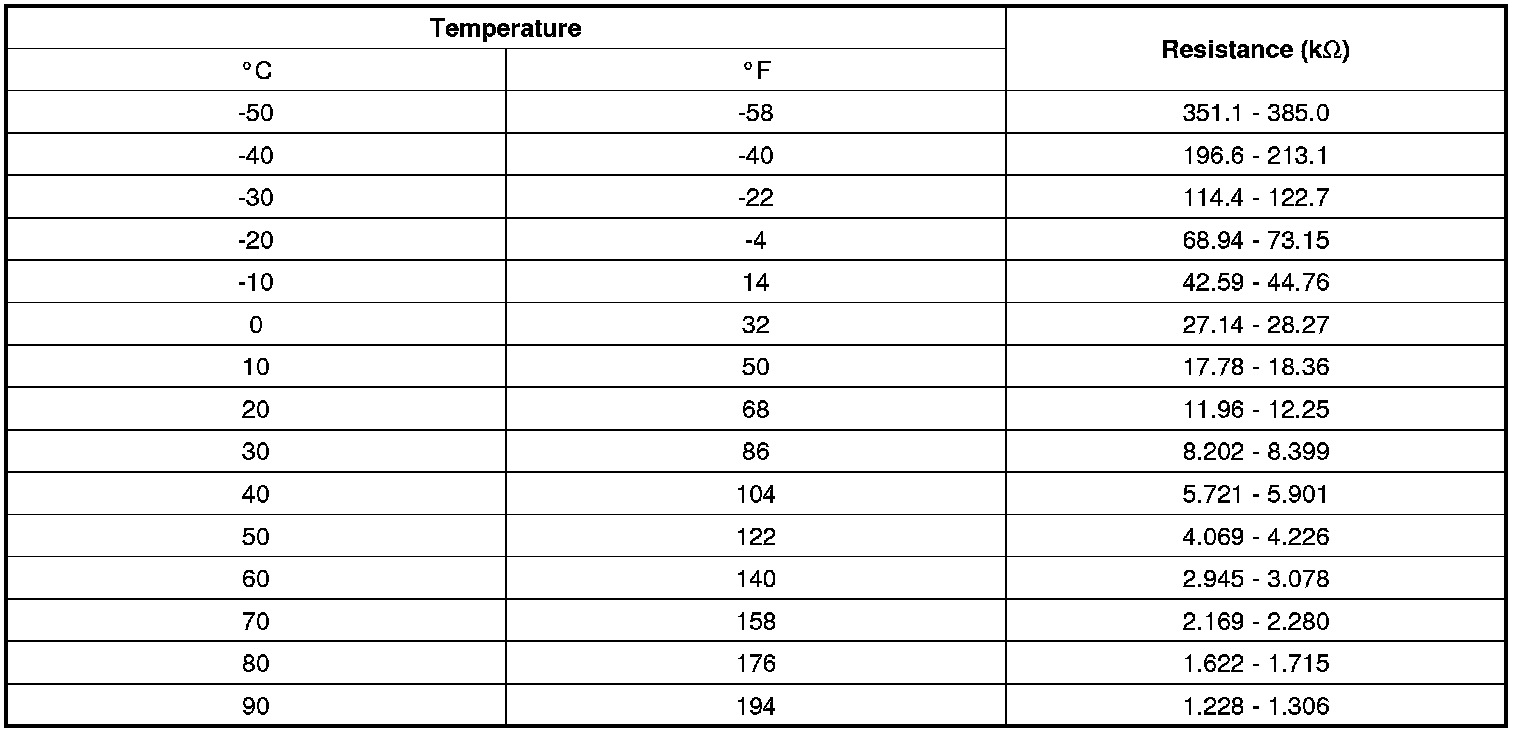

Battery Temperature Sensor (HEV)
- Type: Thermistor type
- Specification
[Air Inlet]









[Cell]

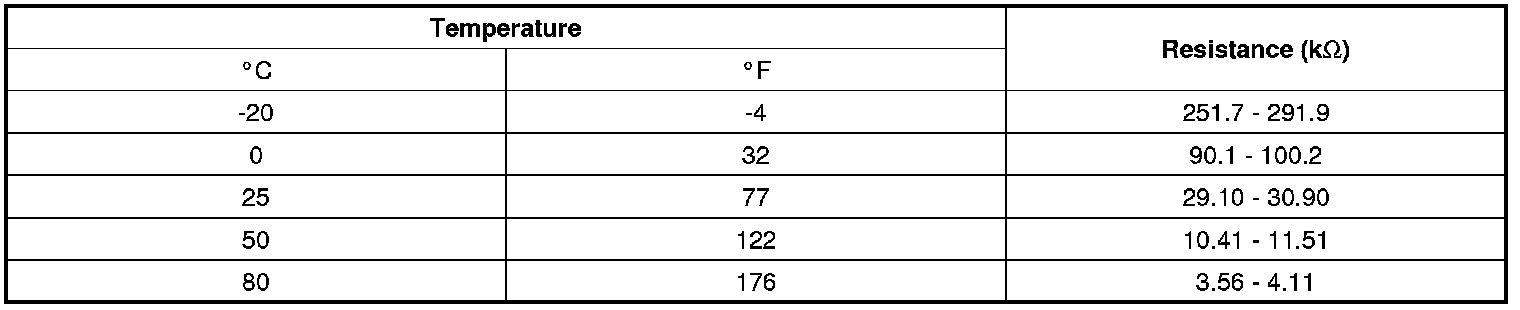

Auxiliary Battery Temperature Sensor
- Type: Thermistor type
- Specification






High Voltage Battery Cooling System

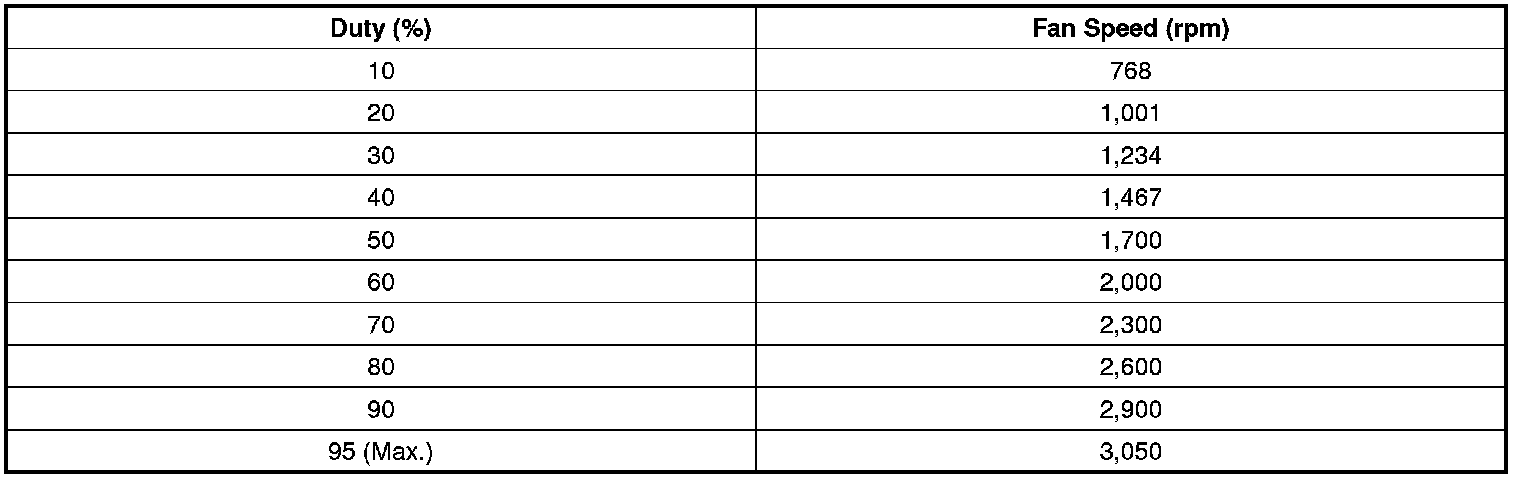

Cooling Fan
- Specification

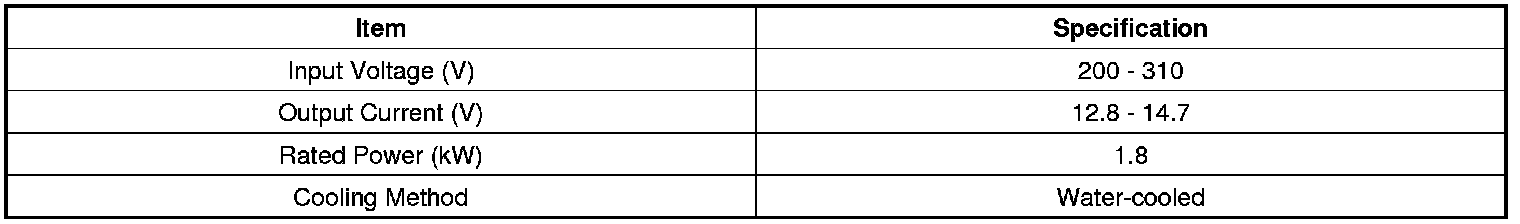

Low Voltage DC/DC Converter (LDC)

Low Voltage DC/DC Converter (LDC)
- Specification






Tightening Torques

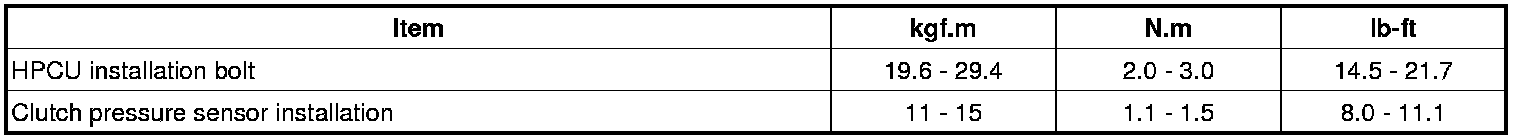

Hybrid Control System





High Voltage Battery System





High Voltage Battery Control System

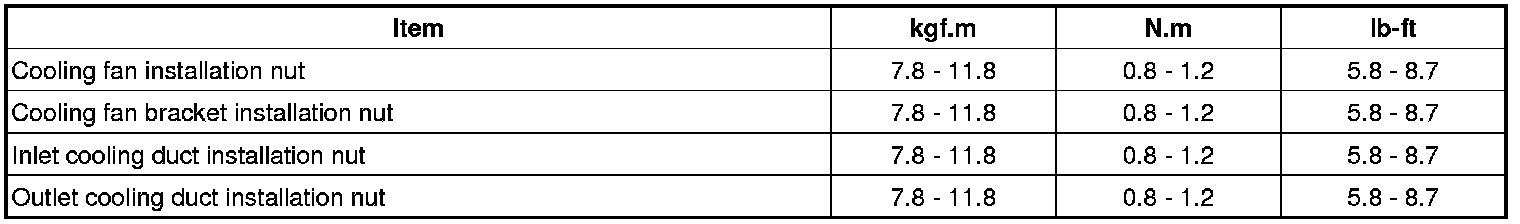

High Voltage Battery Cooling System





Low Voltage DC/DC Converter (LDC)
