Dimmer Switch: Service and Repair
Removal 1.
Disconnect the negative (-) battery terminal.
2.
Remove the crash pad lower switch(A).
3.
Remove the crash pad side switch assembly (A).
4.
The installation is the reverse of removal.

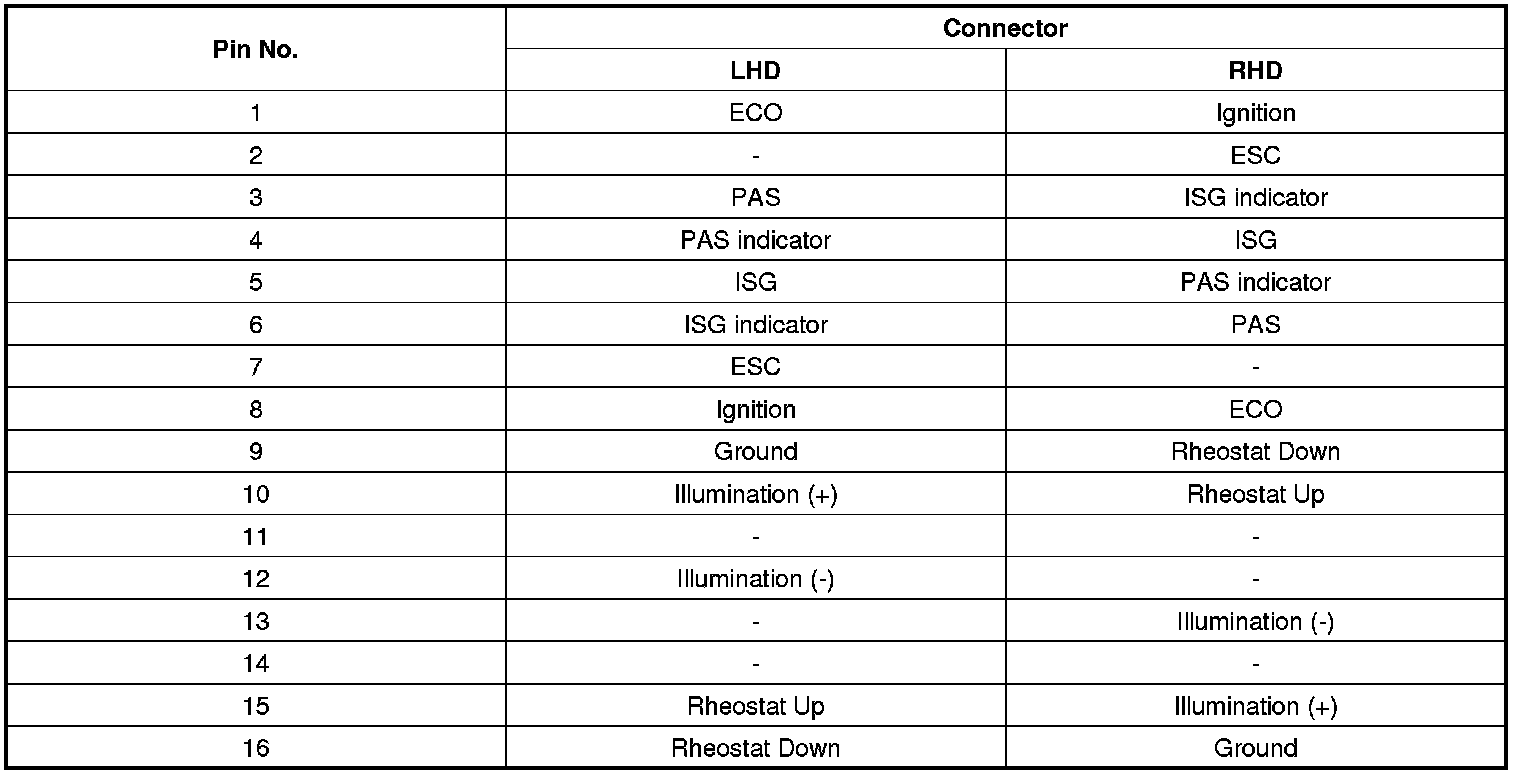

[Crash pad side switch connector]
