Windshield Washer Motor: Testing and Inspection

Inspection

1. With the washer motor connected to the reservoir tank, fill the reservoir tank with water.

NOTE:
Before filling the reservoir tank with water, check the filter for foreign material or contamination. if necessary, clean the filter.

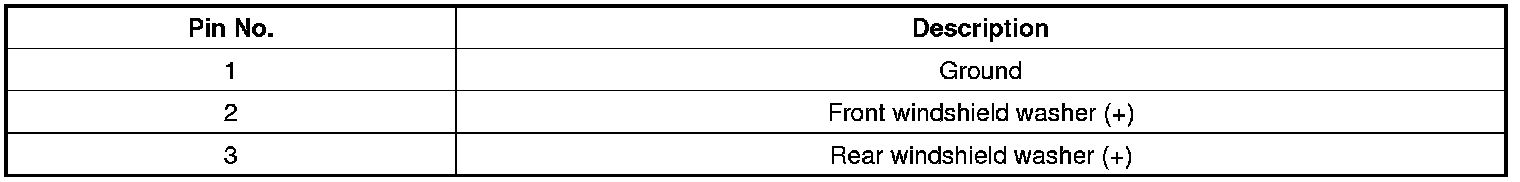

2. Connect positive (+) and negative (-) battery cables to terminals 3 and 2 respectively.
3. Check that the motor operates normally and the washer motor runs and water sprays from the rear nozzle.
4. If they are abnormal, replace the washer motor.
