Cruise Control Servo Cable: Adjustments

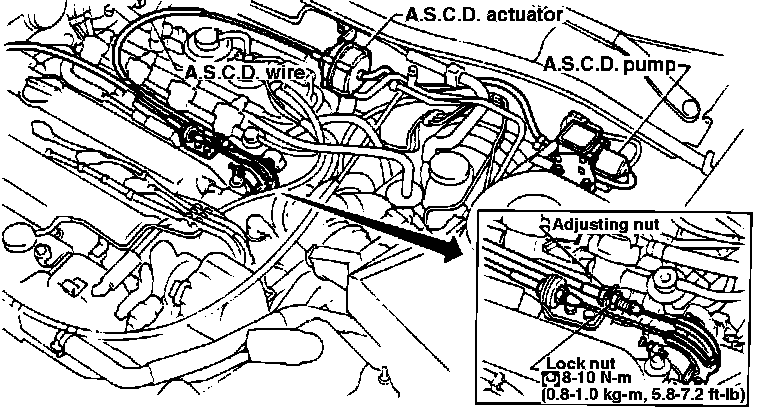

Fig. 90 A.S.C.D. Wire Adjustment.:

Loosen locknut Fig. 90. With throttle closed turn adjusting nut 1/2 to 1 turn in the direction that will loosen A.S.C.D. wire, then secure locknut. A.S.C.D. wire should not hold throttle open at idle position.
