Infiniti
>>
1992
>>
G20 L4-2.0L (SR20DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Backfire
>>
Through Intake
Through Intake

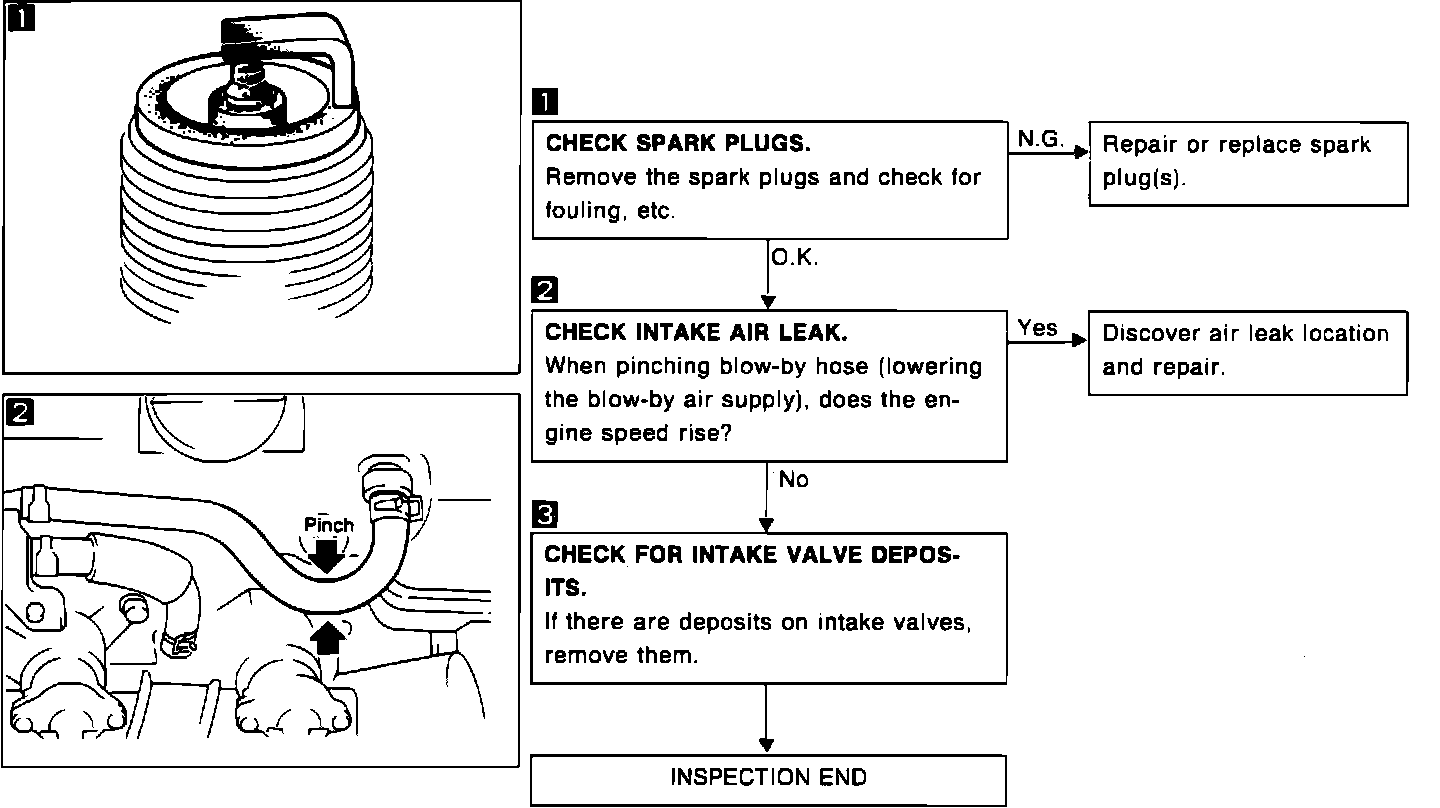

Fig. 84 Symptom, Backfire Through Intake:
