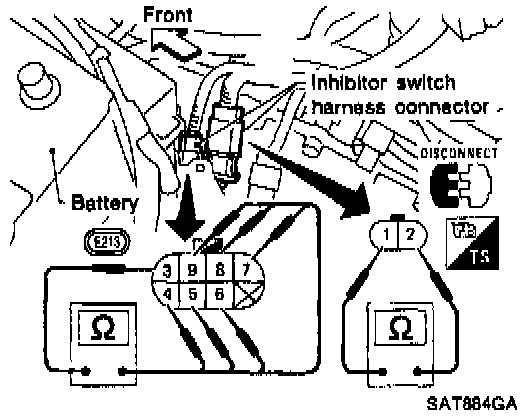

Inhibitor Switch Test:

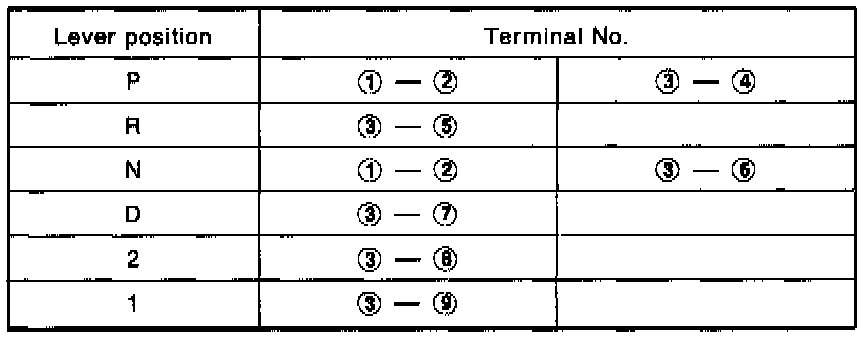

Inhibitor Switch Test Table:

Check continuity between terminals (1) and (2) and between terminals (3) and (4), (5), (6), (7), (8), (9) while moving selector lever through each range. There should be continuity in each combination.
