Home
>>
Infiniti
>>
1995
>>
G20 L4-2.0L (SR20DE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Timer/Control Unit
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
System Chart
System Chart

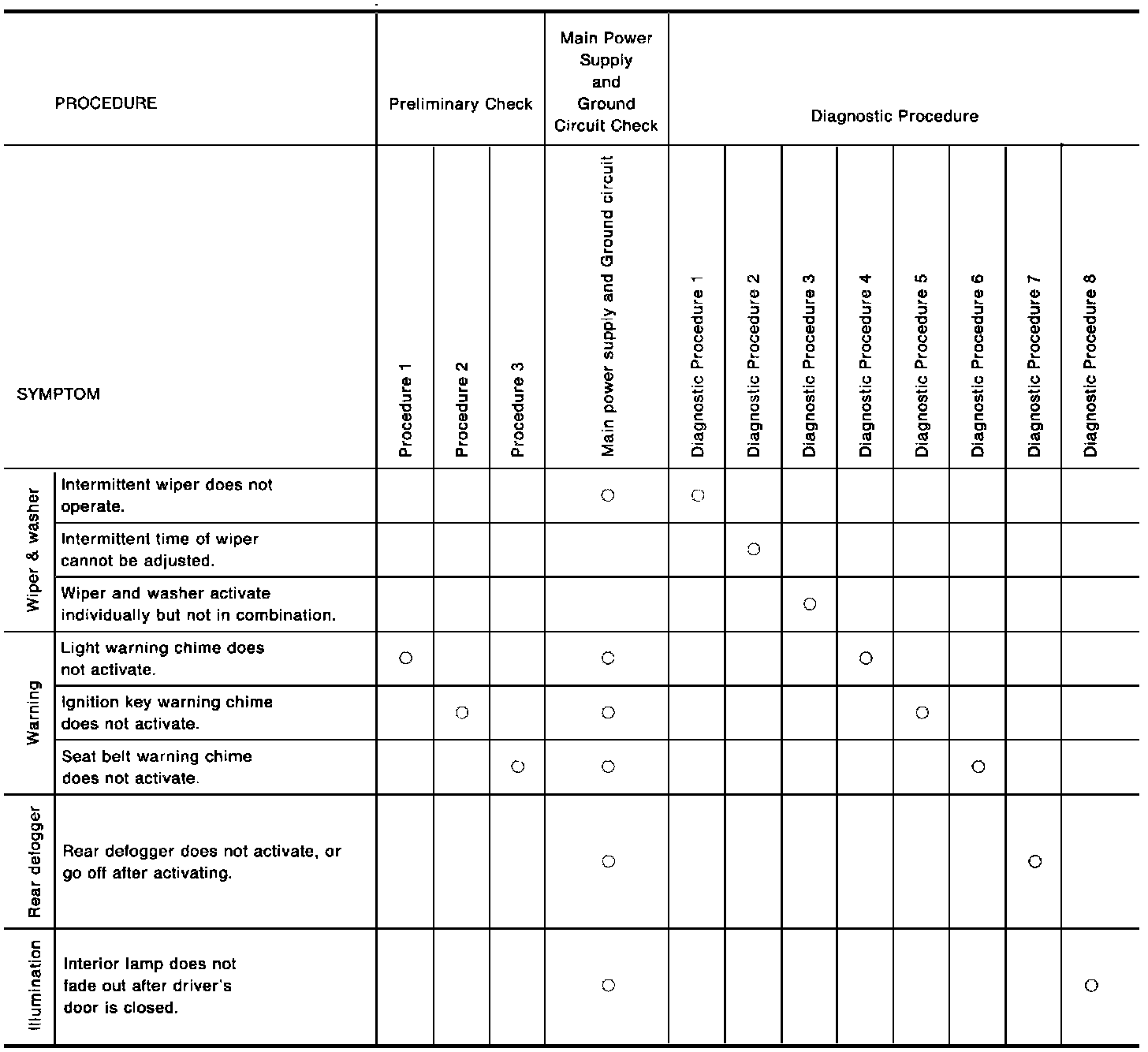

Time Control System: Symptom Chart:
