Start Signal Circuit
Start Signal Circuit

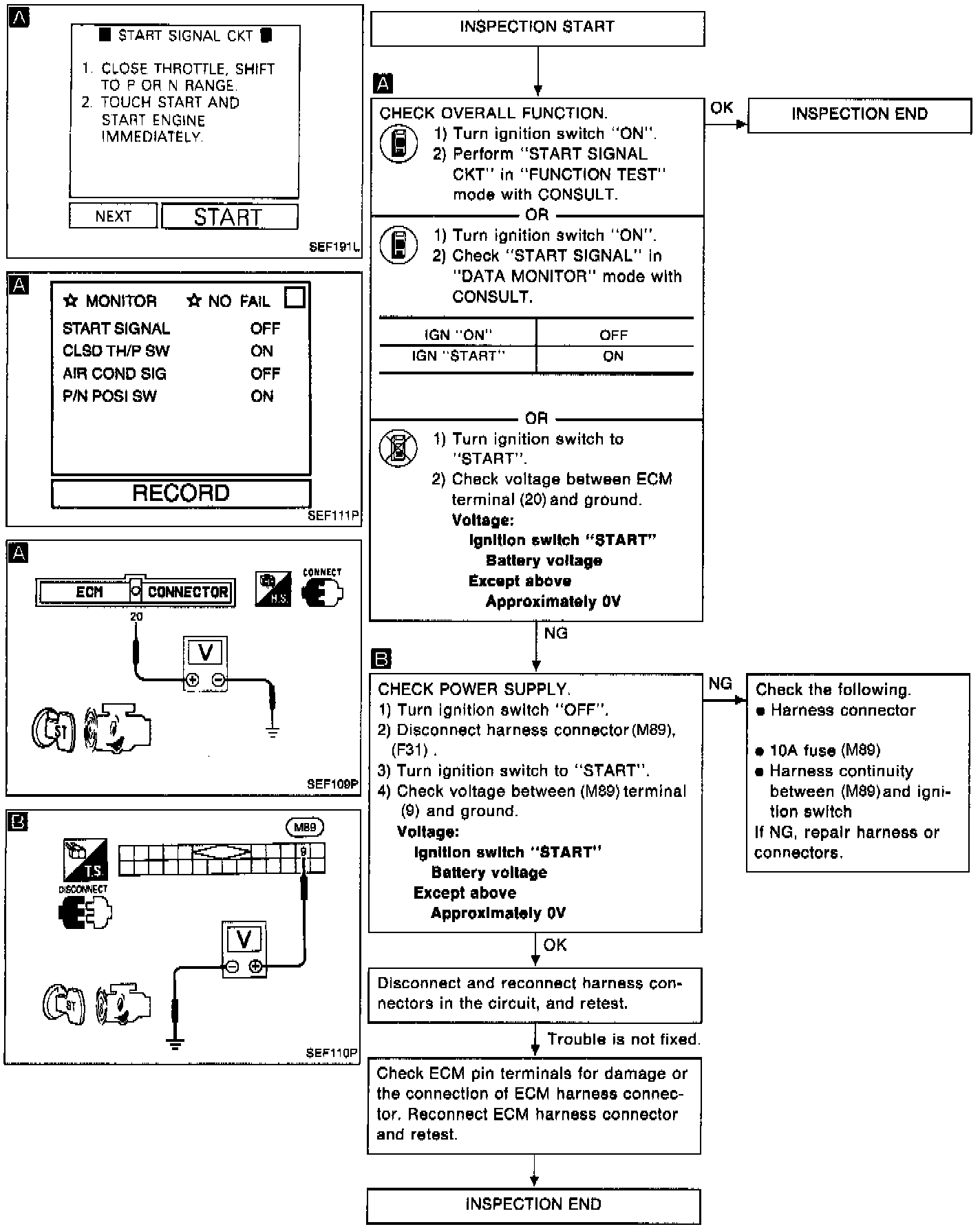

Start Signal Non-DTC Chart:
DIAGNOSTIC CHART

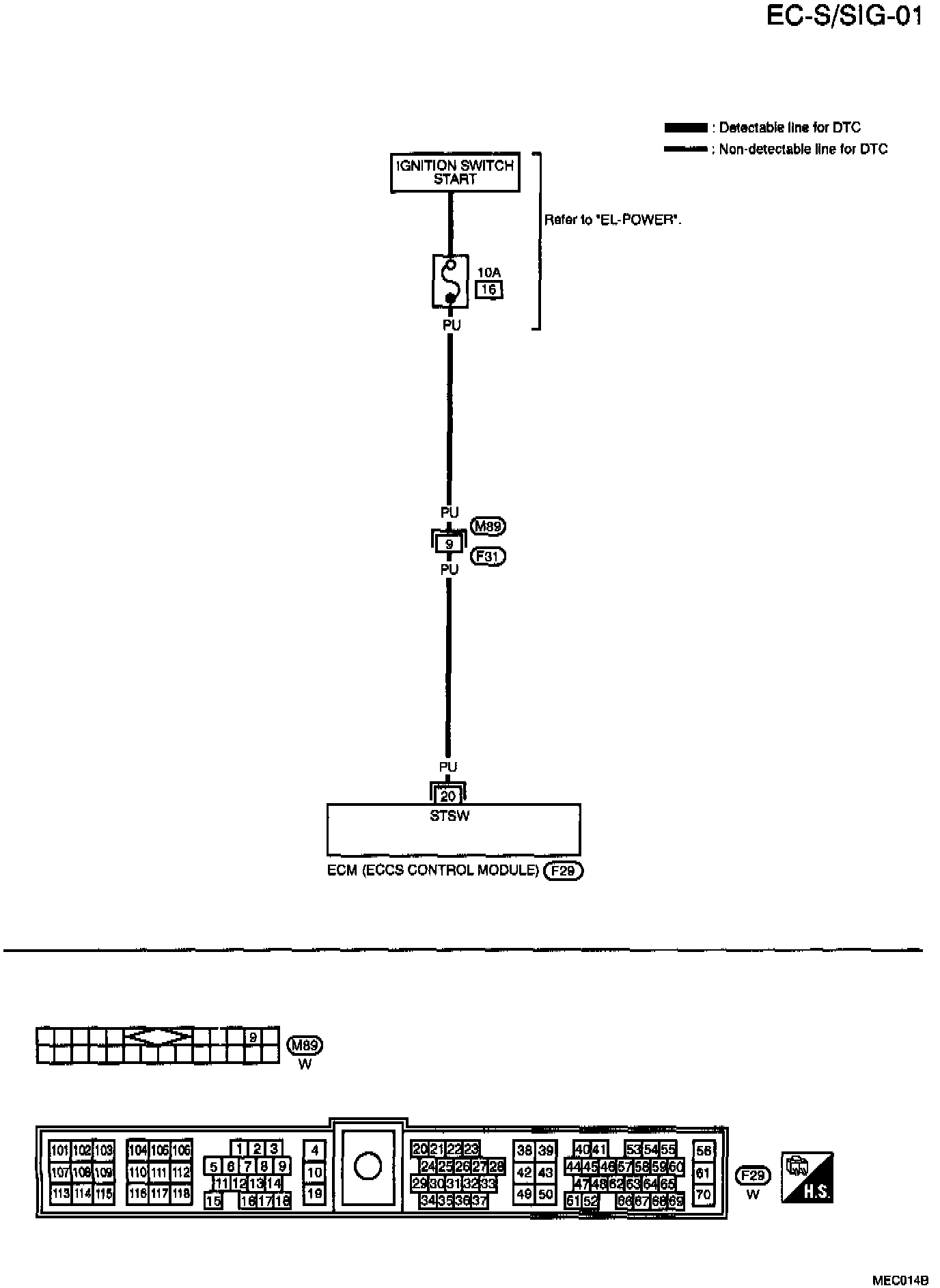

Start Signal Circuit Diagram:
CIRCUIT DIAGRAM
