Without CONSULT

OVERALL FUNCTION CHECK
Use this procedure to check the overall function of the front heated oxygen sensor circuit. During this check, a DTC might not be confirmed.
1) Start engine and warm it up sufficiently.

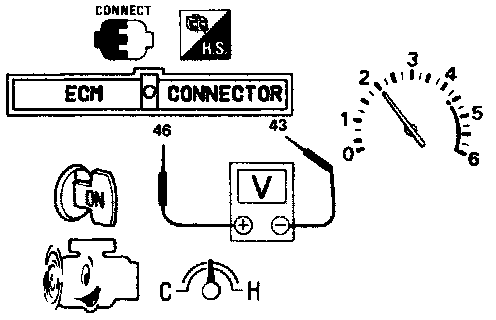

2) Set voltmeter probes between Engine Control Module (ECM) terminal (46) (sensor signal) and (43) (engine ground).
3) Check the following with engine speed held at 2,000 rpm constant under no load.
- Malfunction indicator lamp goes on more than 5 times within 10 seconds in Diagnostic Test Mode II (FRONT HEATED OXYGEN SENSOR MONITOR).
- The maximum voltage is over 0.6 V at least one time.
- The minimum voltage is below 0.35 V at least one time.
- The voltage never exceeds 1.0 V.
