CONSULT - Program Card Procedure Changes

Classification:
T&E96-002

Reference:
ITB96-021

Date:
May 8, 1996

CONSULT UE950 PROGRAM CARD PROCEDURE CHANGES

APPLIED VEHICLES:
All

SERVICE INFORMATION

It is necessary to perform two procedure changes when using the UE950 Program Card, The first is a change in the Freeze Frame data screen when performing emissions diagnosis. The second change is necessary when erasing a system to enable loading of a different system into CONSULT memory. Both procedural changes are described below.

SERVICE PROCEDURE





1. Freeze Frame Data Change When Performing Emissions Diagnosis

A. During emission system diagnosis using CONSULT and the UE950 Program Card, "Freeze Frame" information for "PURG CONTN & SN" is incorrectly labeled when displayed and/or printed. The table provides the corrected information.

2. Erasing One System and Loading a Different System Into CONSULT Memory

A. When using CONSULT with the UE950 Program Card and there is a need to erase a system to make more memory space available to load a new system, selecting "ENGINE" to erase will cause a error message to appear. The unit will ask to install a UE941S Program Card that does not exist. To avoid this error message from occurring, do not select "ENGINE" as the system to erase.

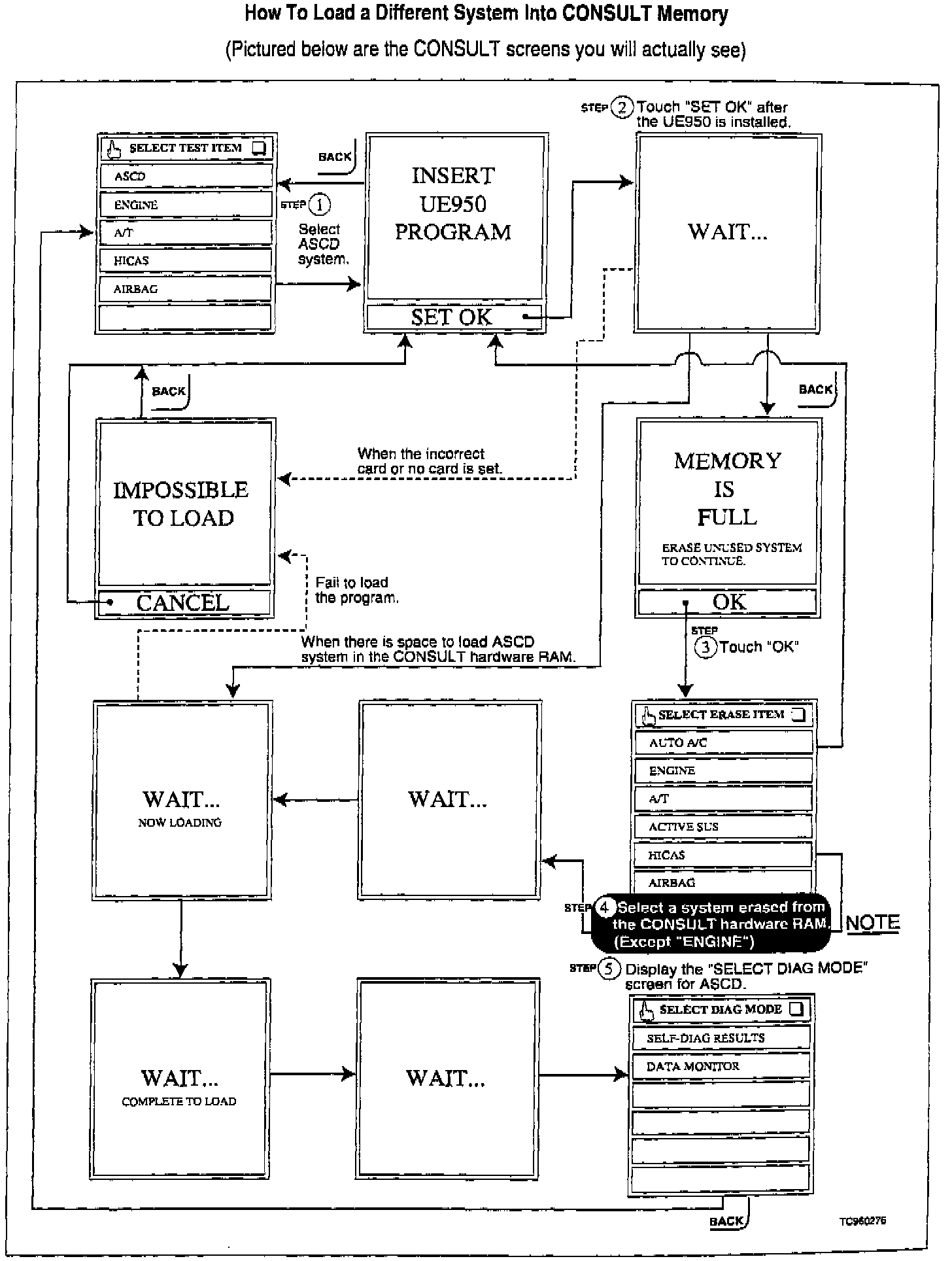

B. To make memory space available, select any of the other systems displayed. Refer to the CONSULT system instruction change shown in this bulletin. Please pay special attention to Step 4.
