Diagnosis By Symptom

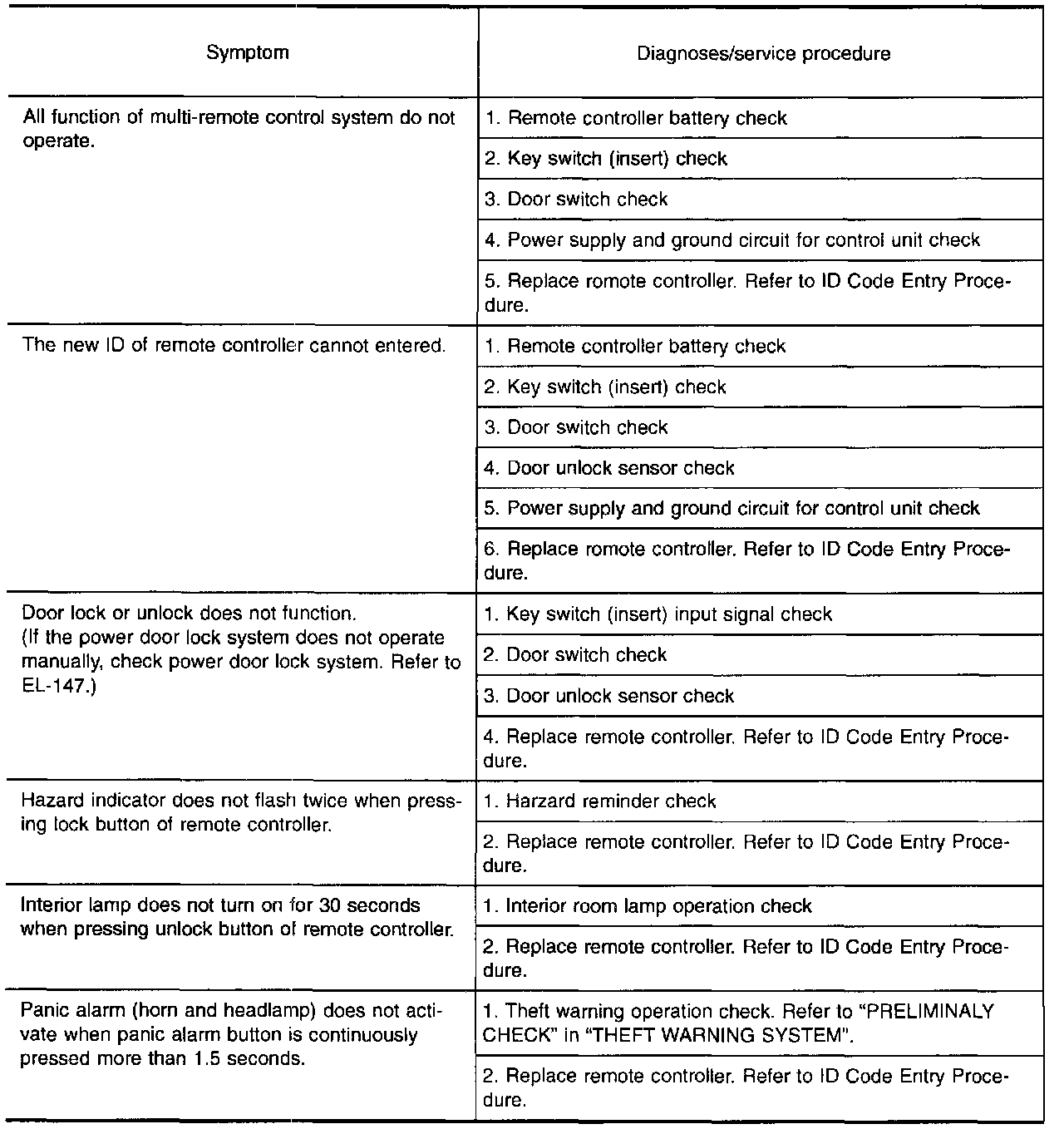

Symptom Chart

NOTE:
^ The unlock and panic alarm operation of multi-remote control system does not activate with the ignition key inserted in the ignition key cylinder.
^ The lock operation of multi-remote control system does not activate with the key inserted in the ignition key cylinder or if one of the doors is opened.

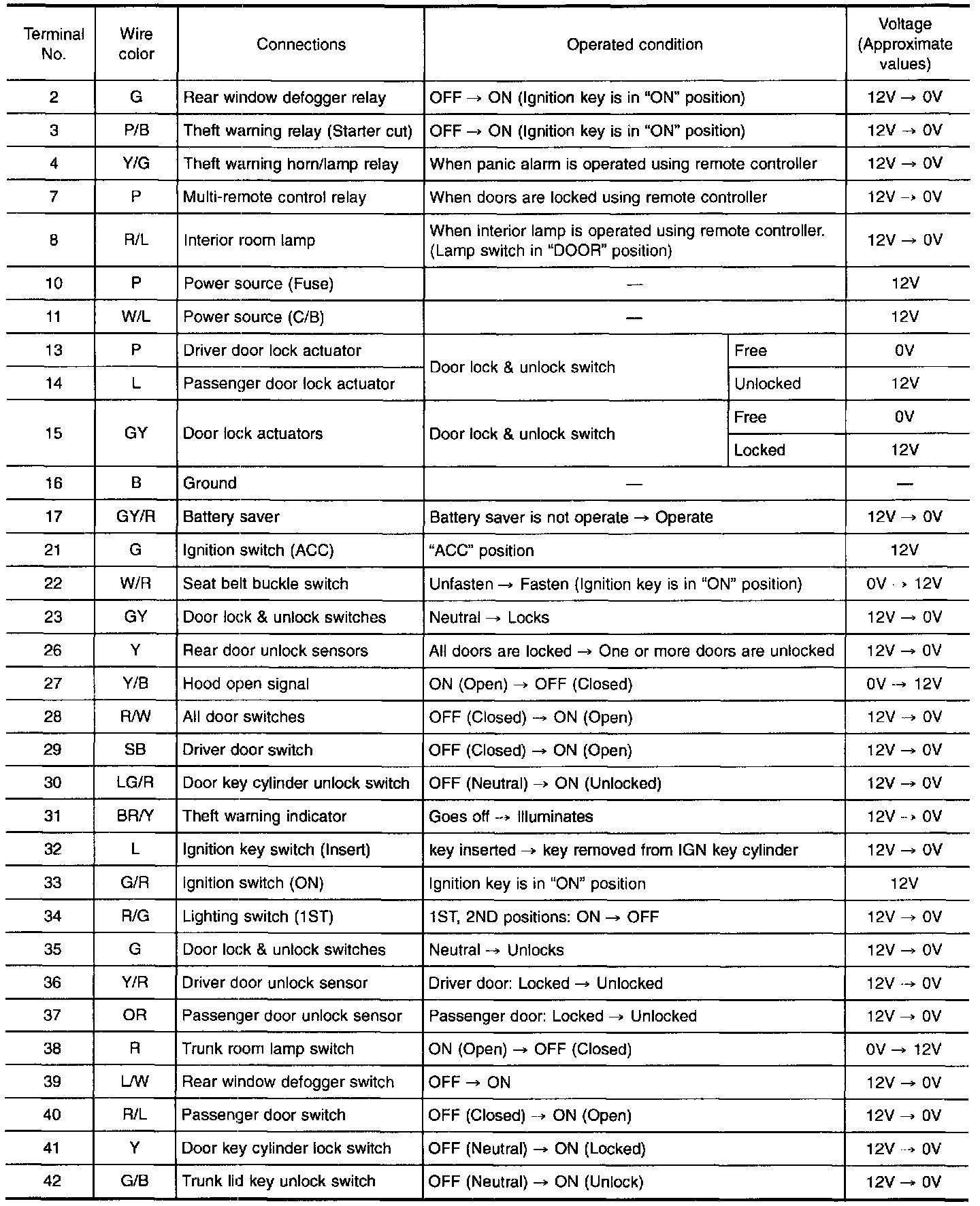

Smart Entrance Control Unit Inspection Table
