Diagnostic Procedure 5

Inspecting SRS intermittent malfunction by using CONSULT - Diagnosis mode






1. Turn ignition switch "OFF".

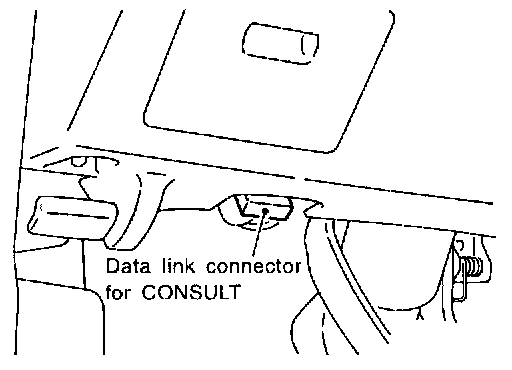

2. Connect "CONSULT" to Data link connector.






3. Turn ignition switch "ON".
4. Touch "START".

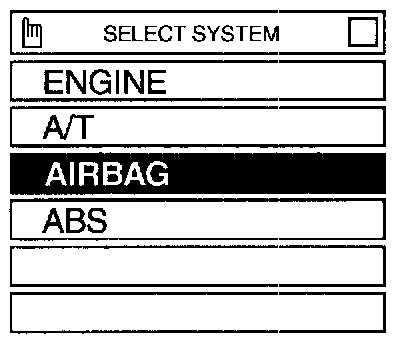

5. Touch "AIRBAG".

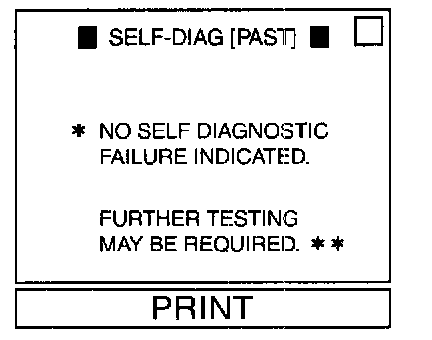

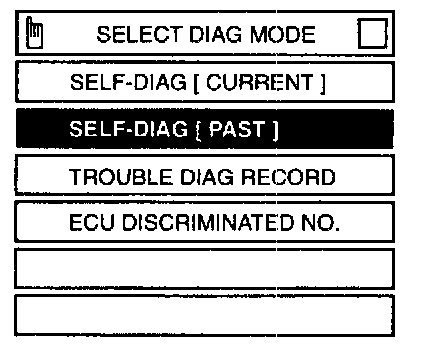

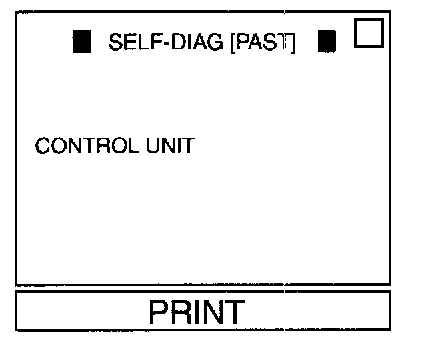

6. Touch "SELF-DIAG [PAST]".






7. If diagnostic codes are displayed on "SELF-DIAG [PAST]", go to step 10.






If no malfunction is detected on "SELF-DIAG [PAST]", touch "BACK" and go back to "SELECT DIAG MODE".

NOTE: Past malfunction for seat belt pre-tensioner system will not be displayed on "SELF-DIAG [PAST]".

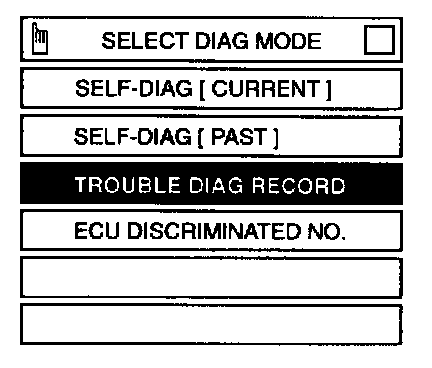

8. Touch "TROUBLE DIAG RECORD".

NOTE: With "TROUBLE DIAG RECORD", diagnosis results previously erased by a reset operation can be displayed.

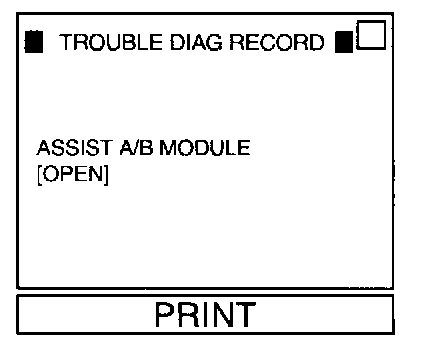

9. Diagnostic code is displayed on "TROUBLE DIAG RECORD".
10. Touch "PRINT".
11. Compare diagnostic codes to "Intermittent Malfunction Diagnostic Code Chart".
12. Touch "BACK" key of CONSULT until "SELECT SYSTEM" appears, then turn off CONSULT.
13. Turn ignition switch "OFF", then disconnect CONSULT and both battery cables.
14. Repair the system as outlined by the "Repair order" in "Intermittent Malfunction Diagnostic Code Chart", that corresponds to the self-diagnostic result. For replacement procedure of component parts.
15. Go to DIAGNOSTIC PROCEDURE 3, for final checking.

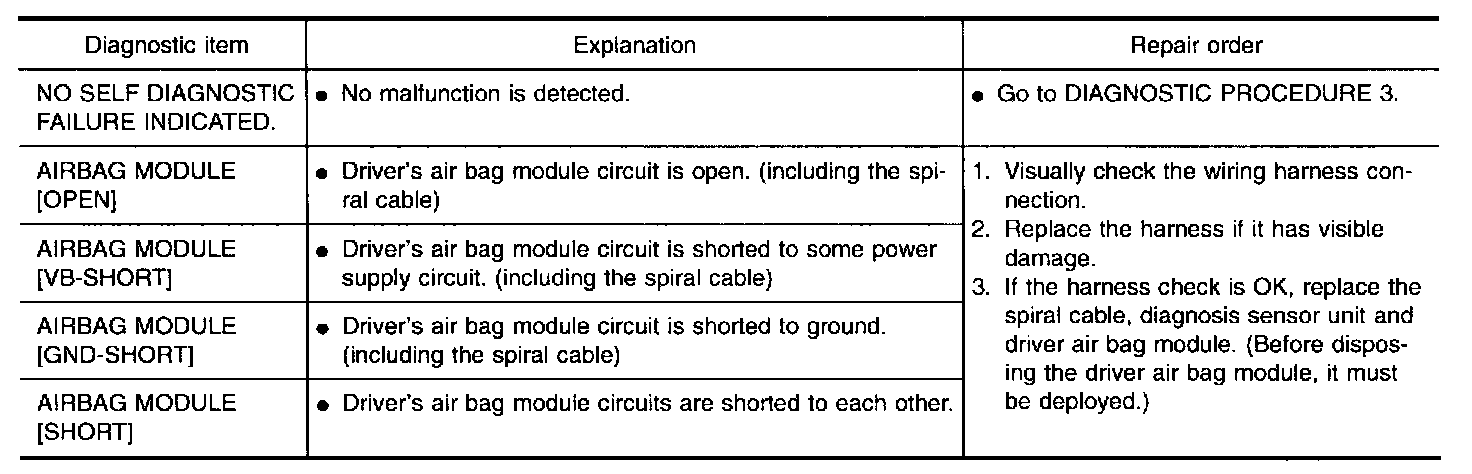

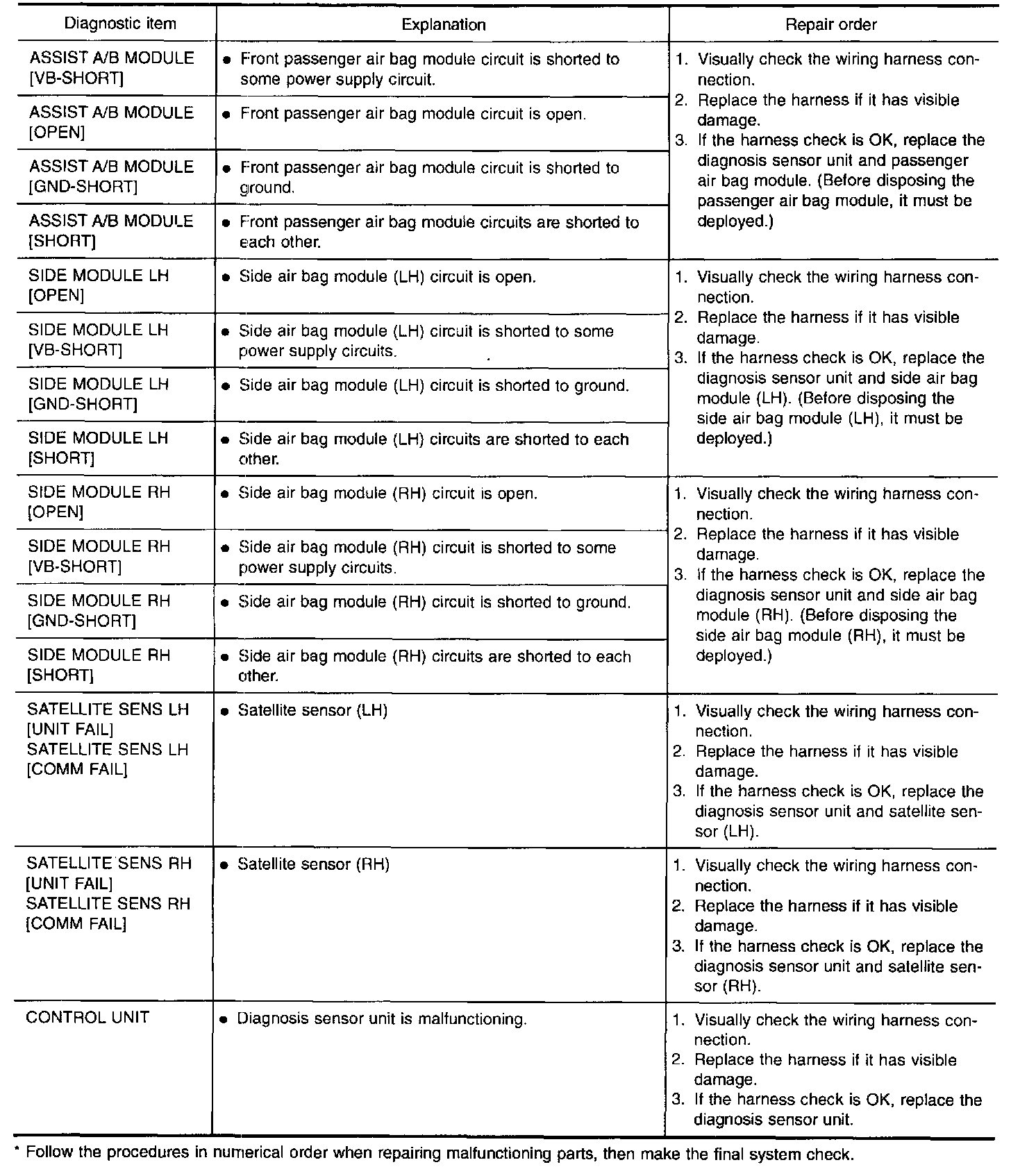

Intermittent Malfunction Diagnostic Code Chart ("SELF-DIAG [PAST]" Or "TROUBLE DIAG RECORD")
