Side Collision

FOR SIDE COLLISION
To repair the SRS for a side collision, perform the following steps.

When the side air bag is activated in the side collision:
1. Replace the following component:
- Diagnosis sensor unit
- Satellite sensor (on the side on which side air bag is activated)

2. Remove the deployed side air bag module.

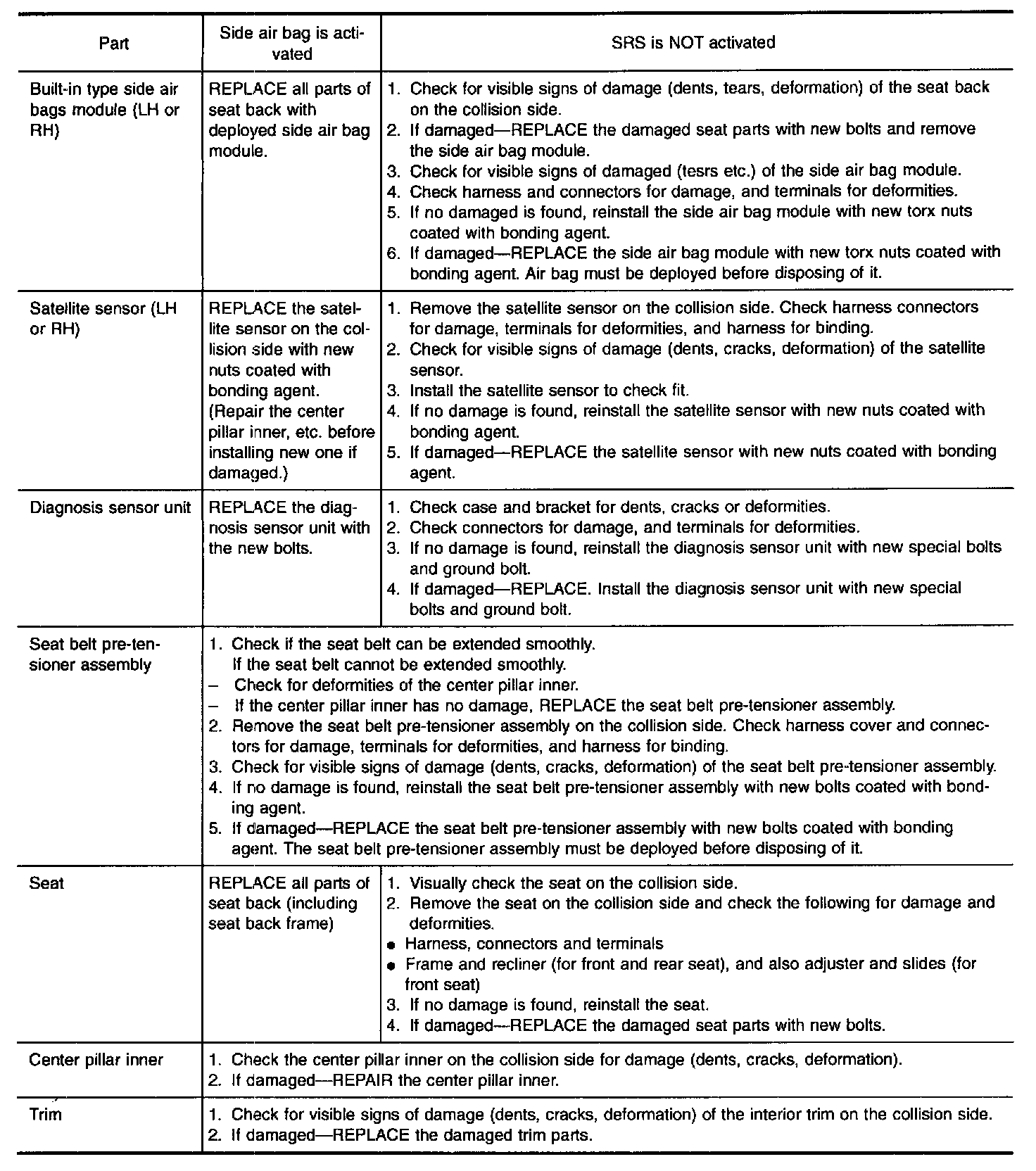

3. Check the SRS components and the related pants using the table shown below.
Replace any SRS components and the related parts showing visible signs of damage (dents, cracks, deformation).

4. Install new side air bag module (on the side on which side air bag has been activated) with new nuts.
5. Conduct self-diagnosis using CONSULT, and "AIR BAG" and "SEAT BELT" warning lamp. Refer to "SRS Operation Check" for details. Ensure entire SRS operates properly.

When SRS is not activated in the side collision:
1. Check the SRS components and the related parts using the table shown below.
Replace any SRS components and the related parts showing visible signs of damage (dents, cracks, deformation).

2. Conduct self-diagnosis using CONSULT, and "AIR BAG" and "SEAT BELT" warning lamp. Refer to "SRS Operation Check" for details. Ensure entire SRS operates properly.
