Power Locks: Testing and Inspection
Trouble Diagnoses

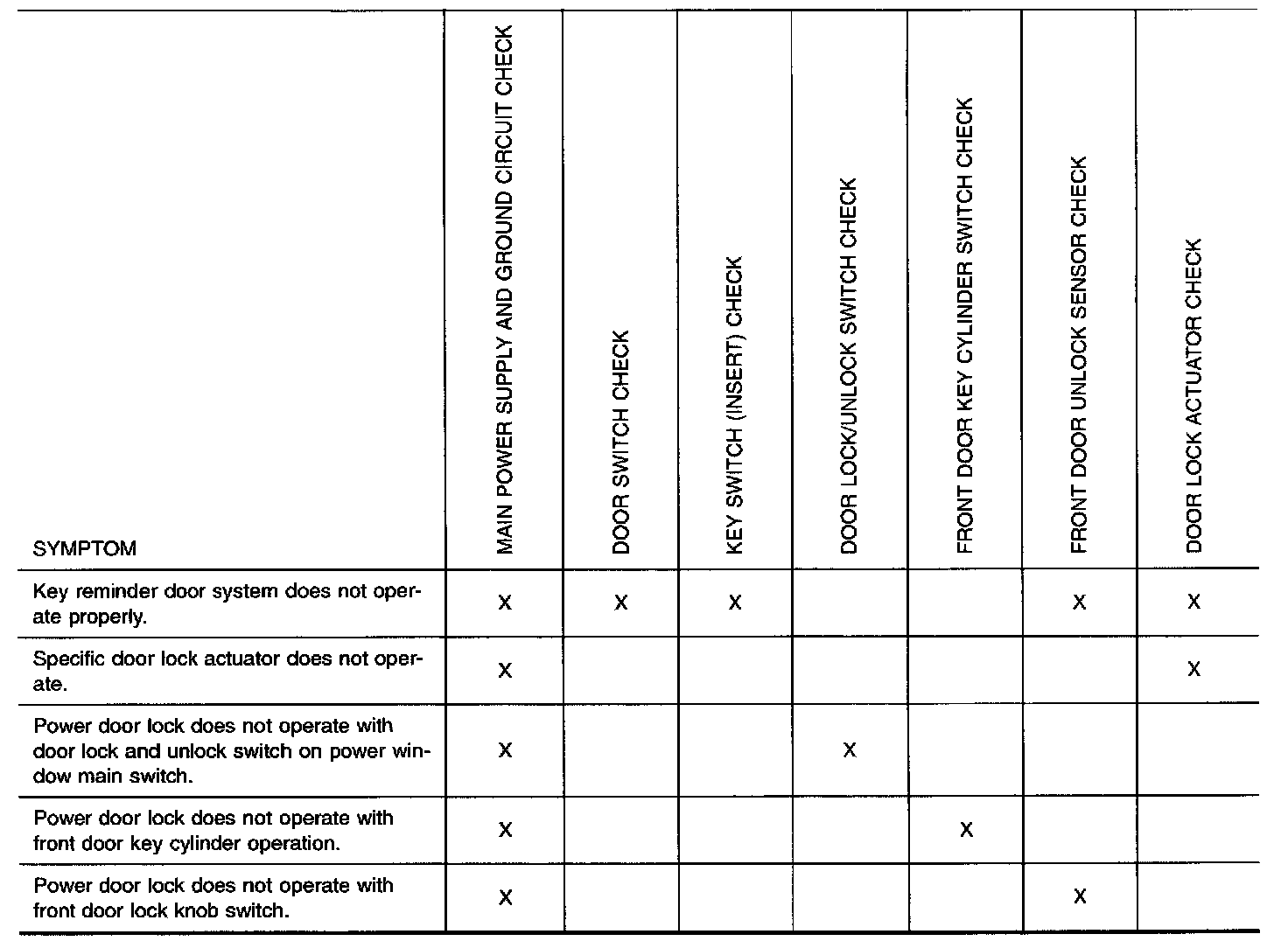

SYMPTOM CHART
MAIN POWER SUPPLY AND GROUND CIRCUIT CHECK

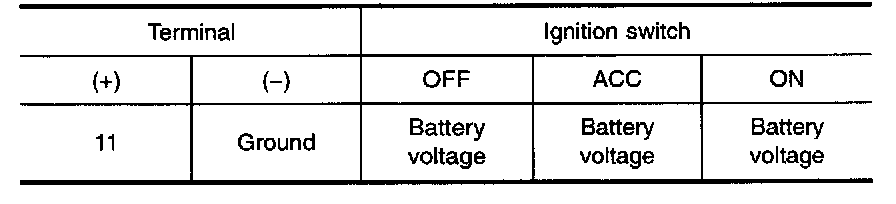

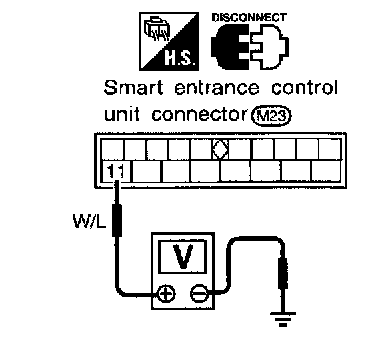

Main Power Supply Circuit Check

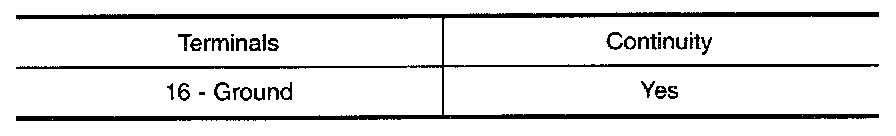

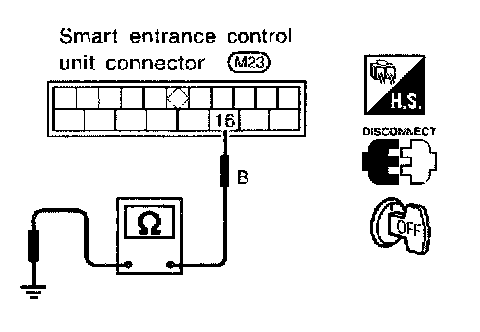

Ground Circuit Check

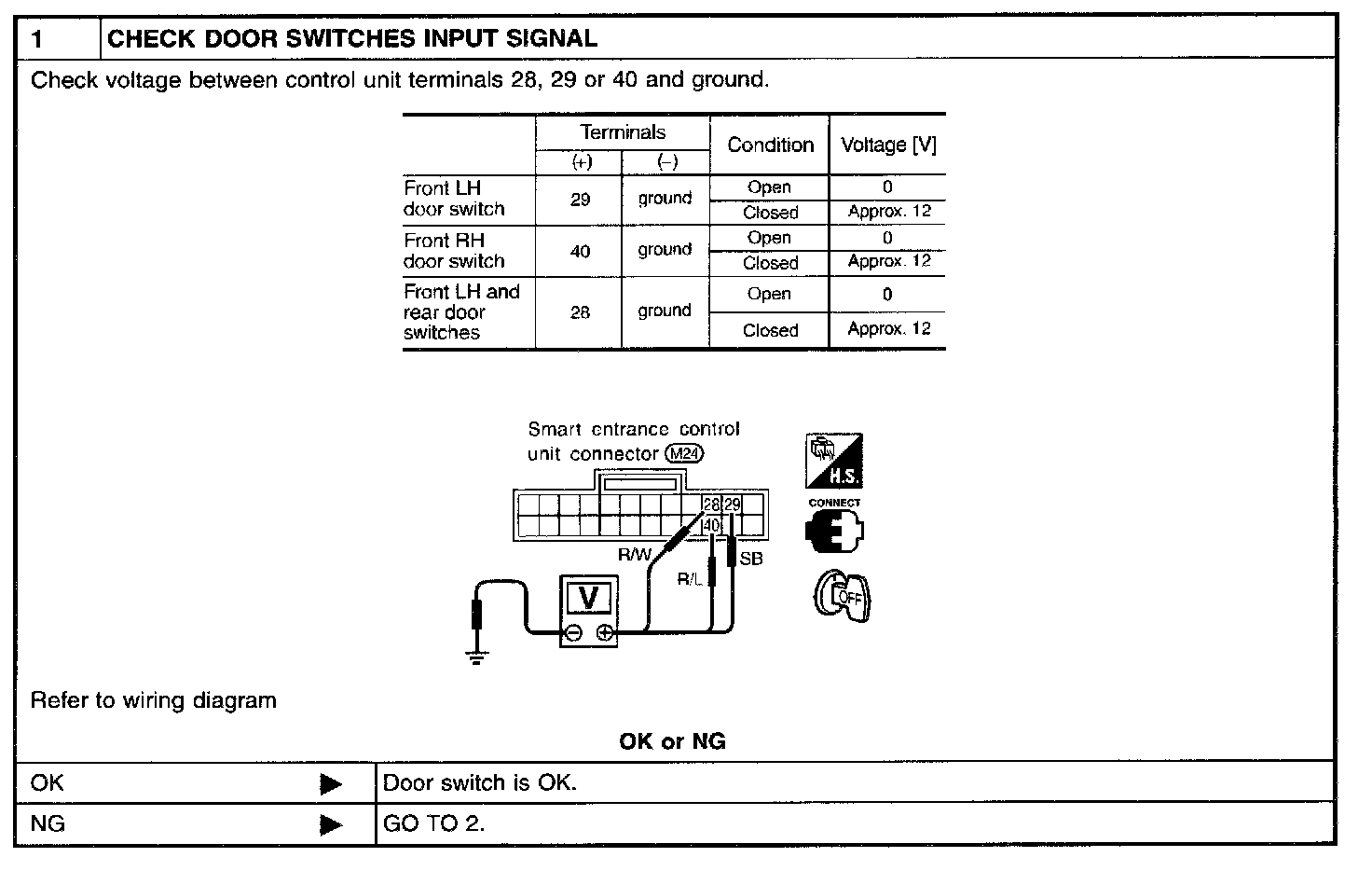

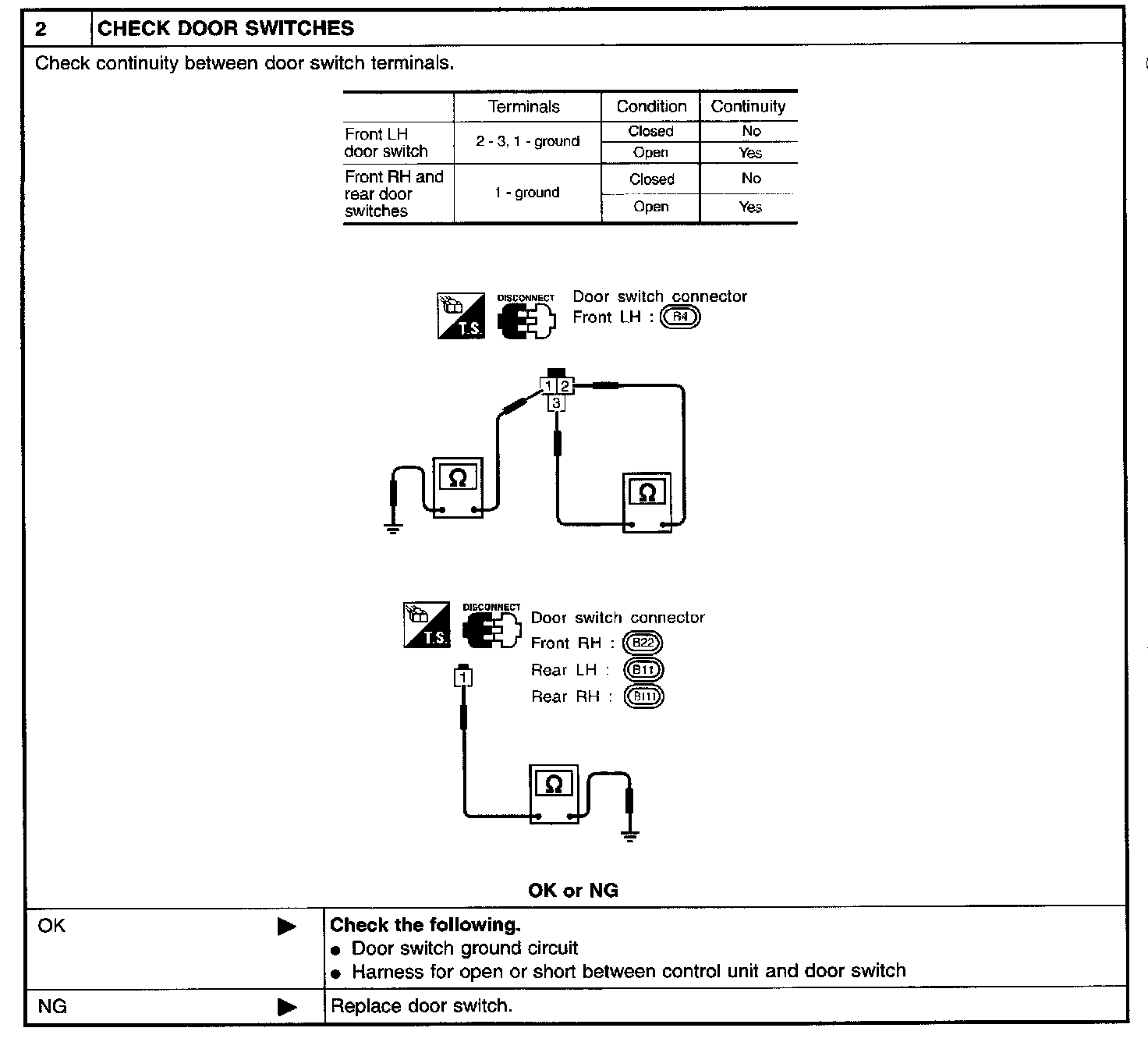

DOOR SWITCH CHECK

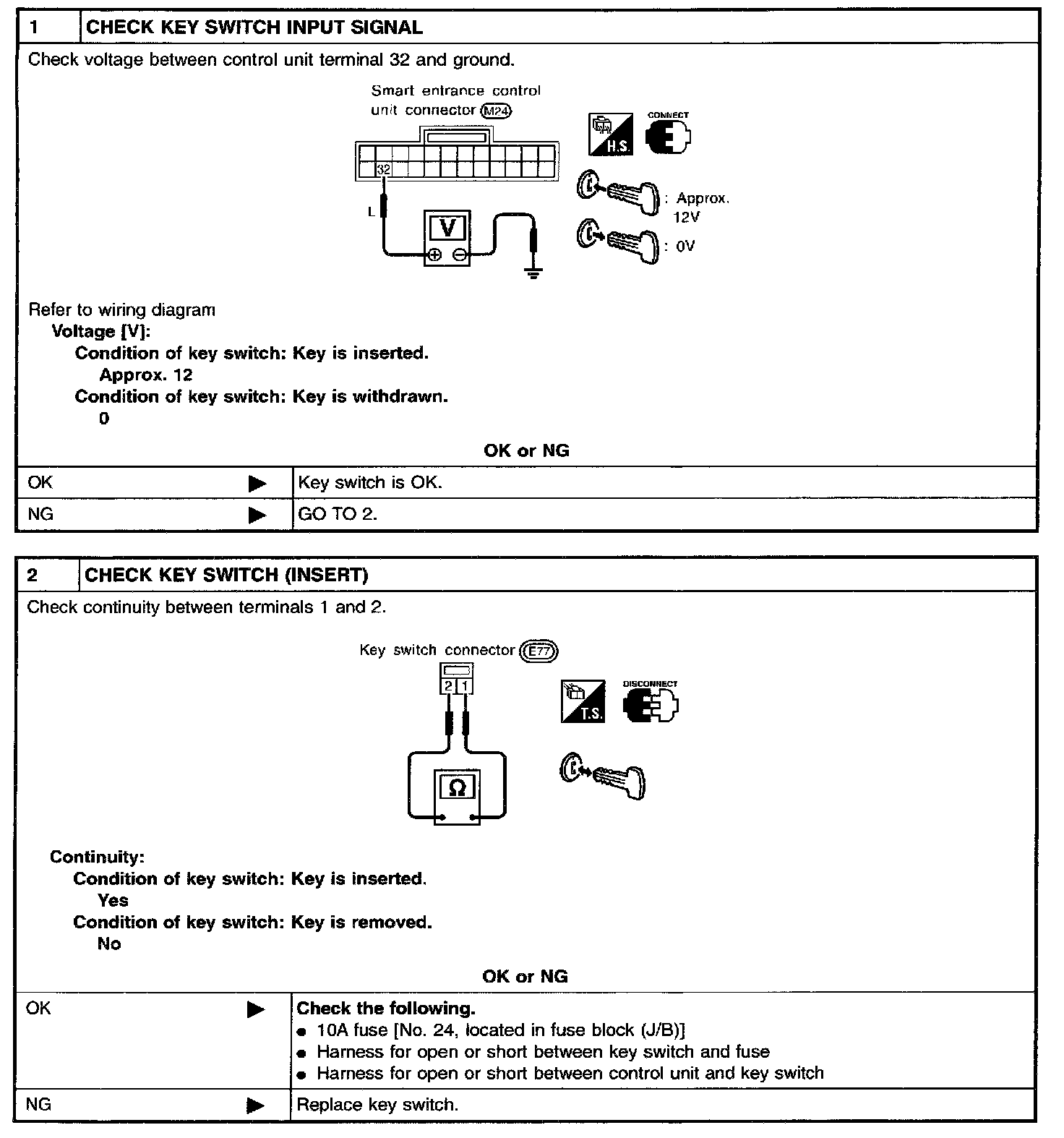

KEY SWITCH (INSERT) CHECK

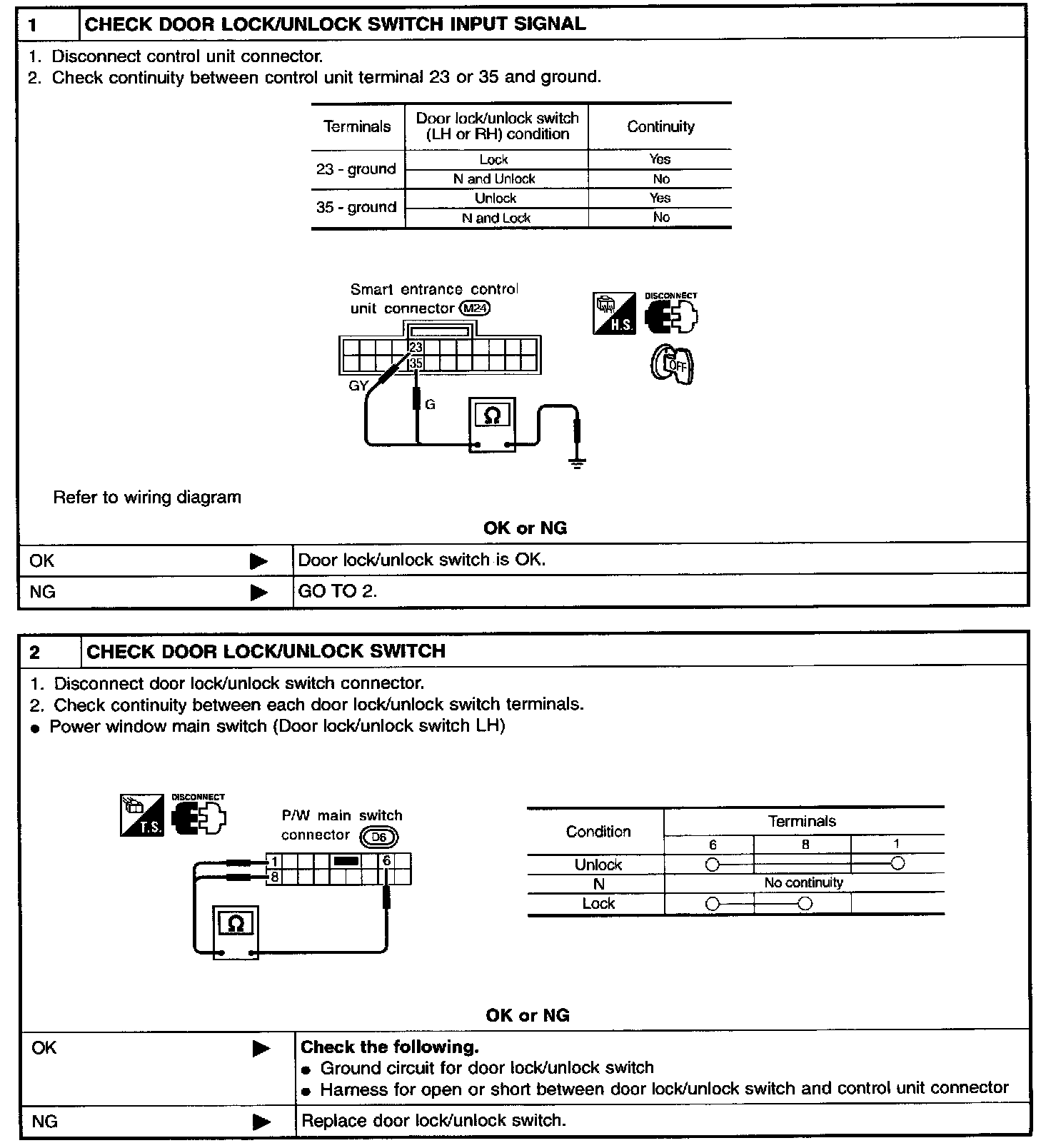

DOOR LOCK/UNLOCK SWITCH CHECK

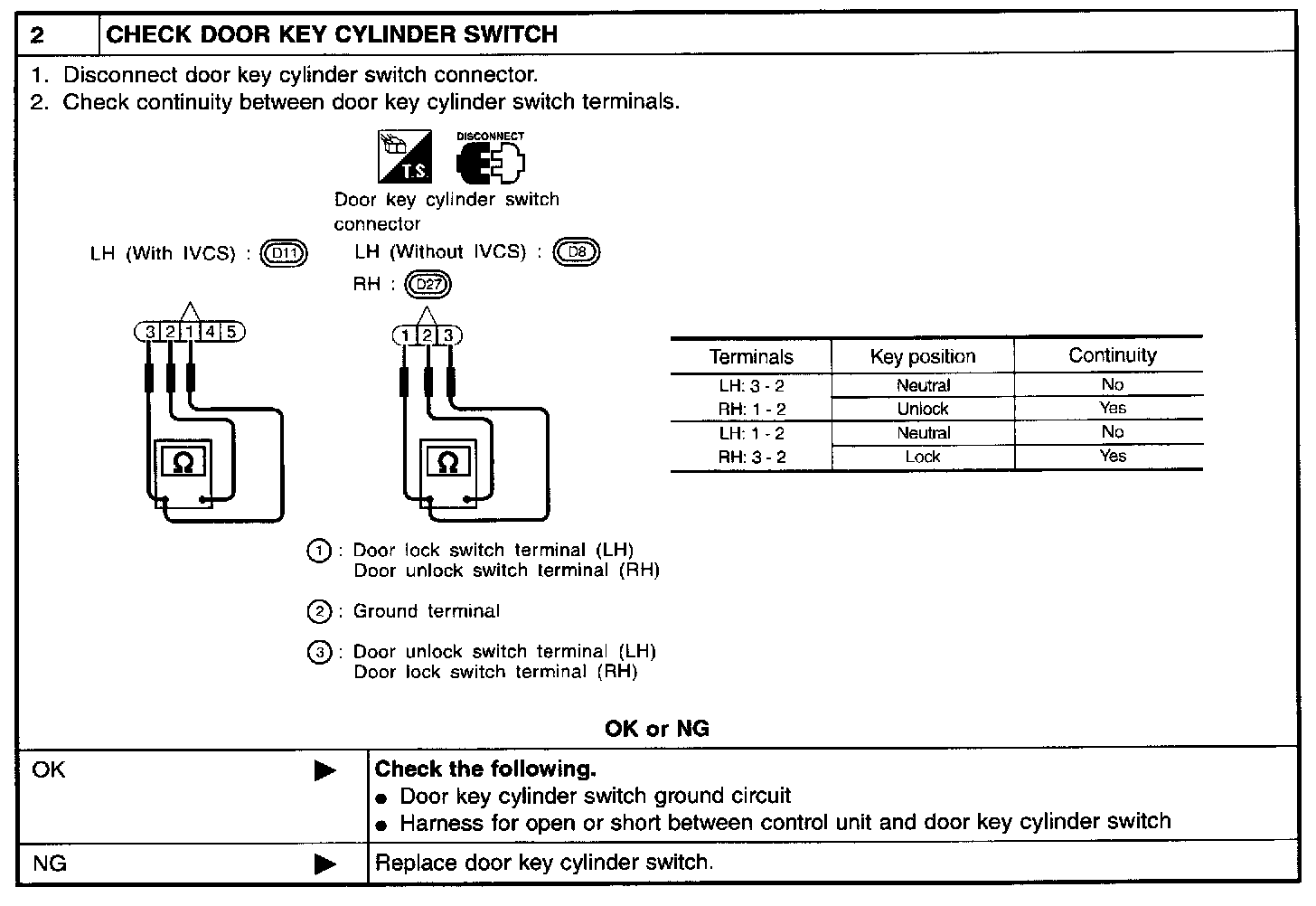

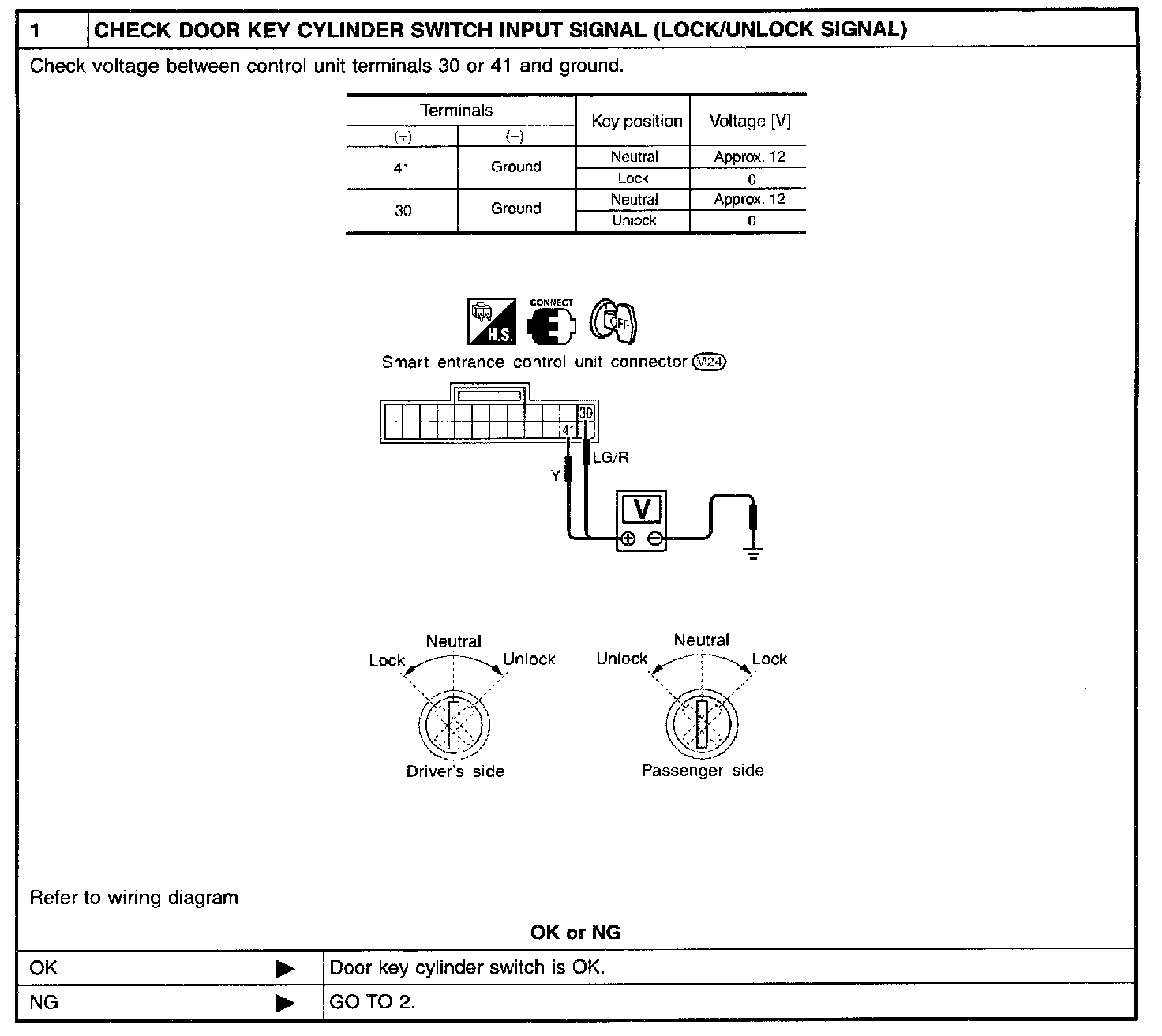

FRONT DOOR KEY CYLINDER SWITCH CHECK

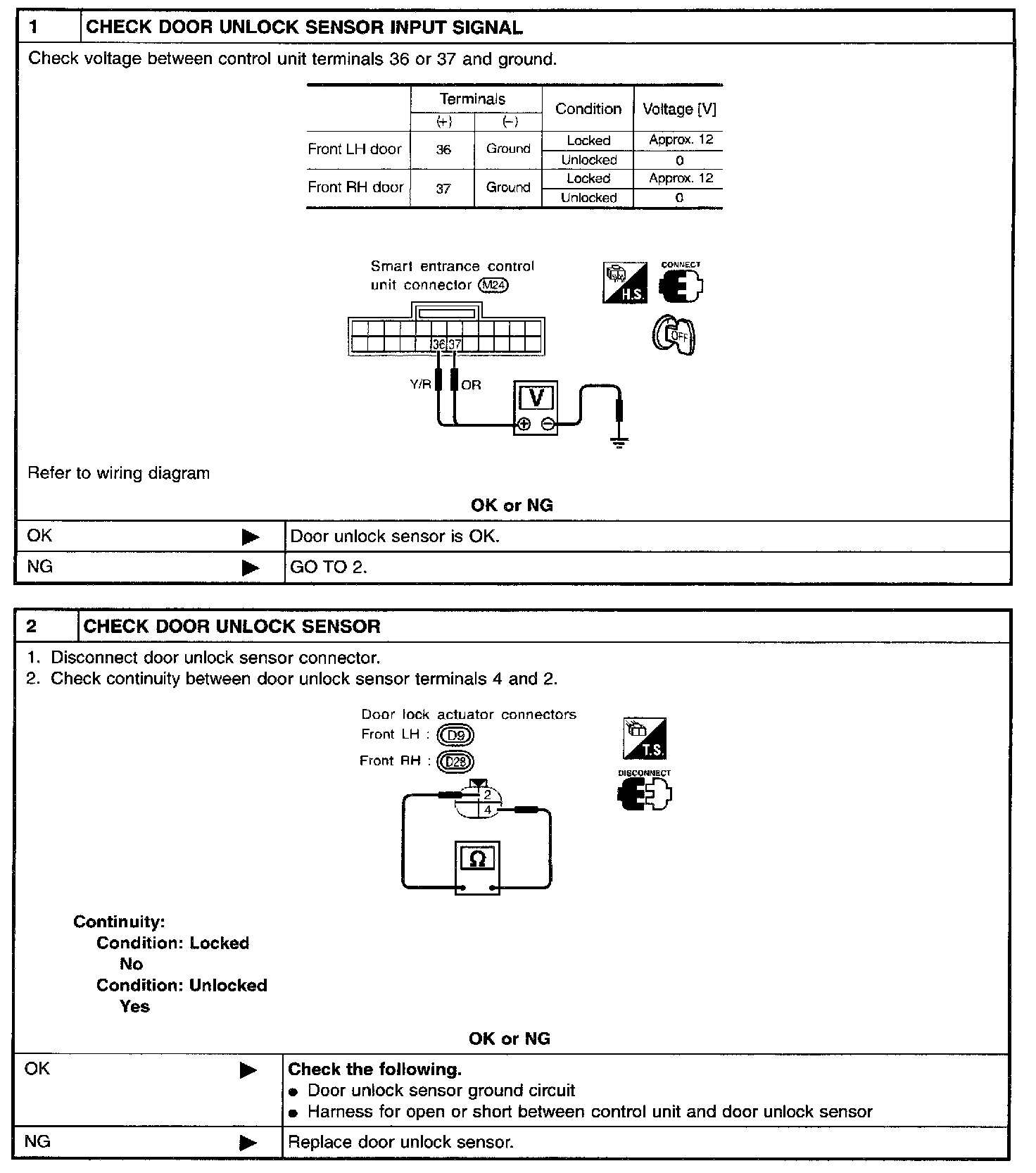

FRONT DOOR UNLOCK SENSOR CHECK

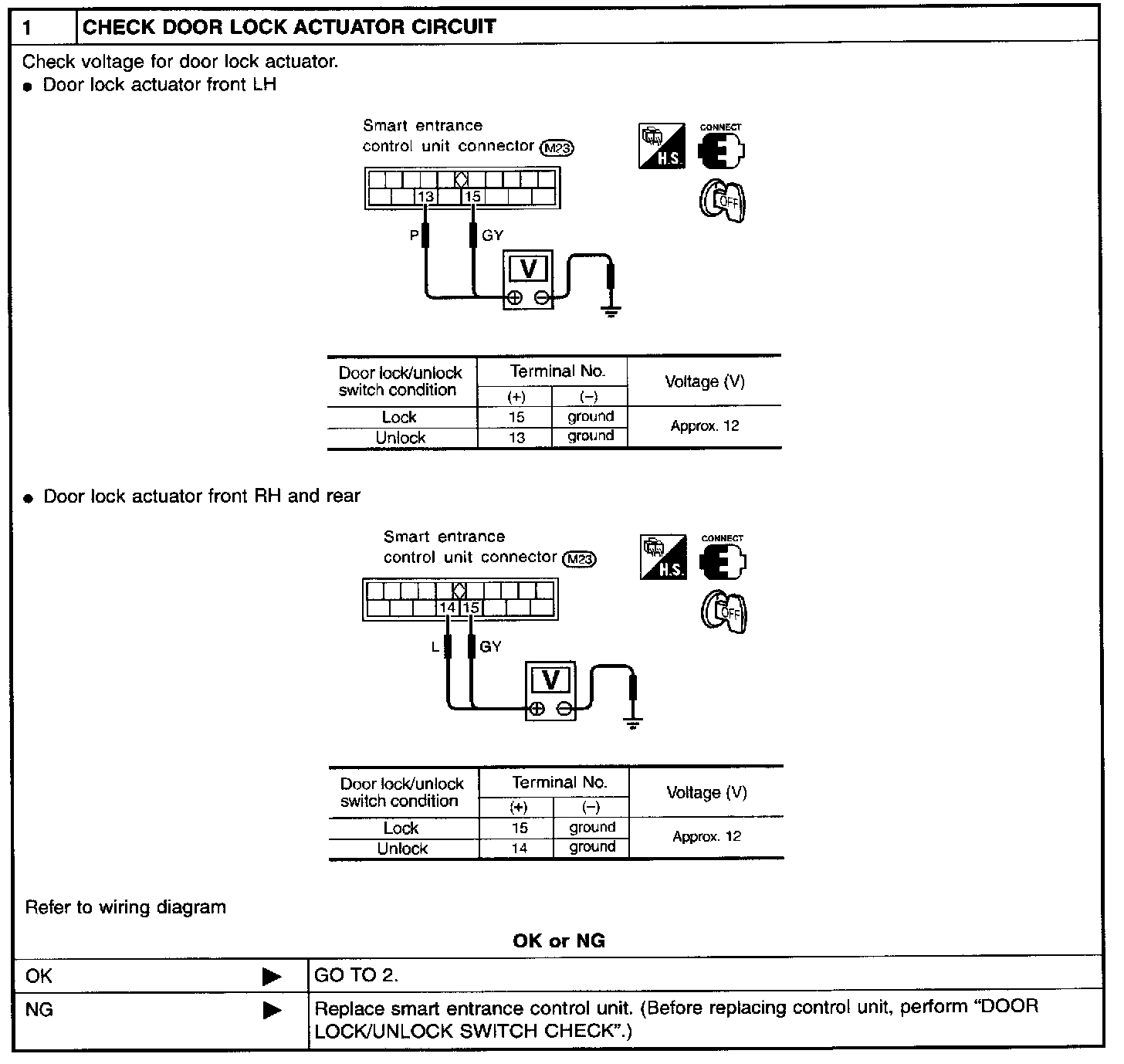

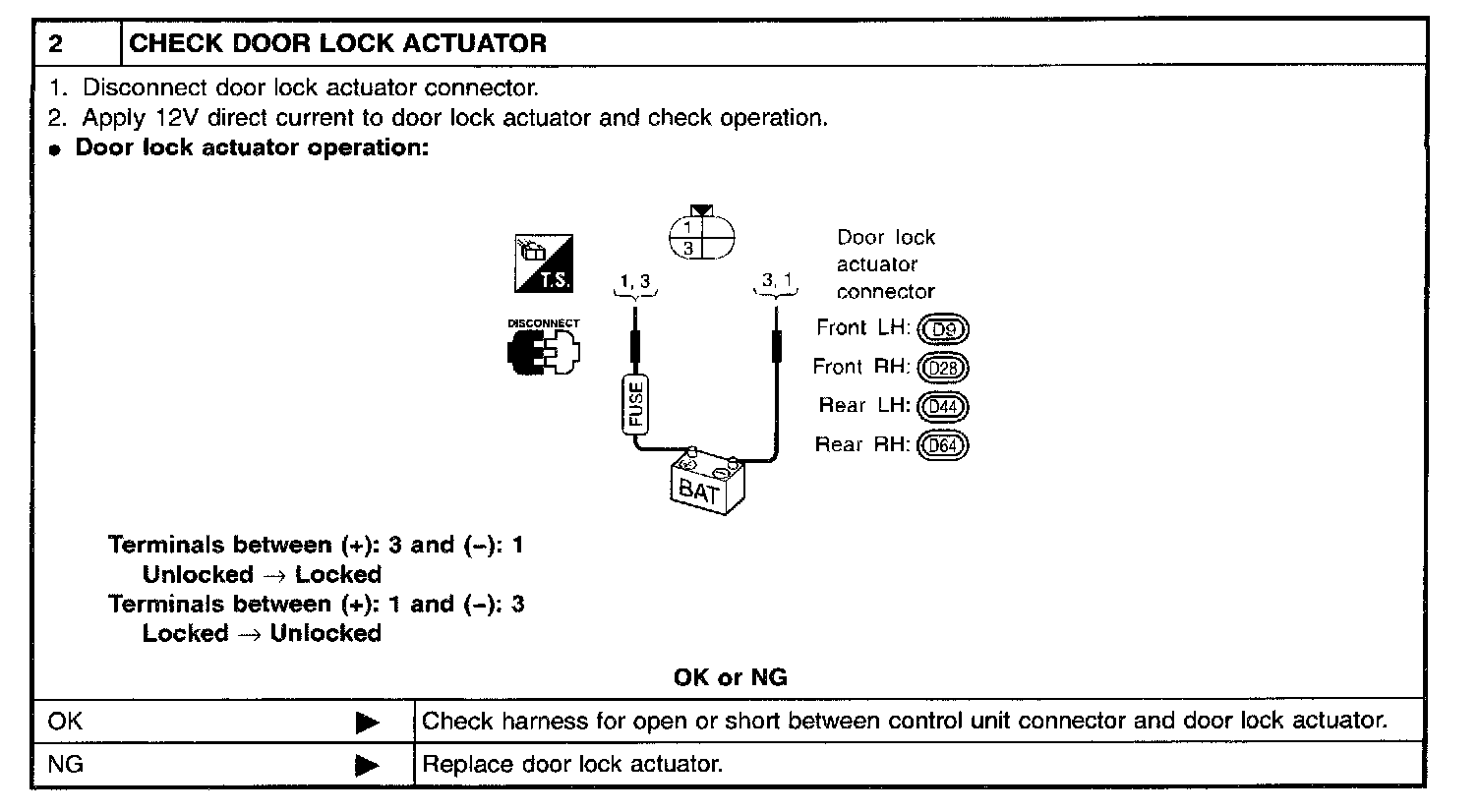

DOOR LOCK ACTUATOR CHECK
