Connector Views

Circuit Connectors

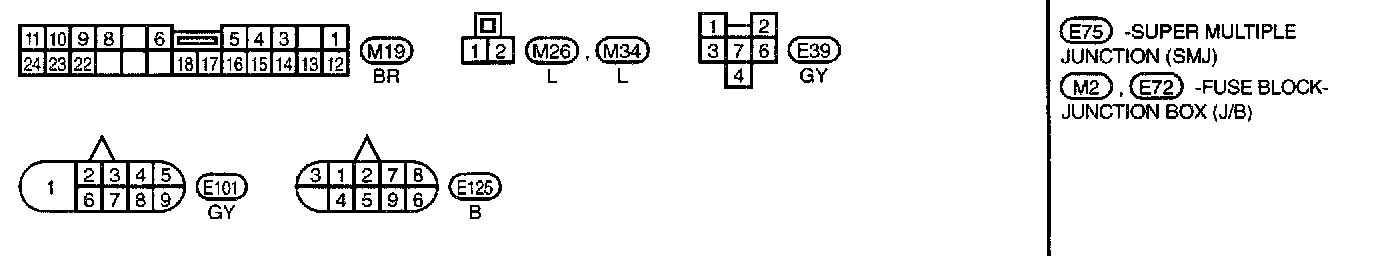

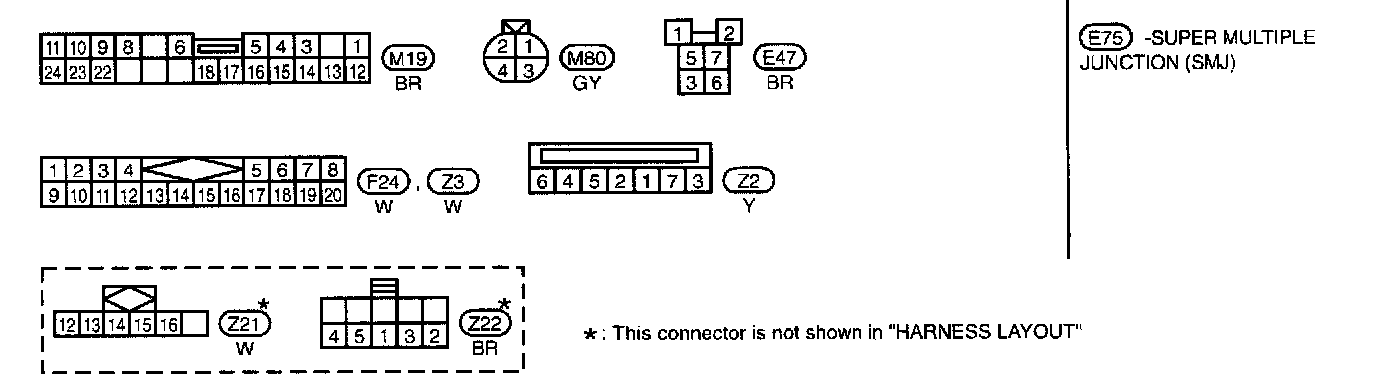

M6,E75 Connector Views:

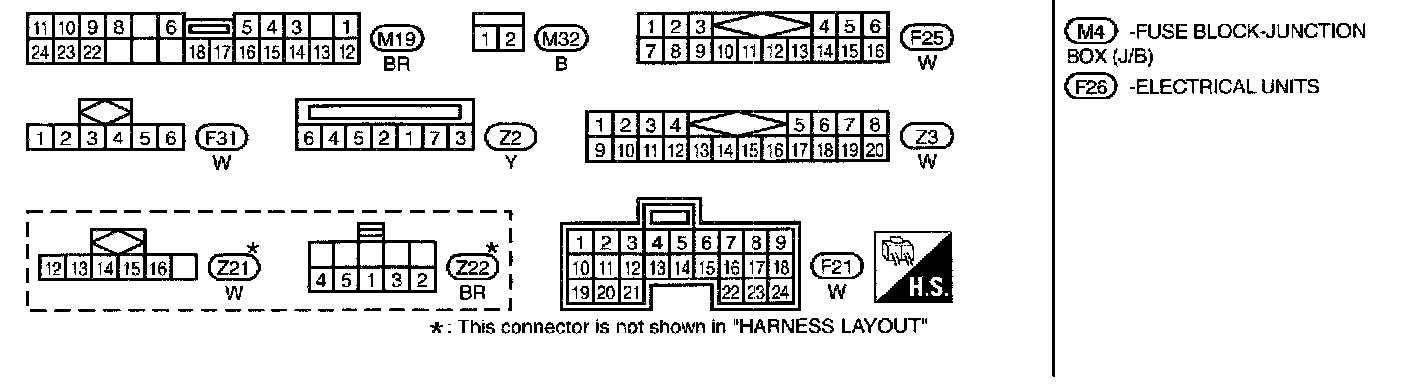

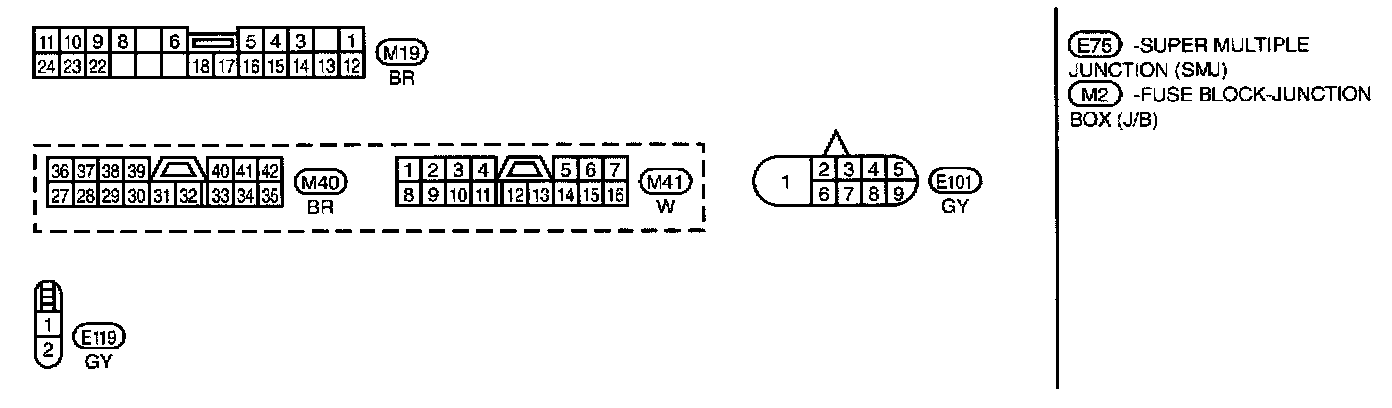

M1,M2,M3,M4,M5,B1,E71,E72,E73 Connector Views:

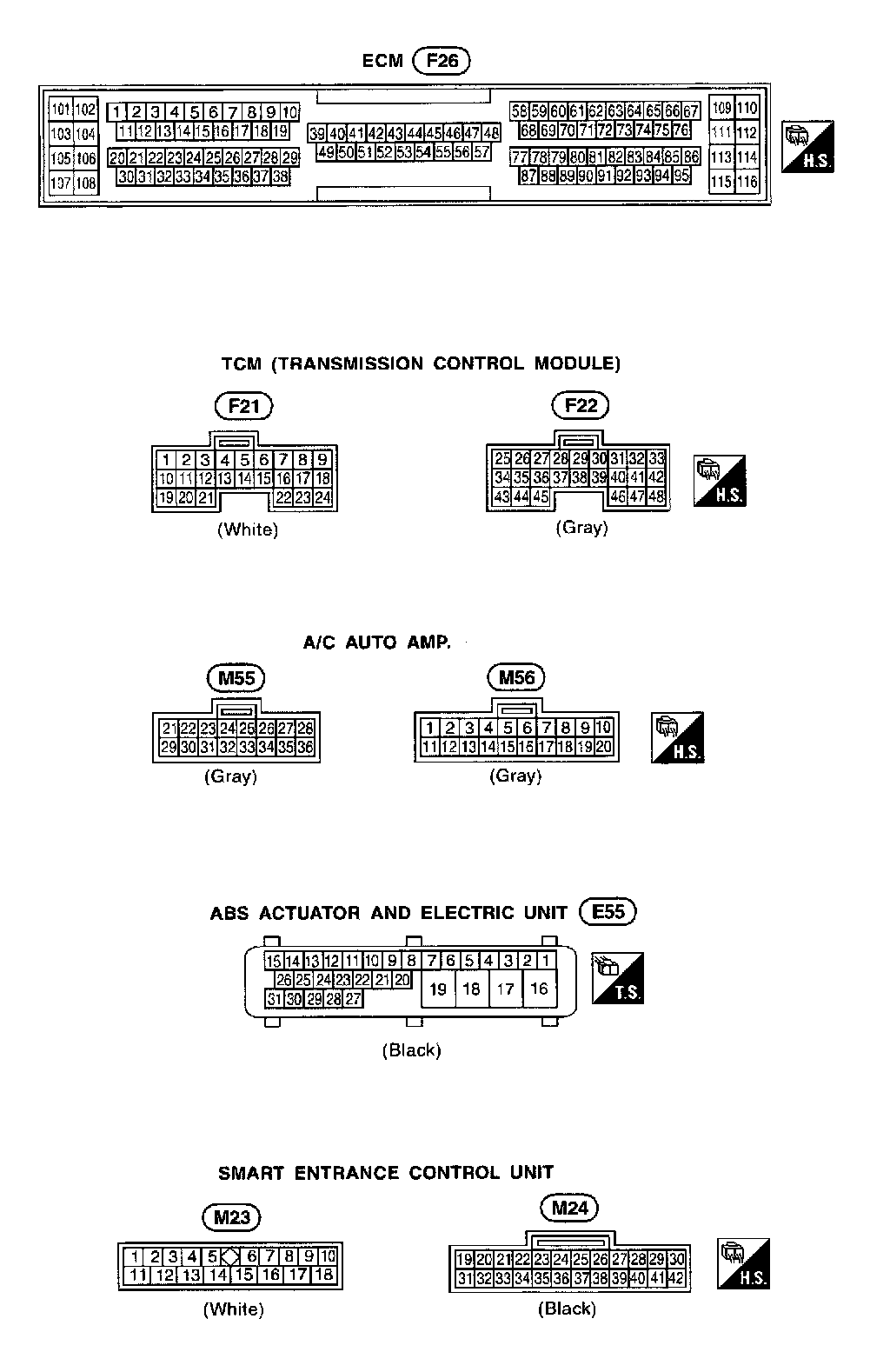

E75, M2, E72, M4, F26 Super Multiple Junction Box (SMJ), Fuse Block - Junction Box (J/B) and Electrical Units Terminal Arrangement
