Checking Fluid Level

Checking Fluid Level

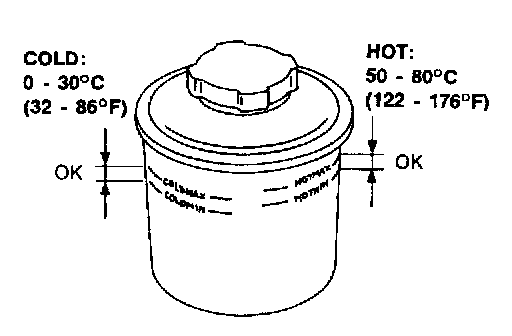

Check fluid level, referring to the scale on reservoir tank. Use "HOT" range for fluid temperatures of 50 to 80°C (122 to 176°F). Use "COLD" range for fluid temperatures of 0 to 30°C (32 to 86°F).

CAUTION:
- Do not overfill.
- Recommended fluid is Genuine Nissan PSF-II or equivalent.
