Camshaft Position Sensor: Testing and Inspection

1. Start engine and warm it up to normal operating temperature.

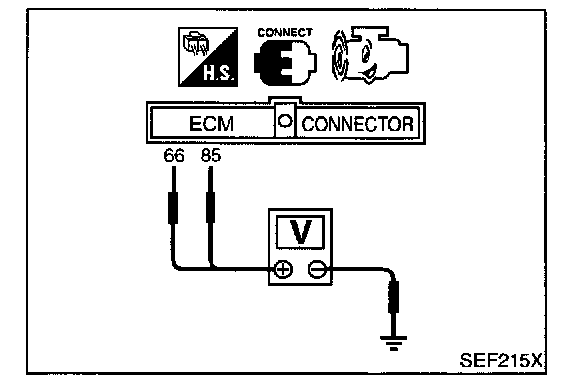

2. Check voltage between ECM terminals 66, 85 and engine ground under the following conditions.

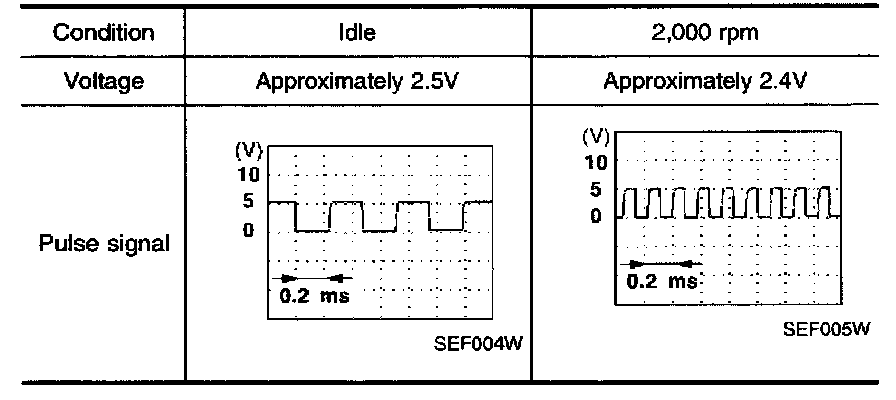

Terminal 66 (or 75) and engine ground

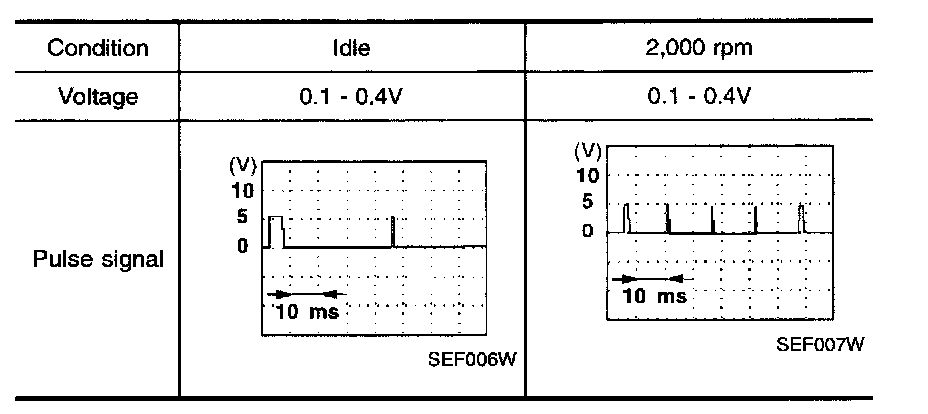

Terminal 85 and engine ground
If NG, replace distributor assembly with camshaft position sensor.
