Component Inspection

1. Disconnect power steering oil pressure switch harness connector then start engine.

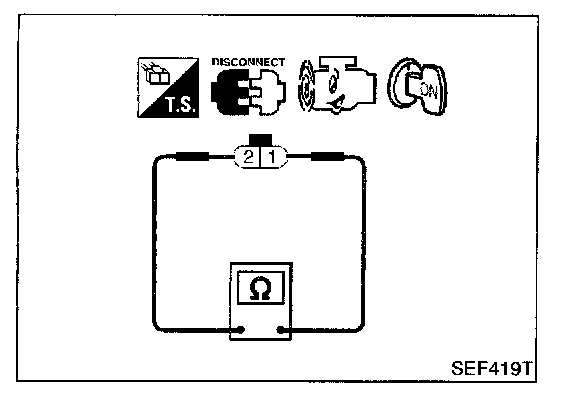

2. Check continuity between terminals 1 and 2.
If NG, replace power steering oil pressure switch.
