Electrical Load Signal

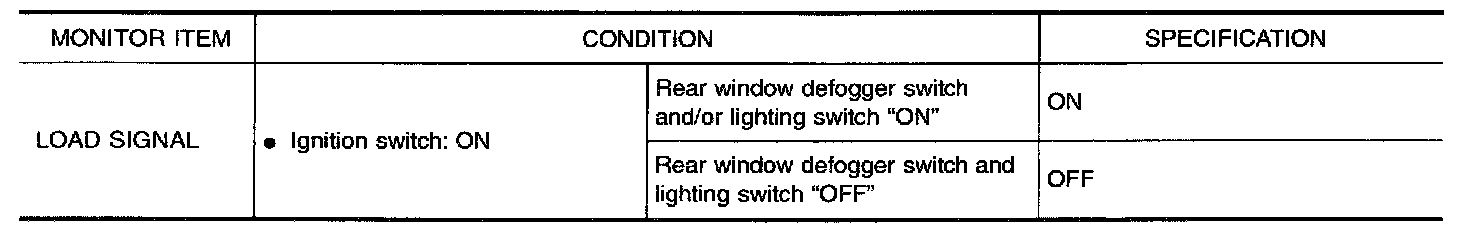

CONSULT-II Reference Value in Data Monitor Mode
Specification data are reference values

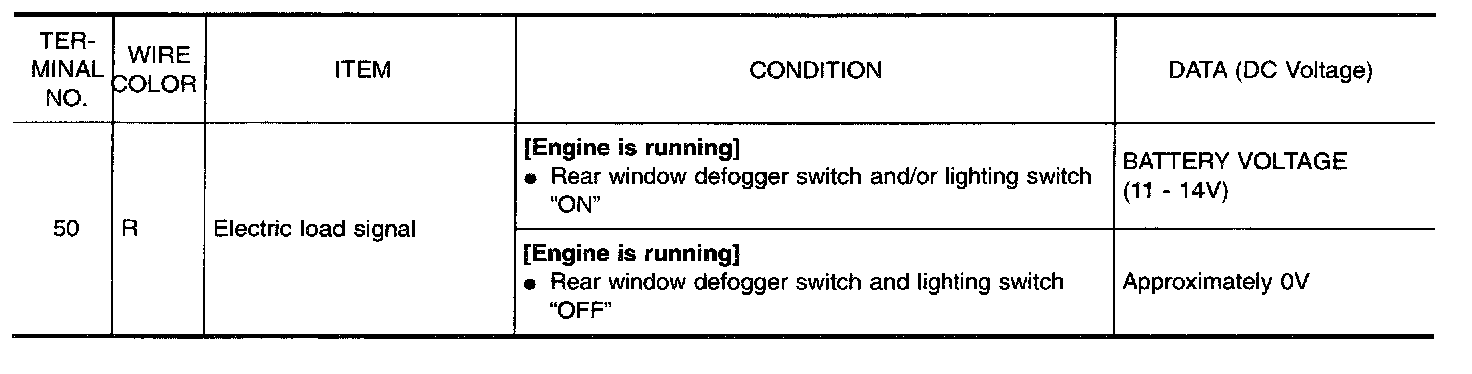

ECM Terminals and Reference Value
Specification data are reference values and are measured between each terminal and 48 (ECM ground).

EC-LOAD-01:

EC-LOAD-01 - Connector Views:

EC-LOAD-02:

EC-LOAD-02 - Connector Views:

WIRING DIAGRAM

M6,E75 Connector Views:

M1,M2,M3,M4,M5,B1,E71,E72,E73 Connector Views:

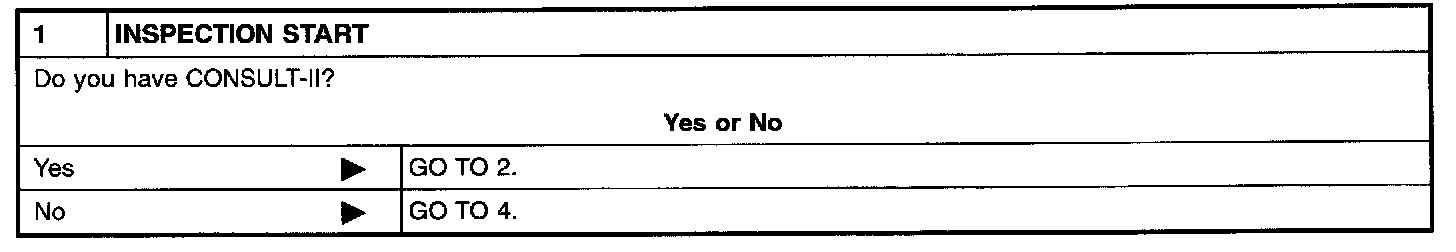

Step 1:

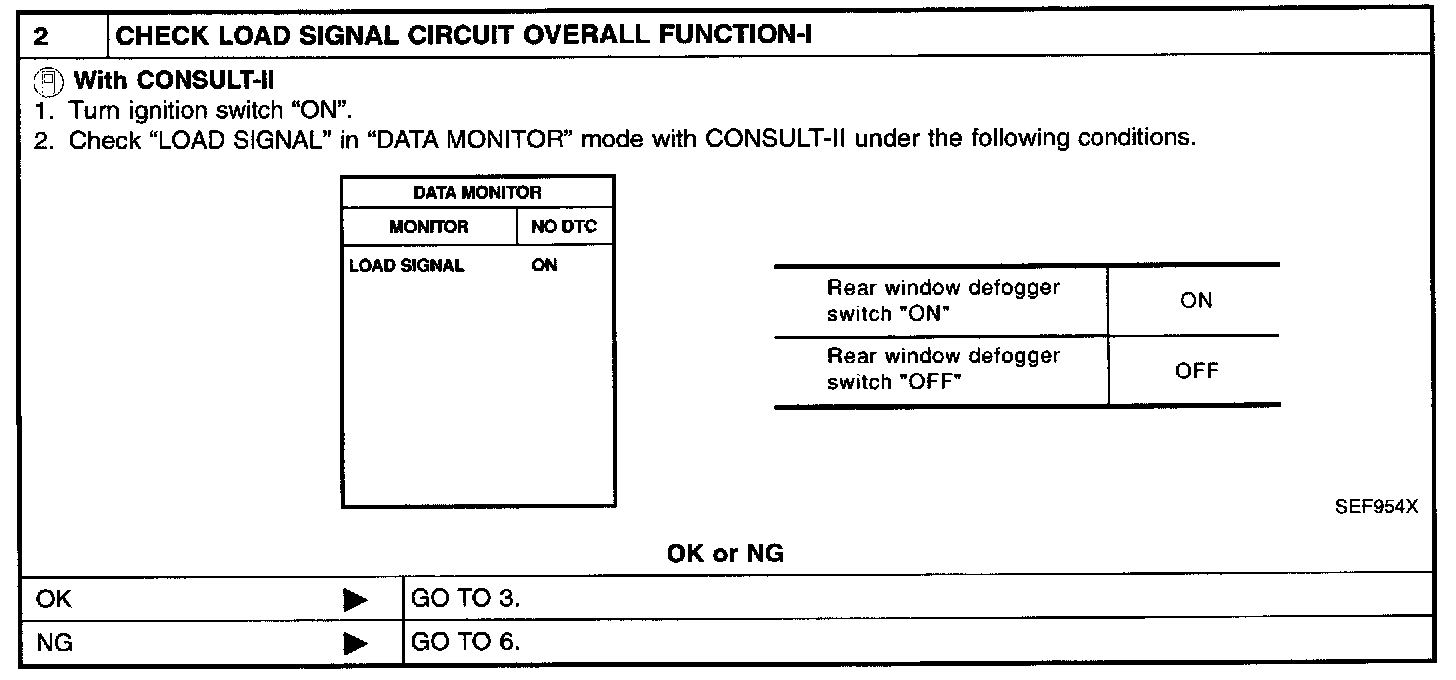

Step 2:

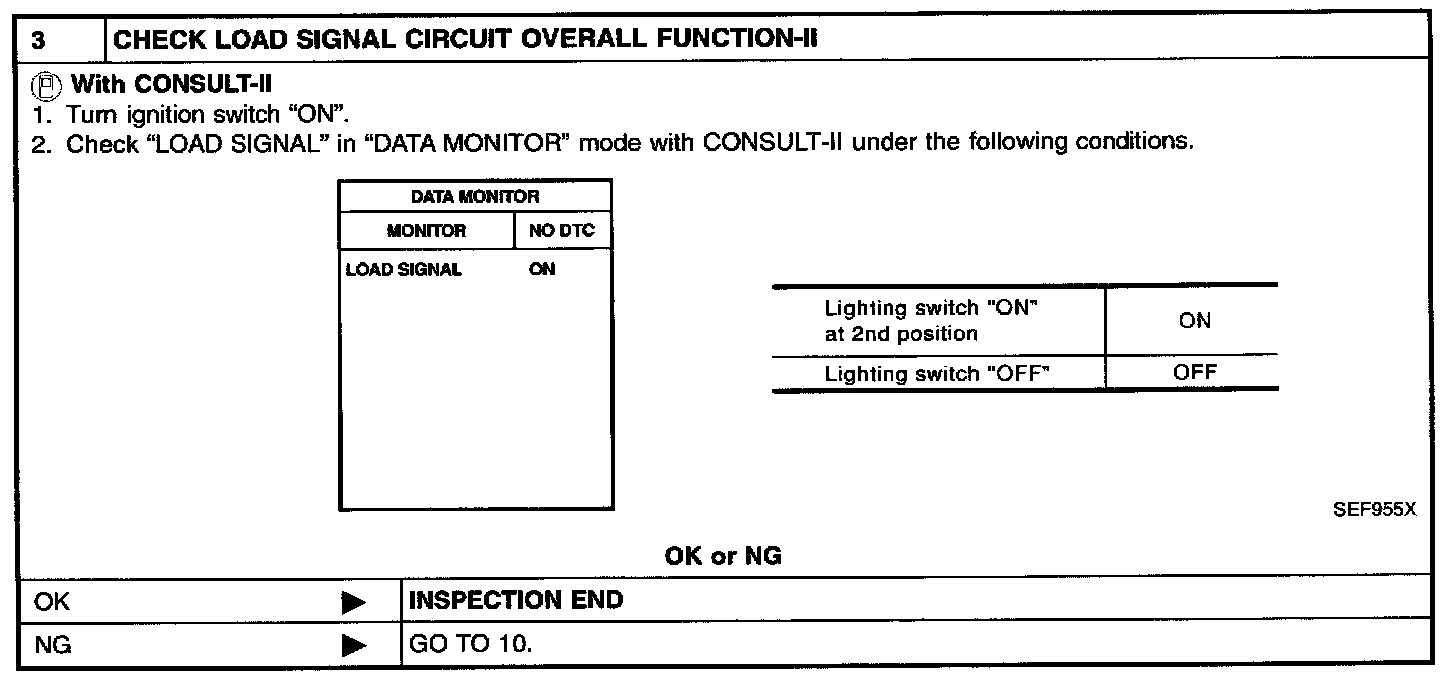

Step 3:

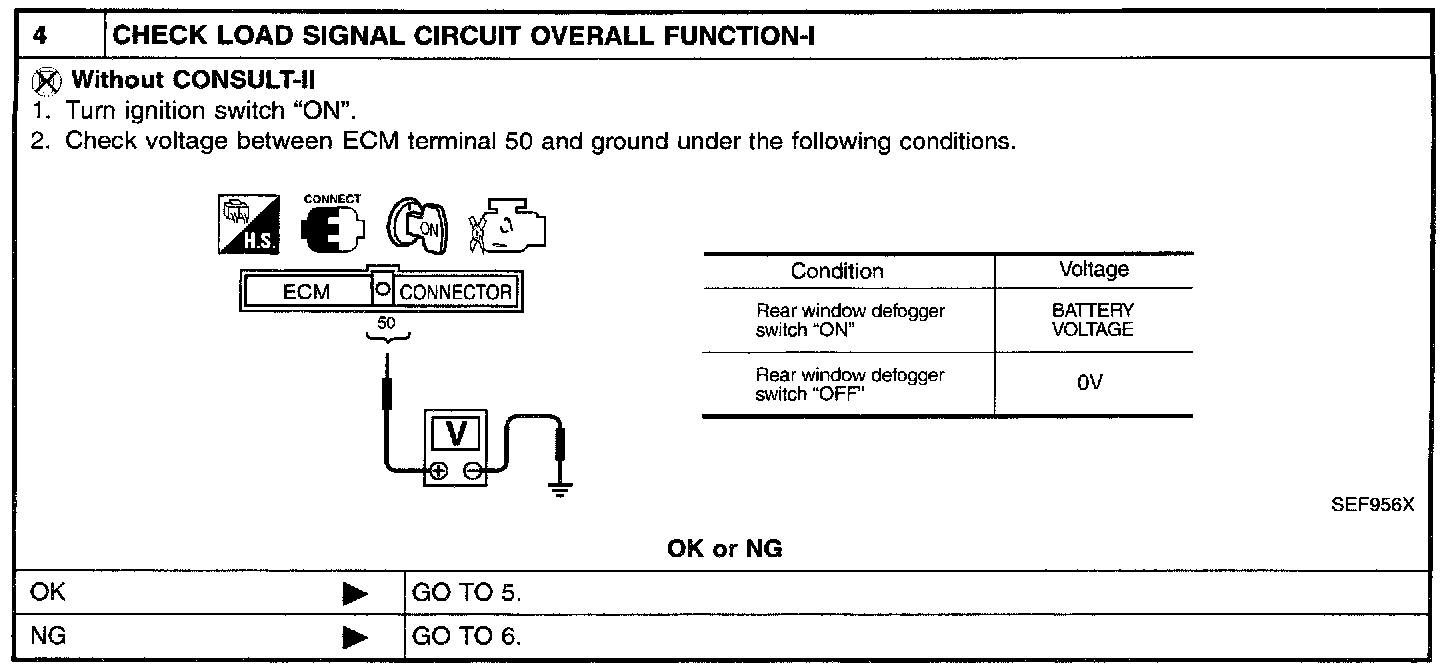

Step 4:

Step 5:

Step 6:

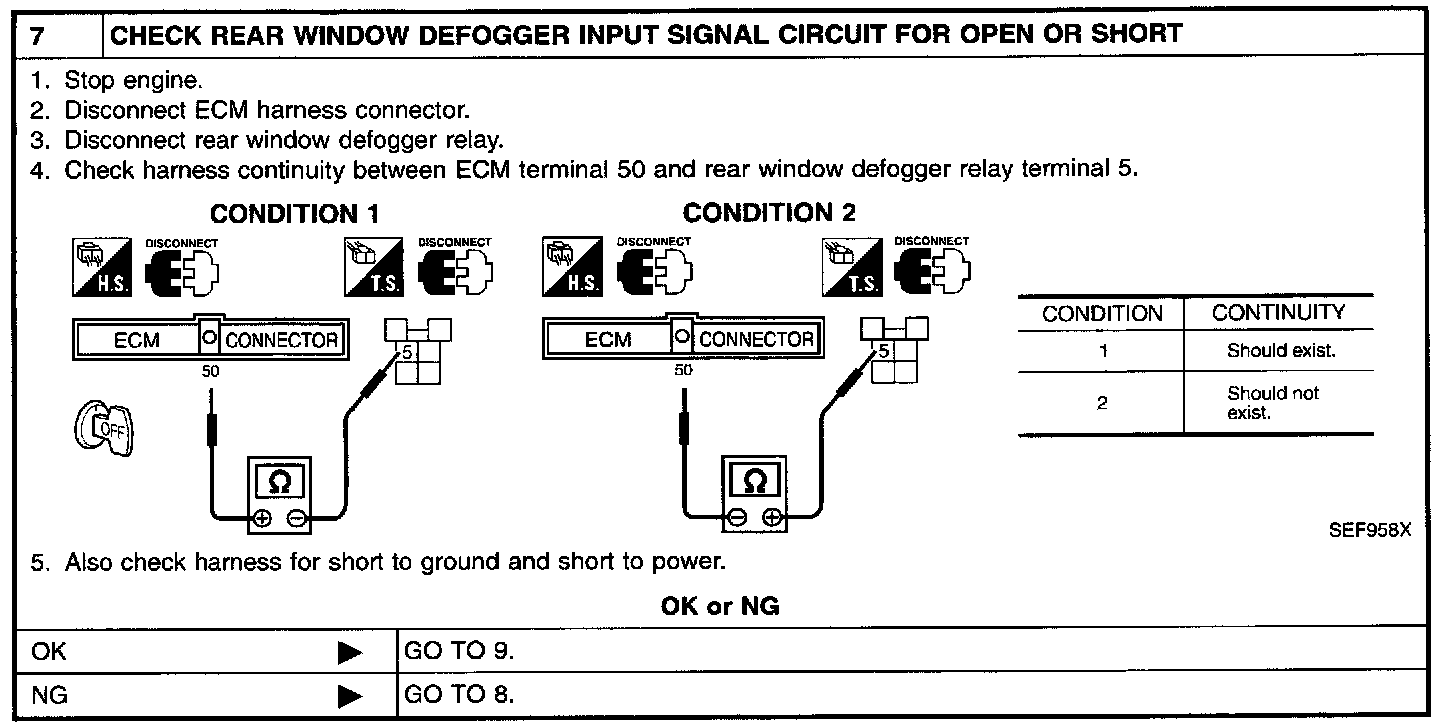

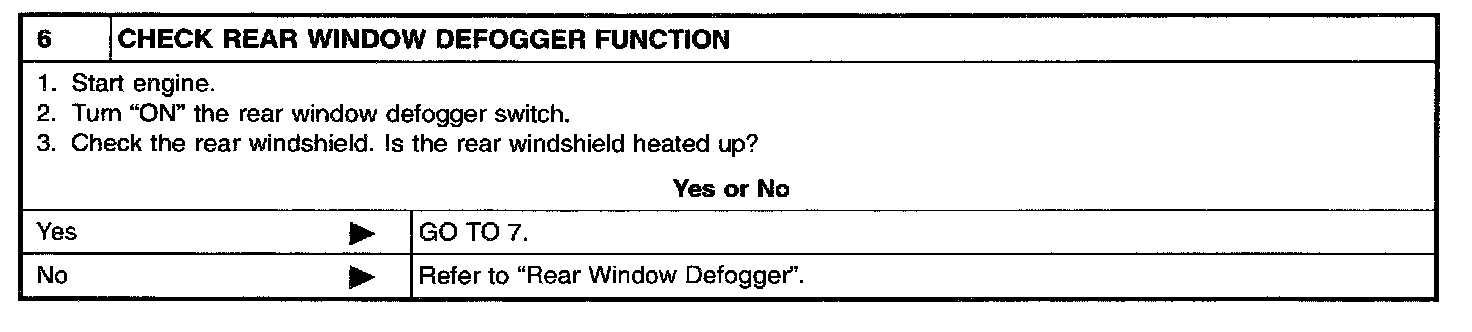

Step 7:

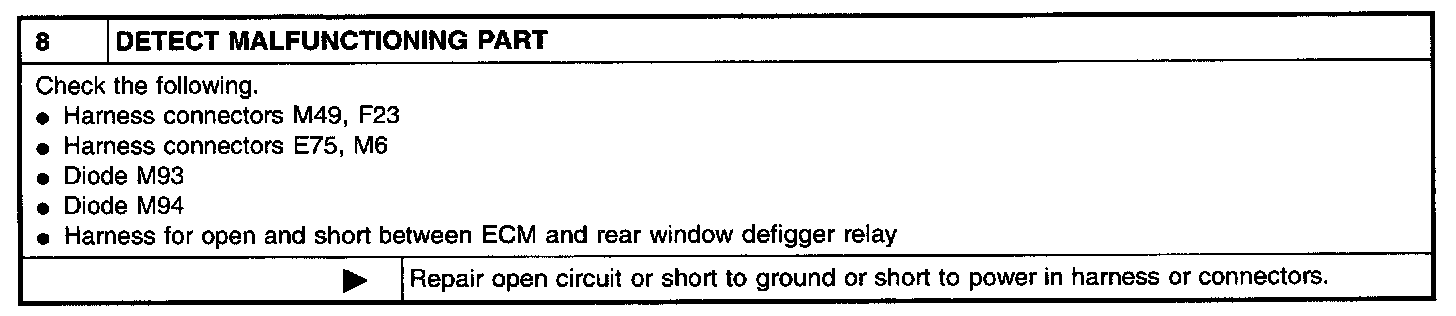

Step 8:

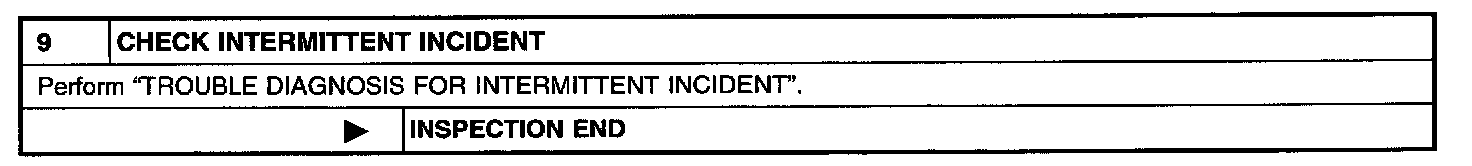

Step 9:

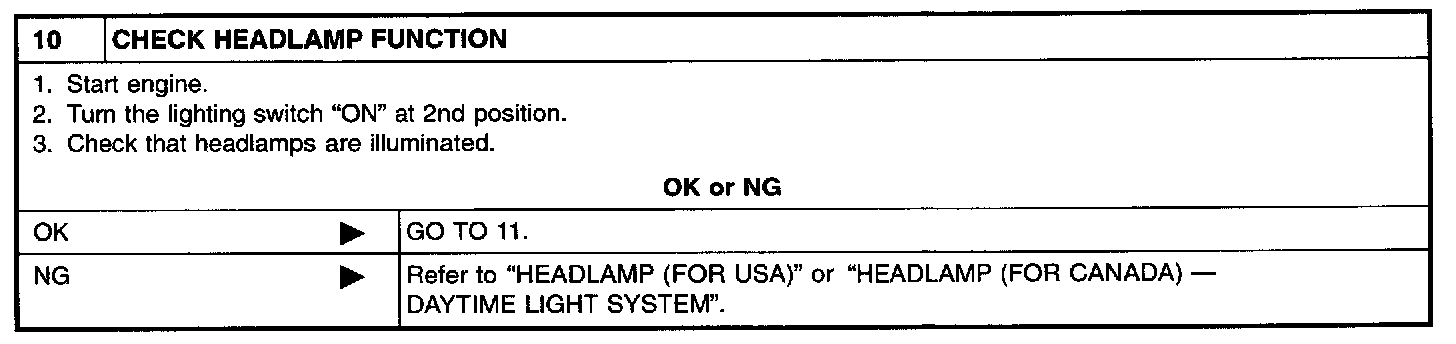

Step 10:

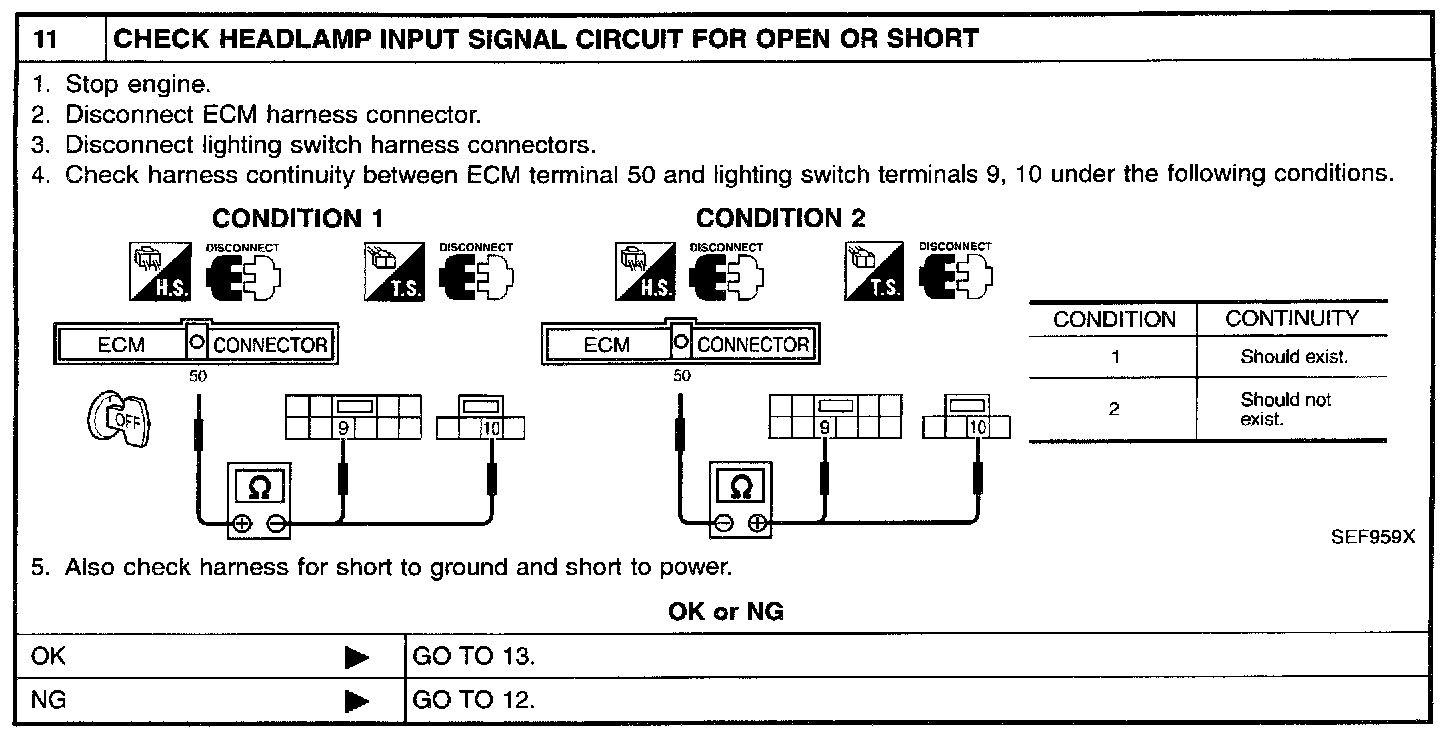

Step 11:

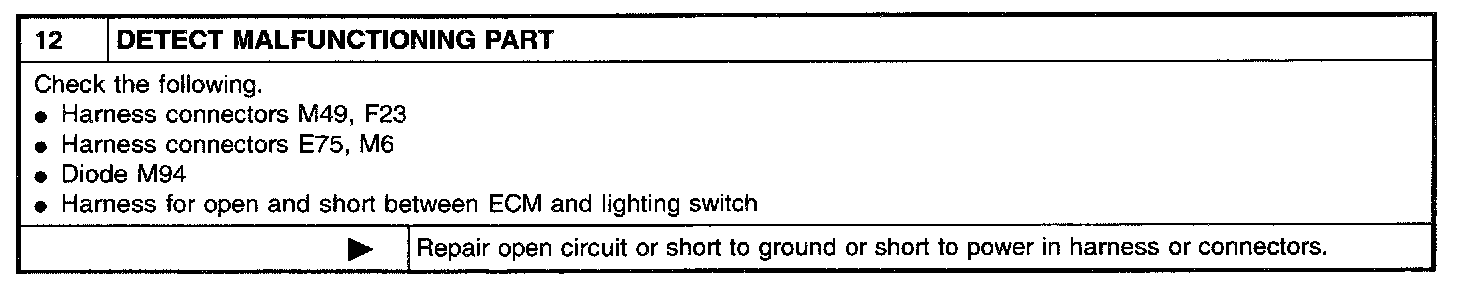

Step 12:

Step 13:

DIAGNOSTIC PROCEDURE
