Start Signal Circuit

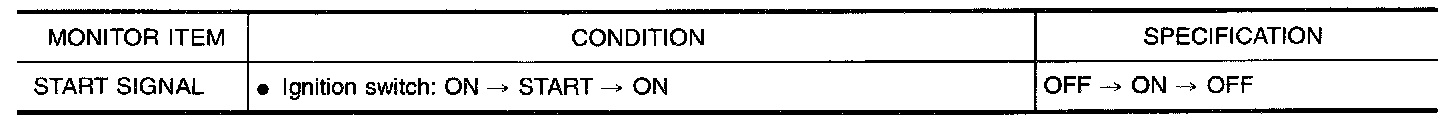

CONSULT-II Reference Value in Data Monitor ModeSpecification data are reference values.

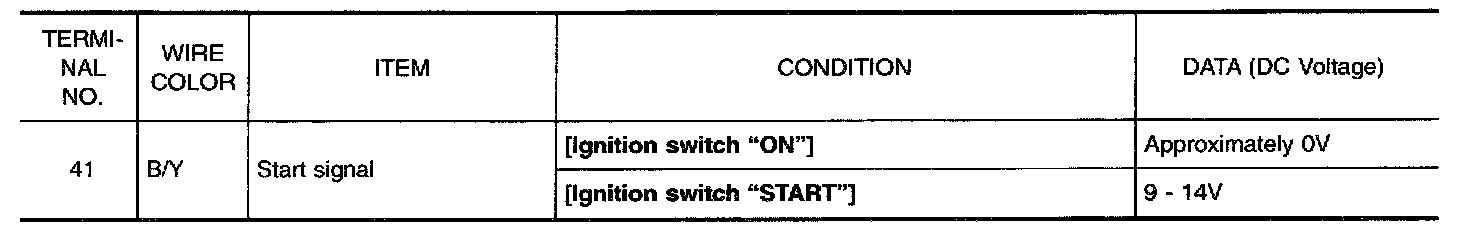

ECM Terminals and Reference ValueSpecification data are reference values and are measured between each terminal and 48 (ECM ground).
EC-S/SIG-01:

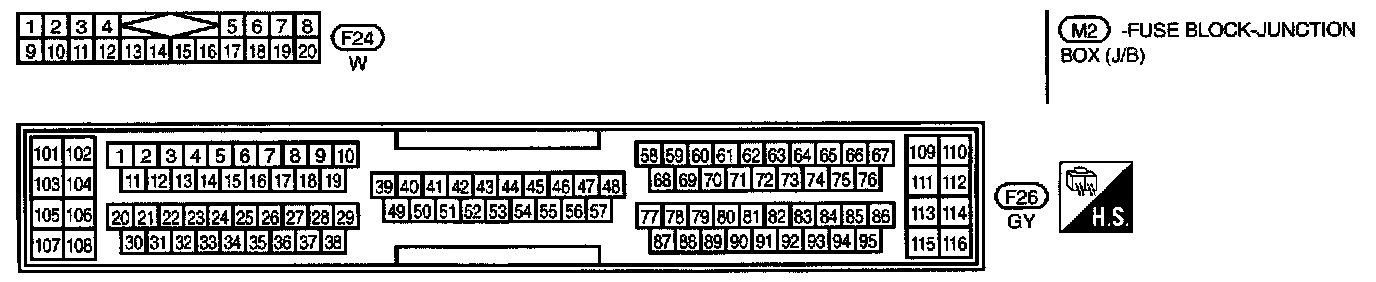

EC-S/SIG-01 - Connector Views:

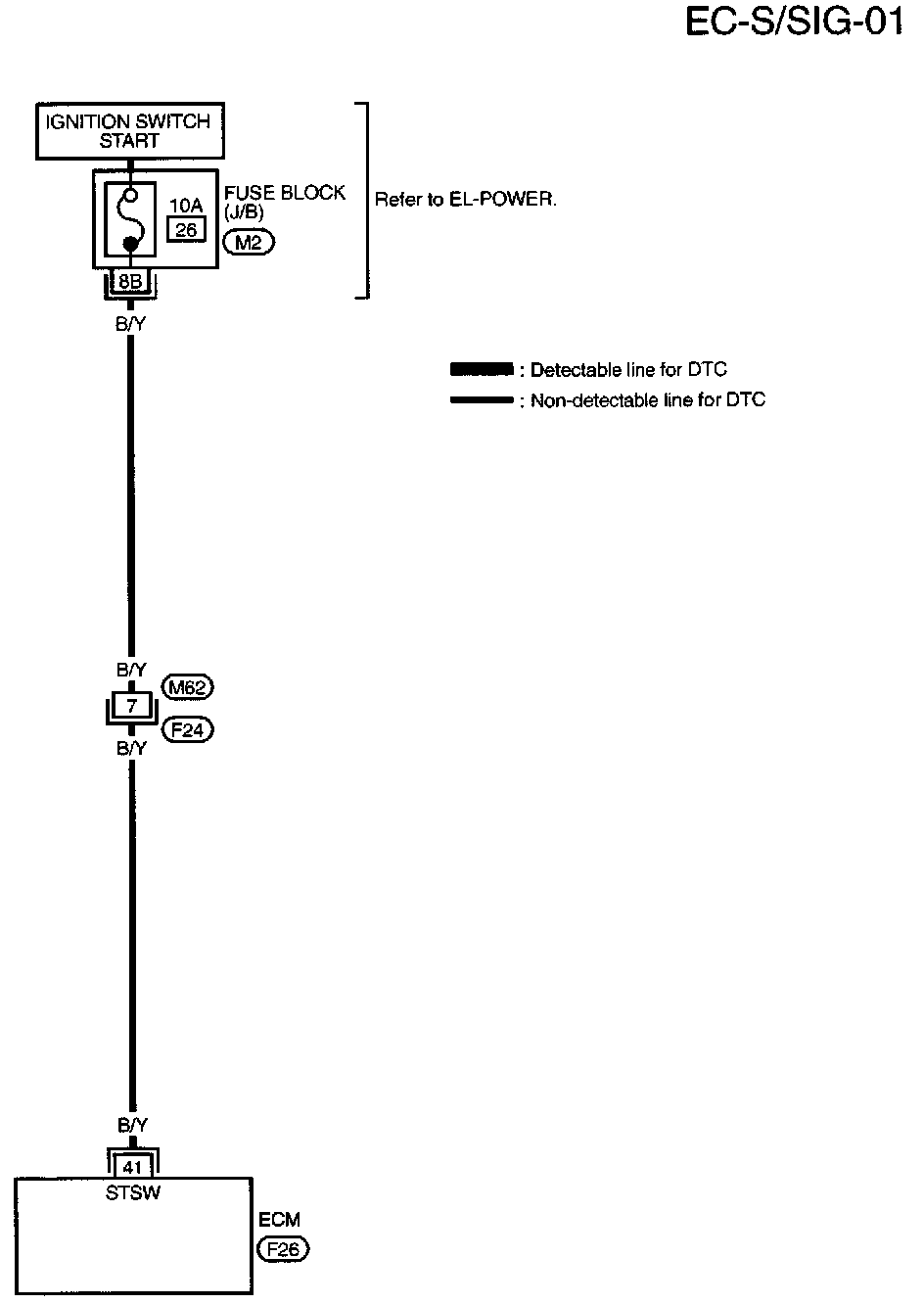

WIRING DIAGRAMM1,M2,M3,M4,M5,B1,E71,E72,E73 Connector Views:
Step 1:
Step 2:

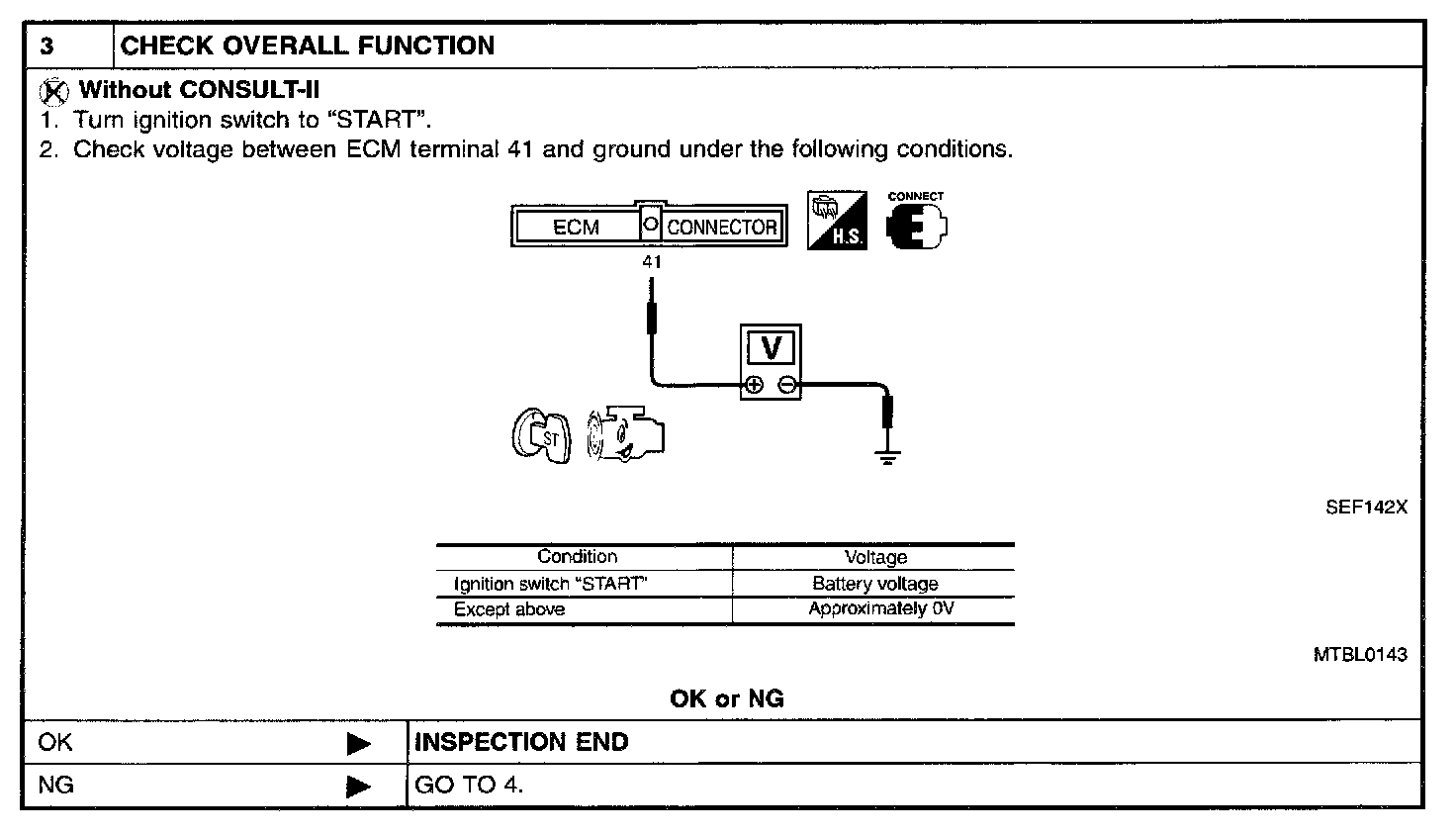

Step 3:
Step 4:

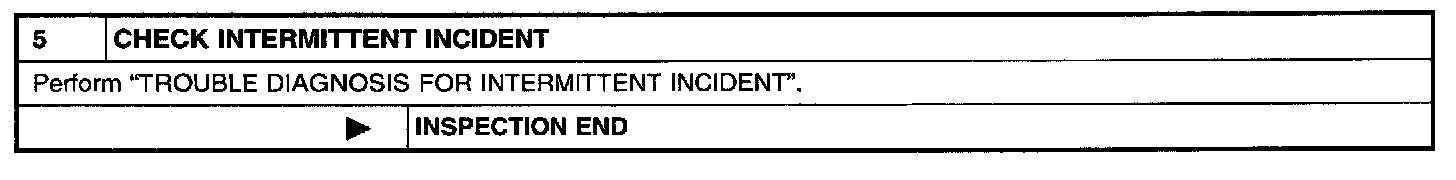

Step 5:
DIAGNOSTIC PROCEDURE
