Computers and Control Systems: Tools and Equipment

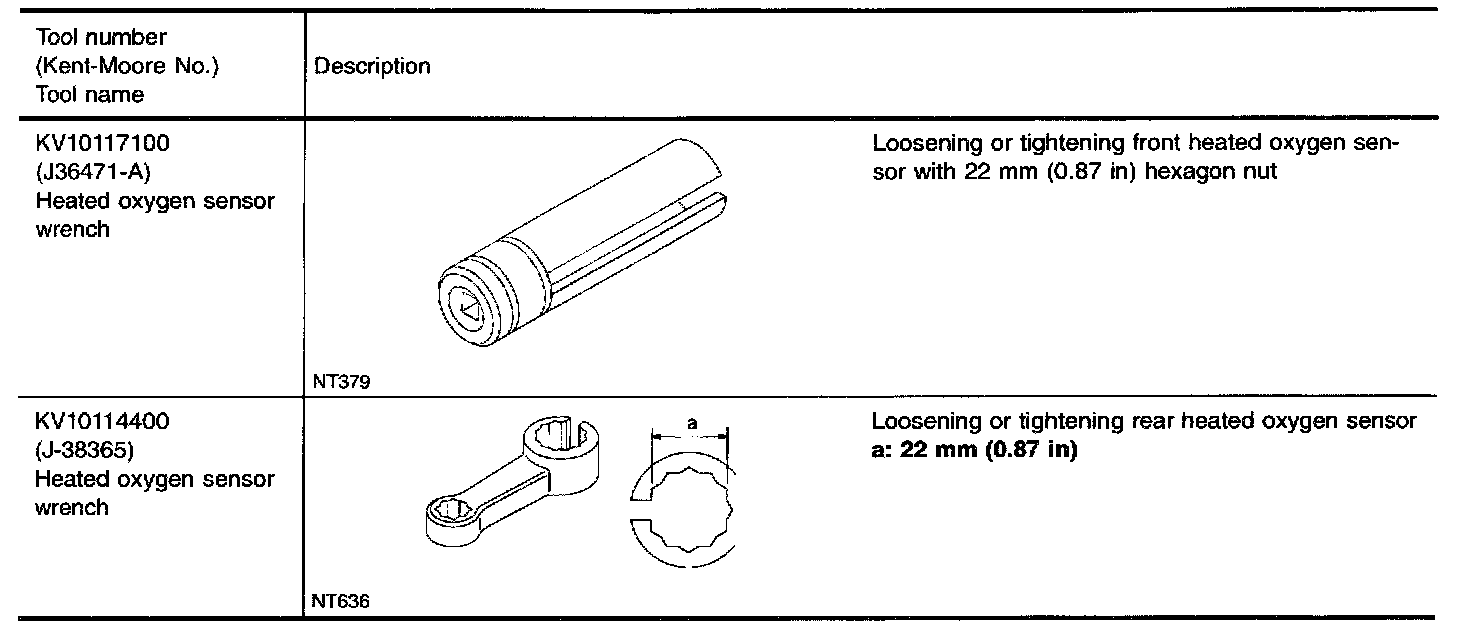

Special Service Tools:

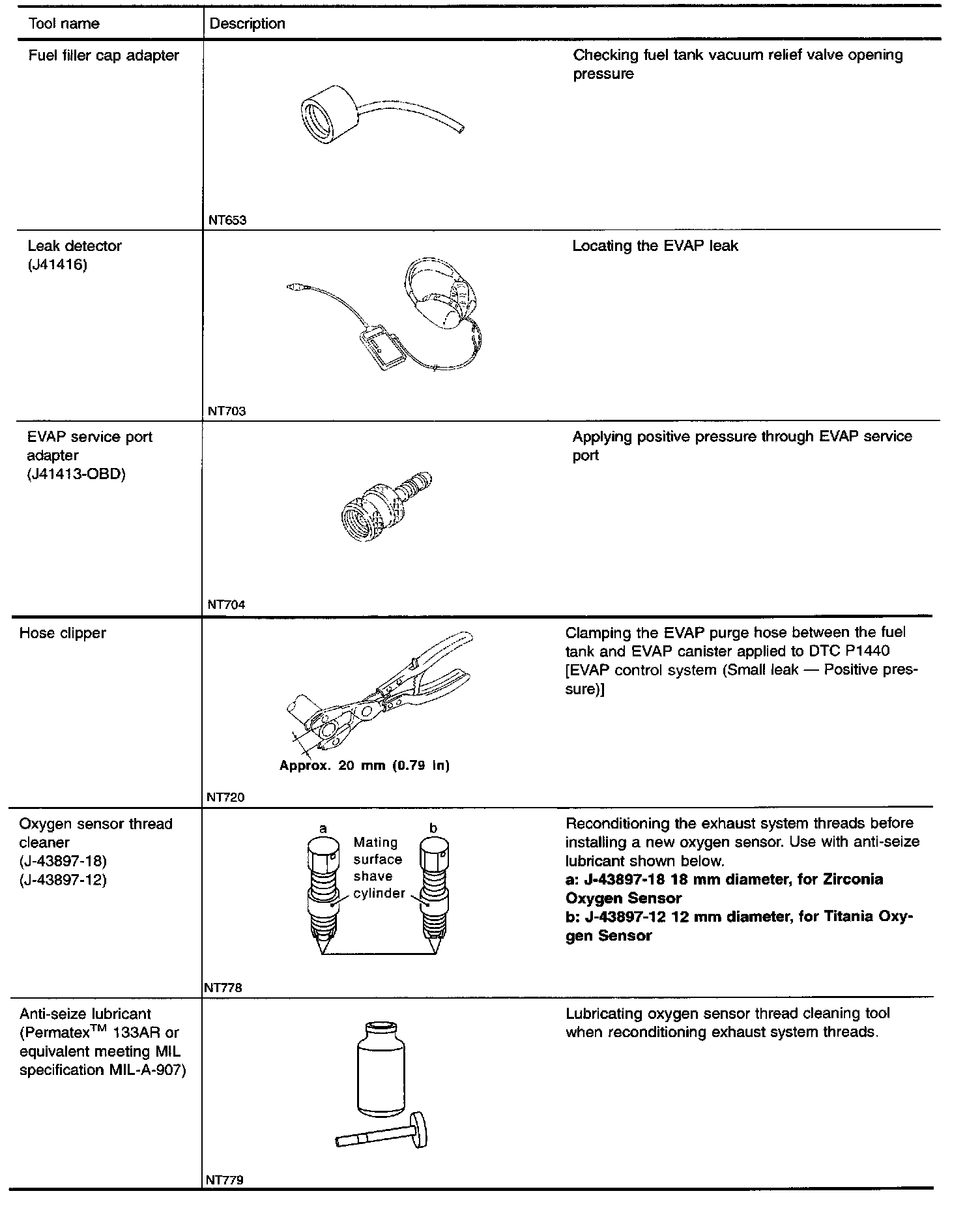

Commerical Service Tools:




The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
